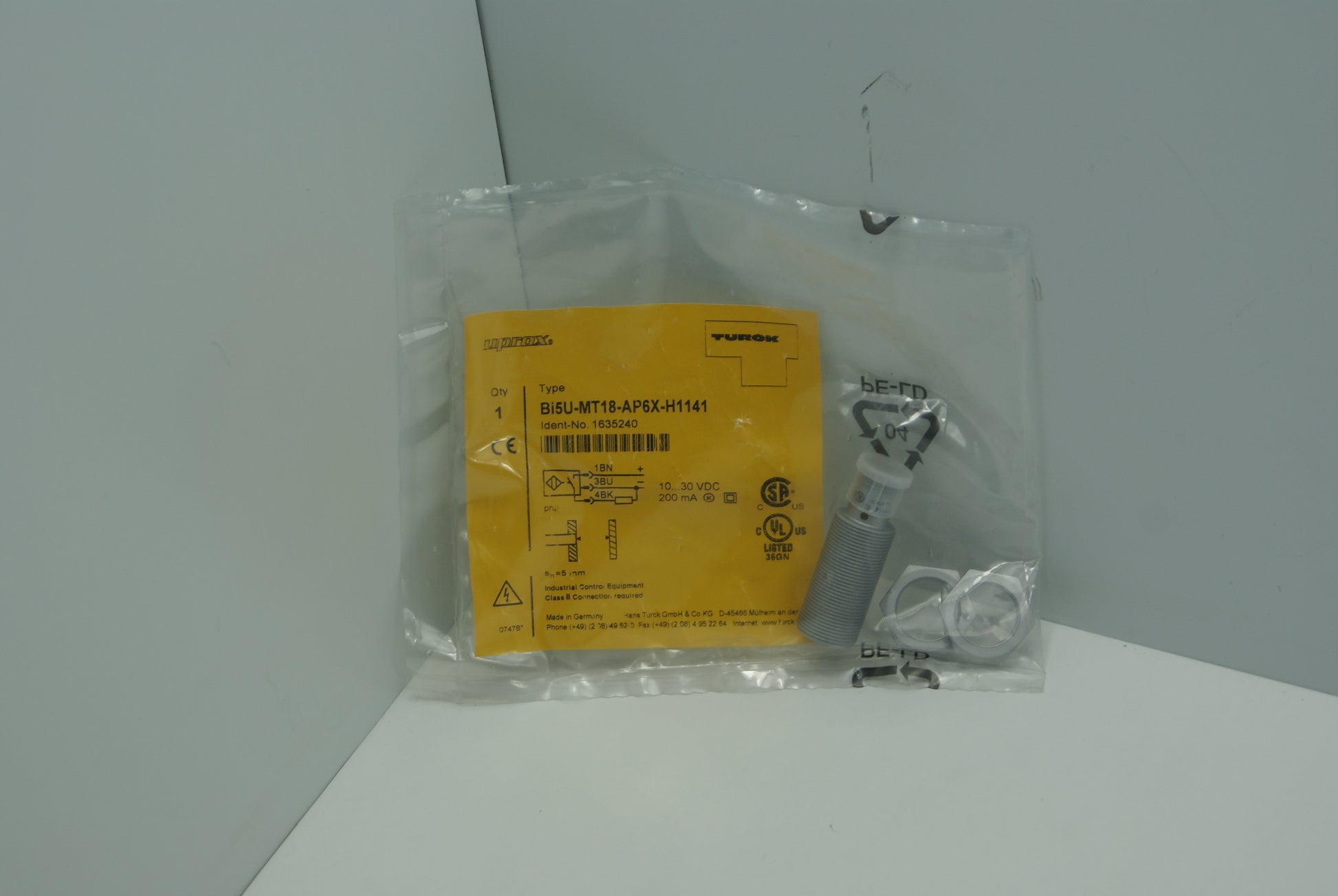

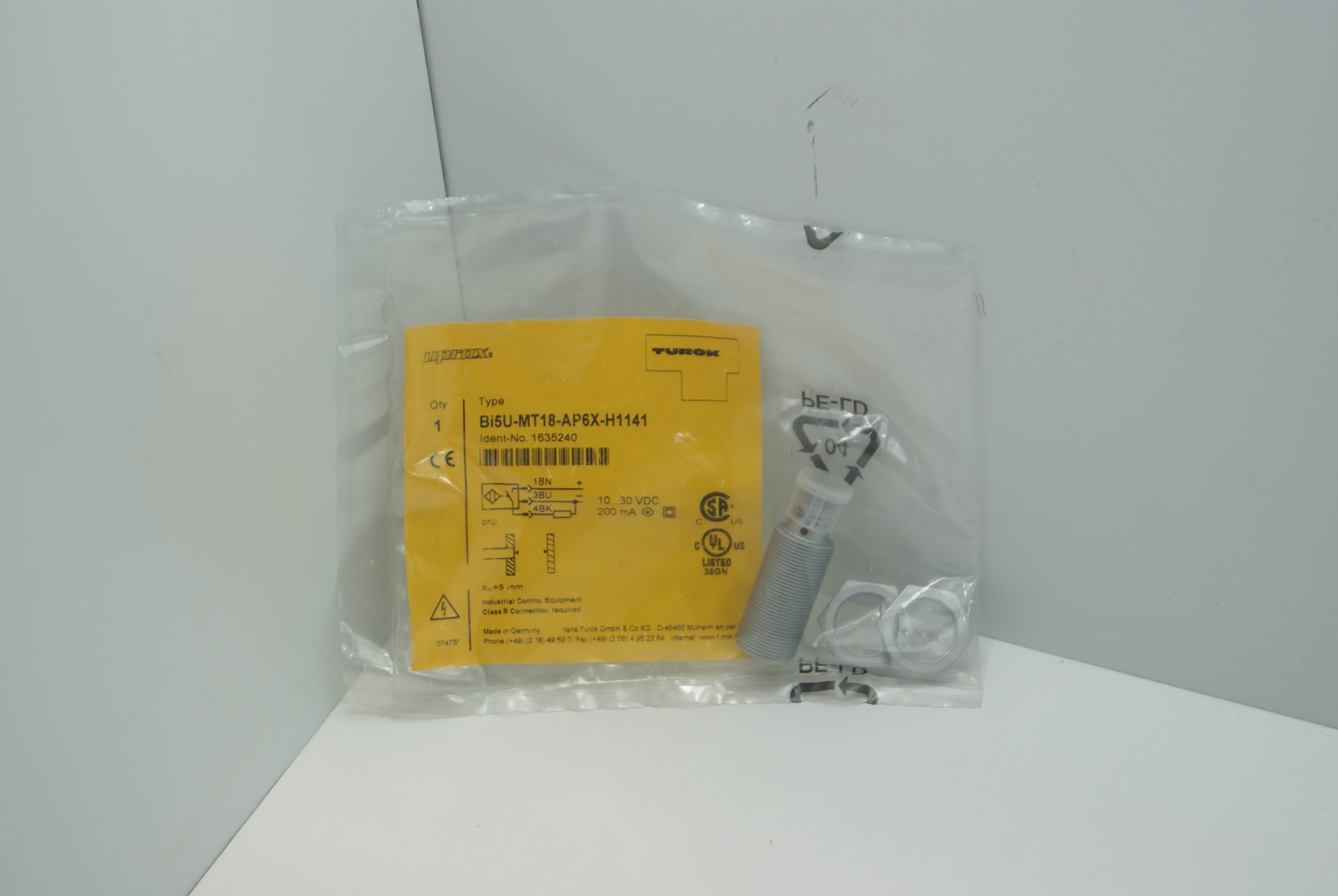

Inductive Sensor Turck BI5U-MT18-AP6X-H1141

Inductive Sensor Turck BI5U-MT18-AP6X-H1141

Technical data

Type BI5U-MT18-AP6X-H1141

ID 1635240

General data

Rated switching distance 5 mm

Mounting conditions Flush

Secured operating distance ≤ (0.81 × Sn) mm

Repeat accuracy ≤ 2 % of full scale

Temperature drift ≤ ±10 % ≤ ± 15 %, ≤ ‐25 °C v ≥ +70 °C

Hysteresis 3…15  %

Electrical data Operating voltage 10…30  VDC

Residual ripple ≤ 10 % Uss

DC rated operational current ≤ 200 mA

No-load current 25  mA

Residual current ≤ 0.1 mA

Isolation test voltage ≤ 0.5 kV

Short-circuit protection yes / Cyclic

Voltage drop at Ie ≤ 1.8 V

Wire breakage/Reverse polarity protection yes / Complete

Output function 3-wire, NO contact, PNP

DC field stability 300 mT

AC field stability 300 mTSS

Insulation class ÷

Switching frequency 1.5

Mechanical data

Design Threaded barrel, M18 x 1

Dimensions 52  mm

Housing material Metal, CuZn, PTFE-coated

Active area material Plastic, PBT, PTFE-coated

Max. tightening torque of housing nut 15 Nm

Electrical connection Connector, M12 × 1

Environmental conditions

Ambient temperature -30…+85  °C

Vibration resistance 55 Hz (1 mm)

Shock resistance 30  g (11 ms)

Protection class IP68

MTTF 874  years acc. to SN 29500 (Ed. 99) 40 °C

Switching state LED, Yellow
