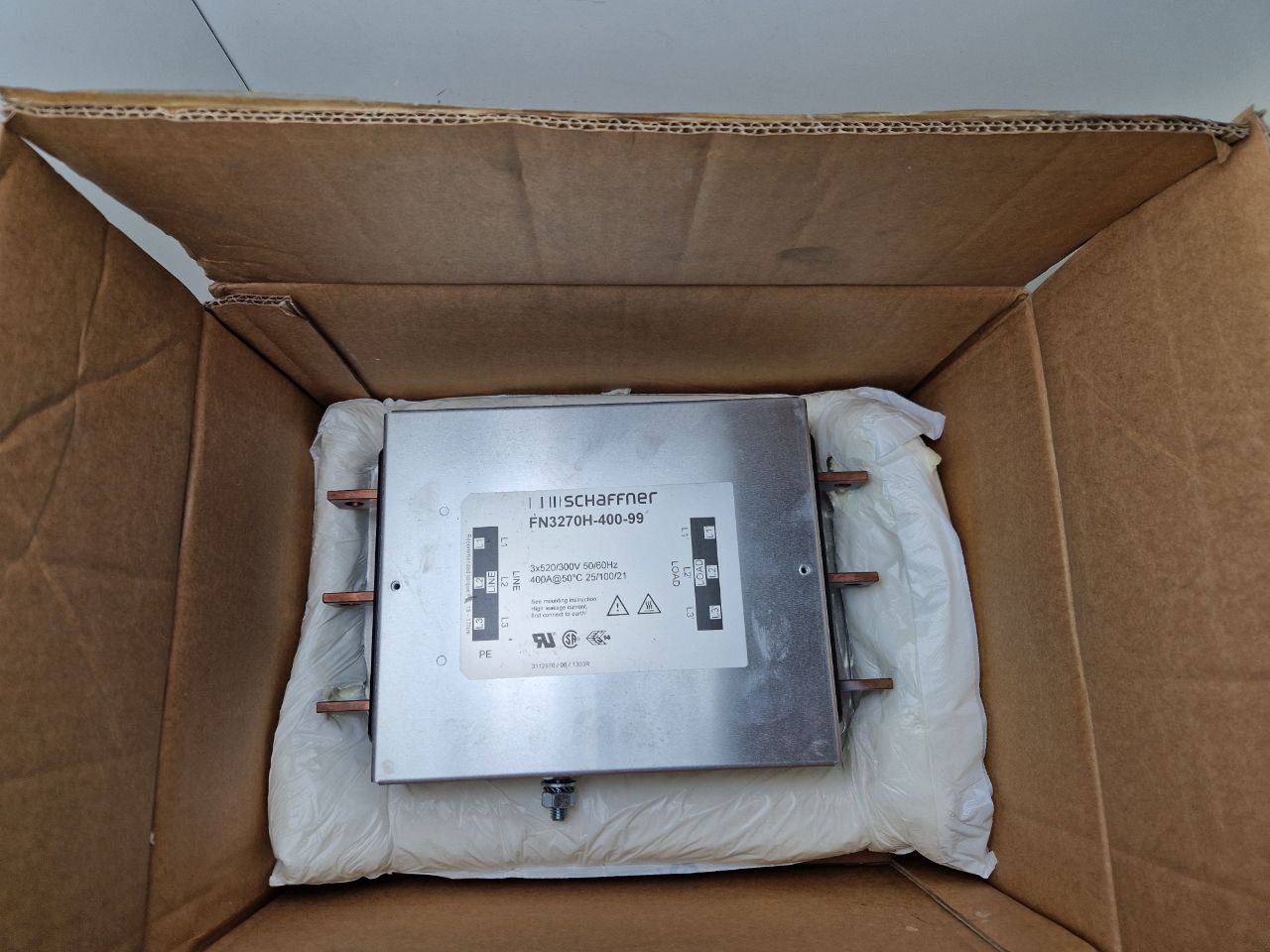

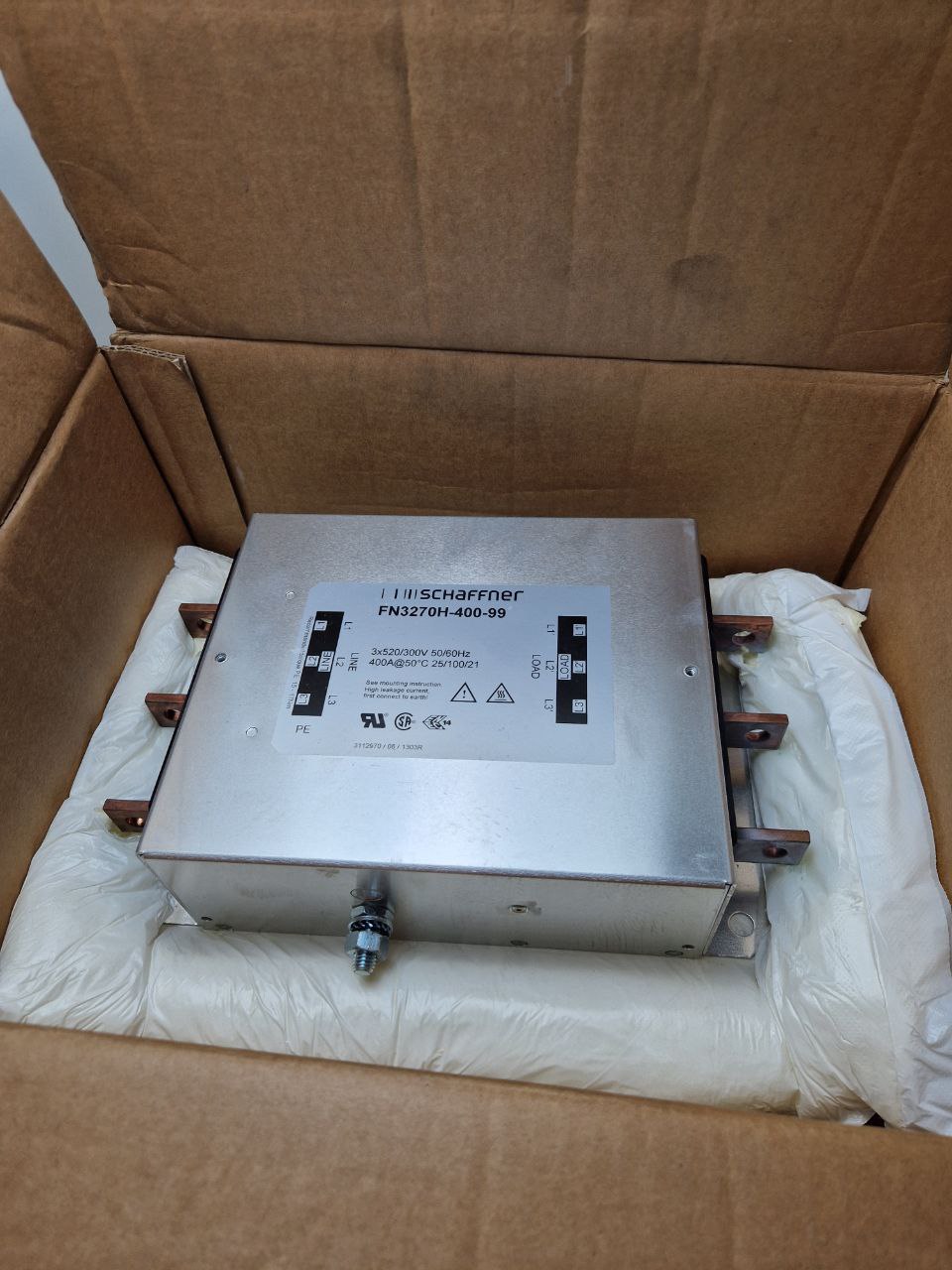

SCHAFFNER FN 3270H-400-99, Compact EMC filter for industrial motor drive applications (Request price)
Mat. No.: 806152
Part No.: 3112970
Code: 201303R
Maximum continuous operating voltage
3x520/300 VAC
Rated operating voltage
480 VAC +10% possible
Rated currents
10 to 1000 A at 50°C
Overload capacity
4x rated inrush current,
1.5 times rated current for 1 minute, once per hour
Operating frequency
DC to 60 Hz
High-voltage test voltage
P –> E 2750 VDC for 2 sec.
P –> P 2250 VDC for 2 sec.
Temperature range (operation and storage)
-25°С to +100°С (25/100/21)
Protection class
IP 20 (10 to 100 A)
IP 00 (150 to 1000 A)
Flammability according to
UL 94 V-0
Design according to
UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 MTBF (Mil-HB-217F) >320,000 h at 50°C/480 V.

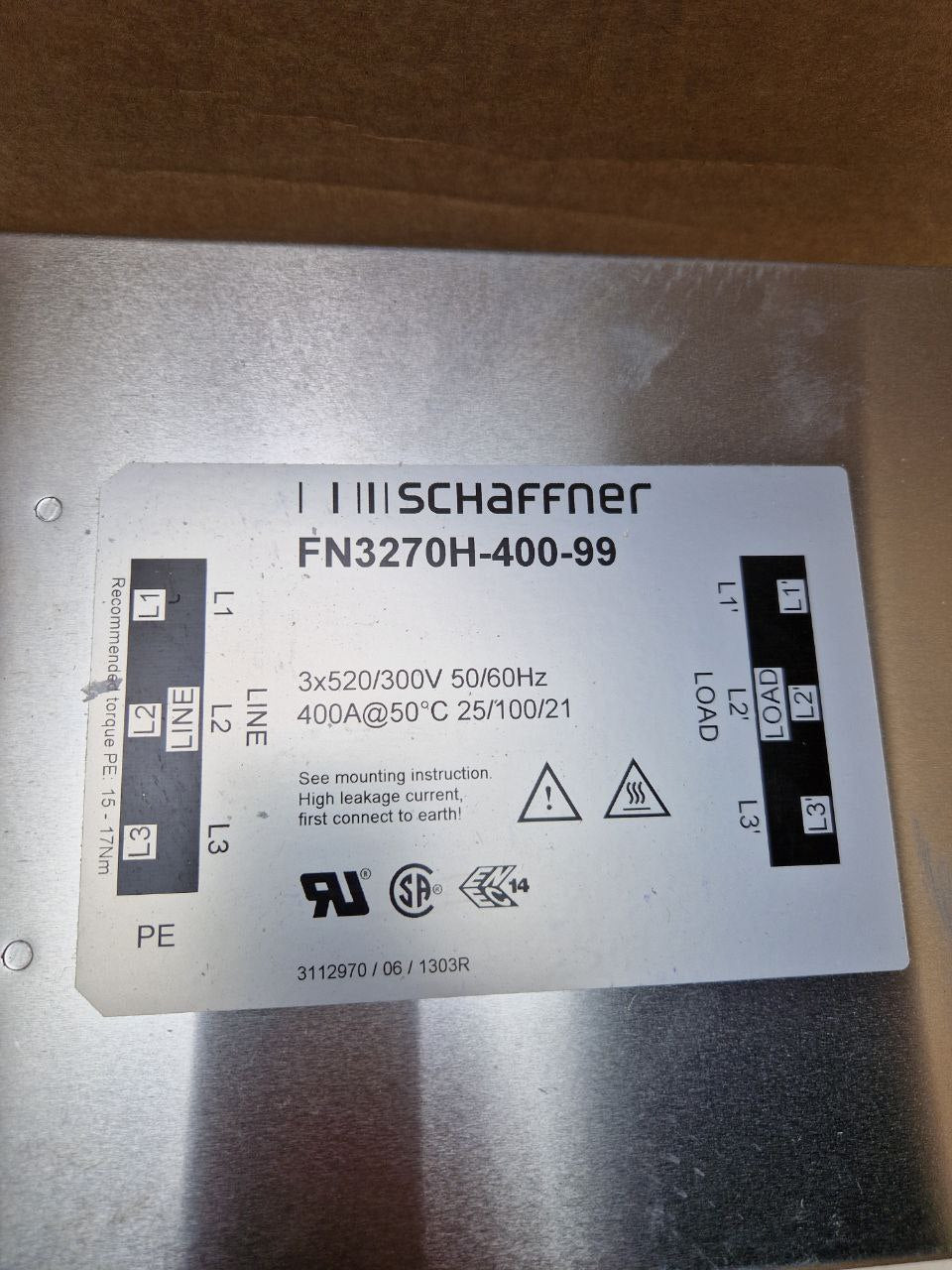

400A at 50°С 25/100/21
3112970/06H303R 2480527423
Shipping weight: 7.00 kg
Product weight: 6.10 kg
Dimensions (length x width x height): 39.00 x 22.00 x 29.00 cm
Weight: 7.0 kg
Price 1.01 = negotiated price
Made in Switzerland.
