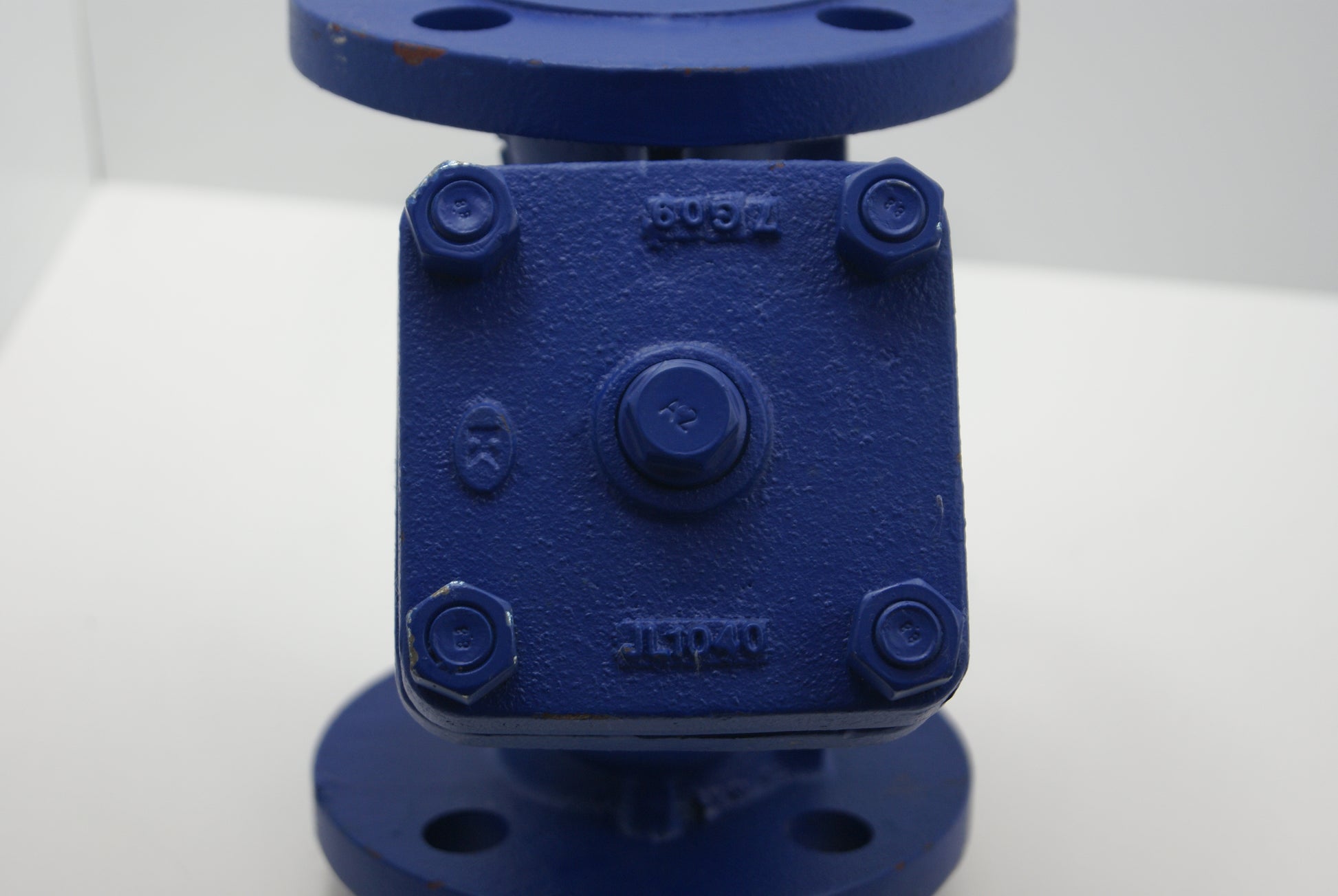

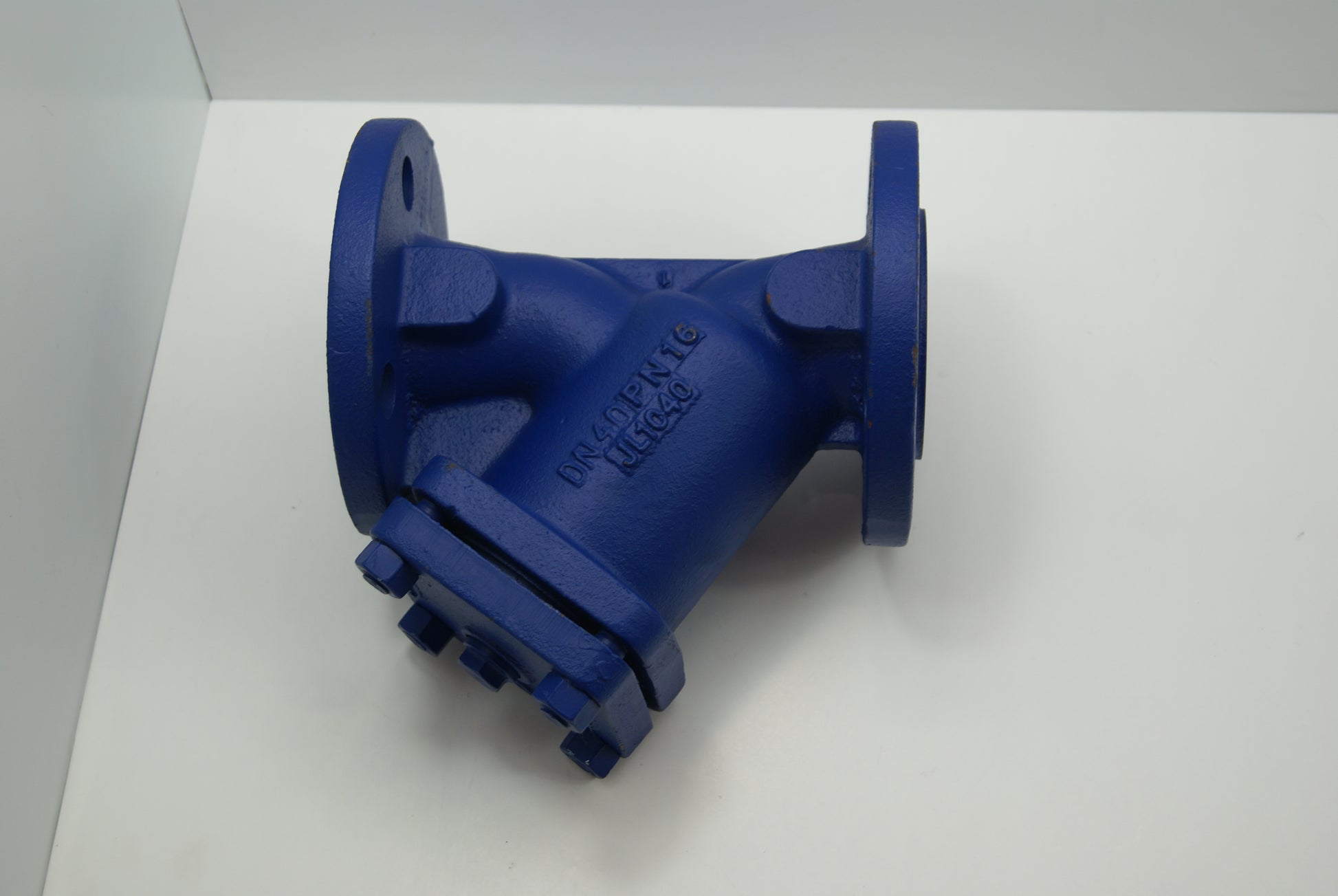

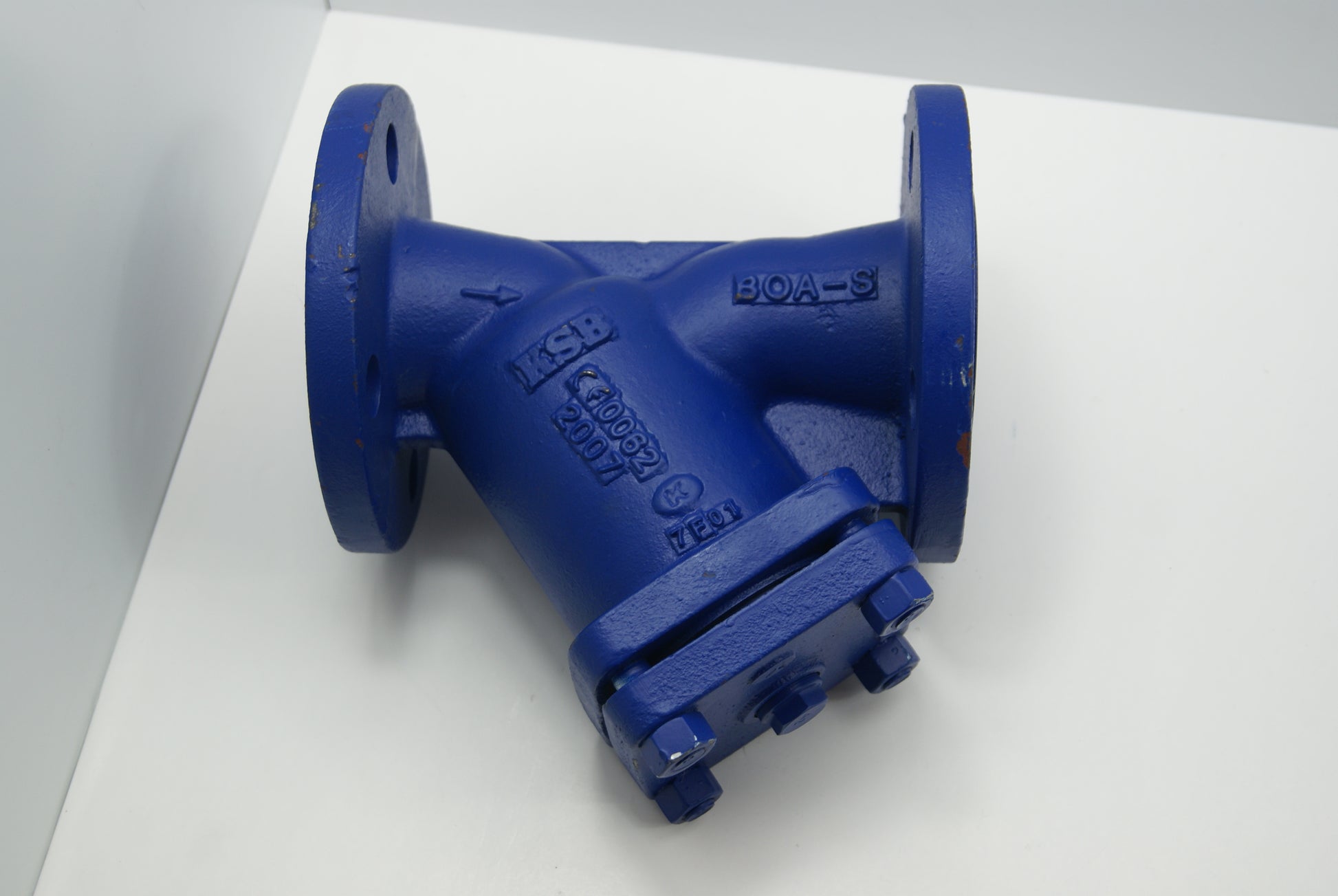

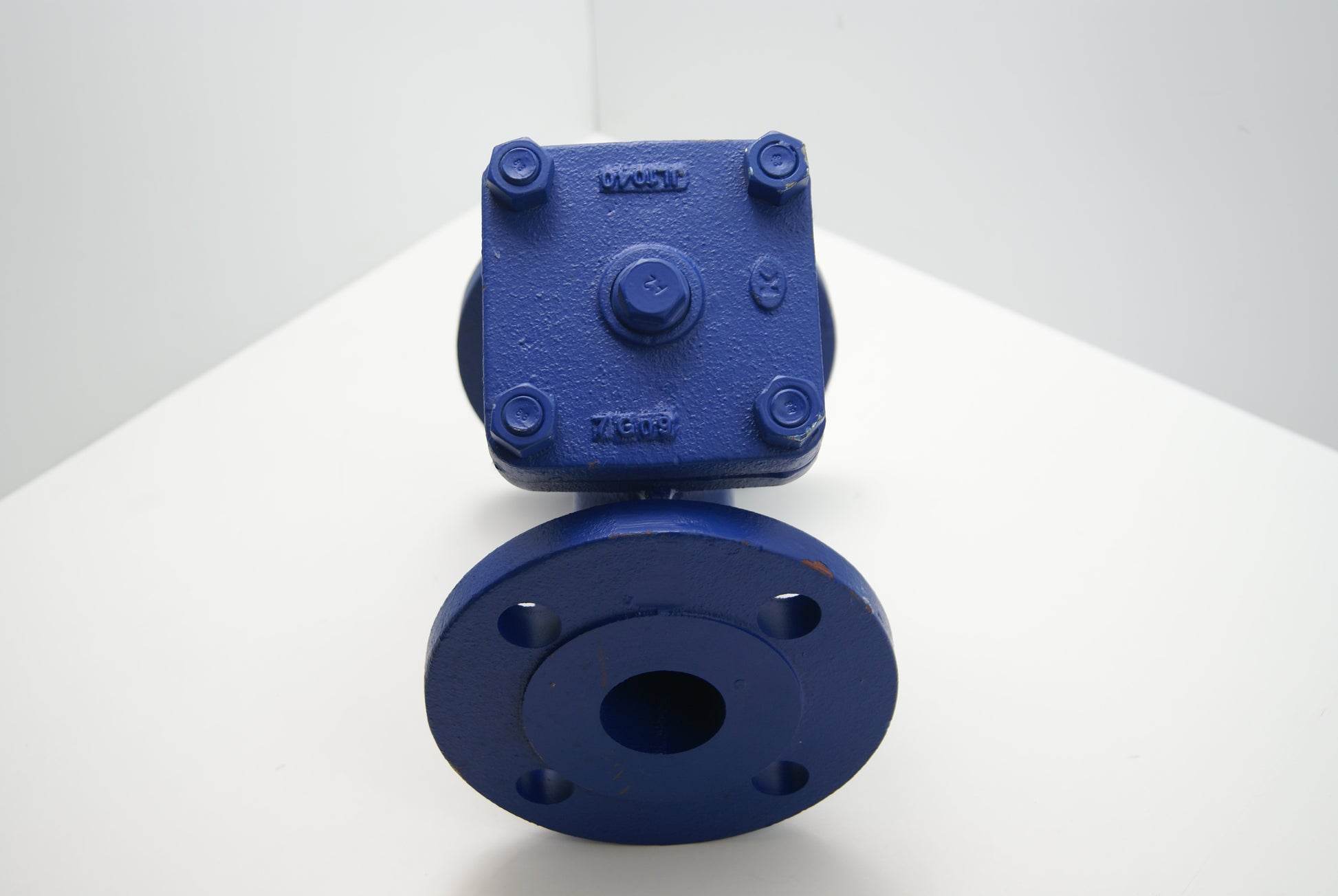

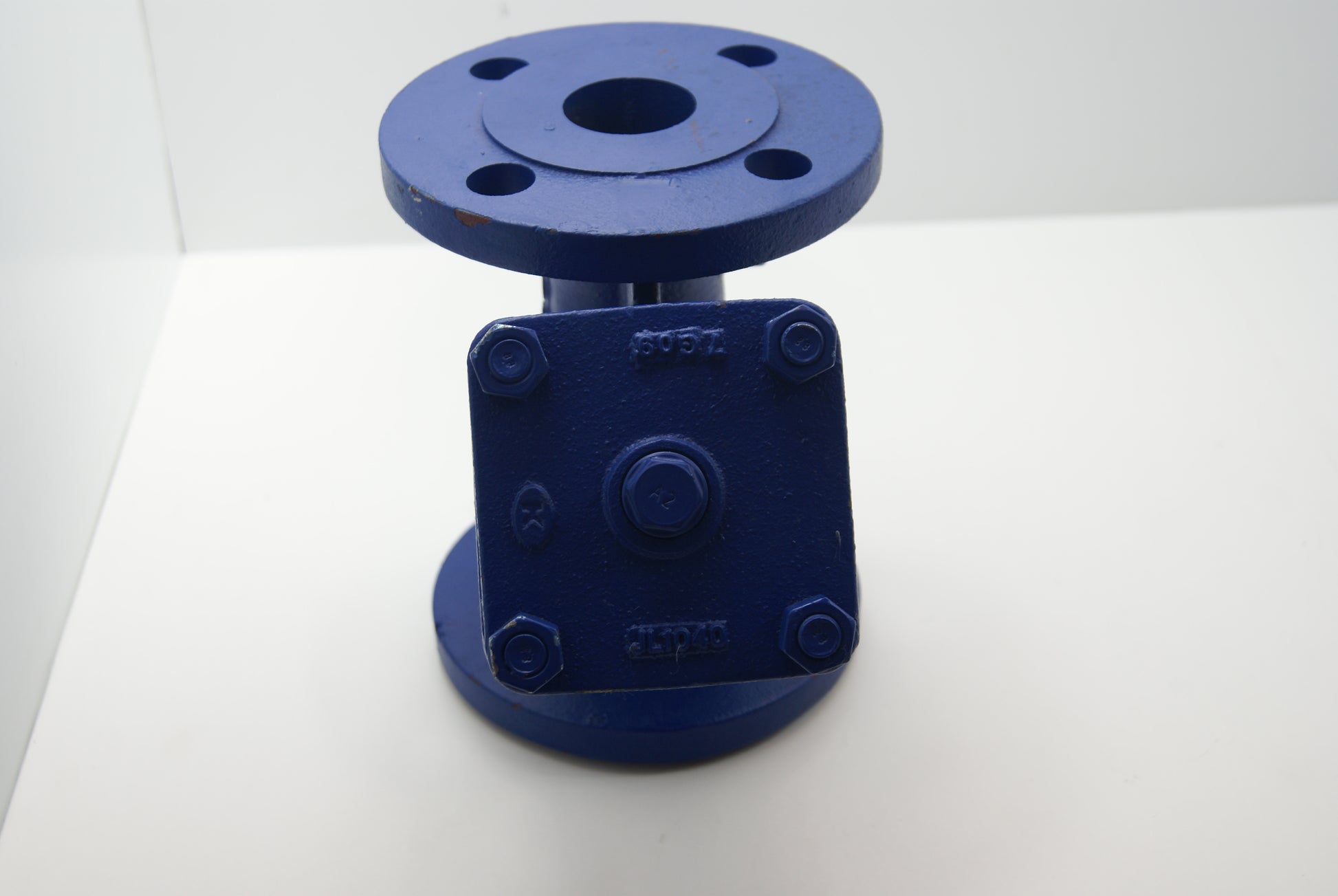

Flanged filter according to DIN / EN with coarse or fine screen, all nominal diameters with drain plug in the cover, made of gray cast iron or spheroidal graphite cast iron.
Nominal widths: DN 150 – DN 2000 (Larger nominal diameters on request) Length: EN 558 series 20, ISO 5752 series 20, API 609 Table 1 Flange standards: EN 1092 PN 6/10/16, , ASME Class 150, AS/NZS 4087 PN 16 Flange mating surface: EN 1092 form A/B, ASME RF, FF Head flange: EN ISO 5211 Labelling: EN19 Leak test: EN 12266 (leak rate A), ISO 5208, Category 3 Temperature range: -40°C to +200°C (depending on pressure, medium and material) Max. operating pressure: max. 16 bar
