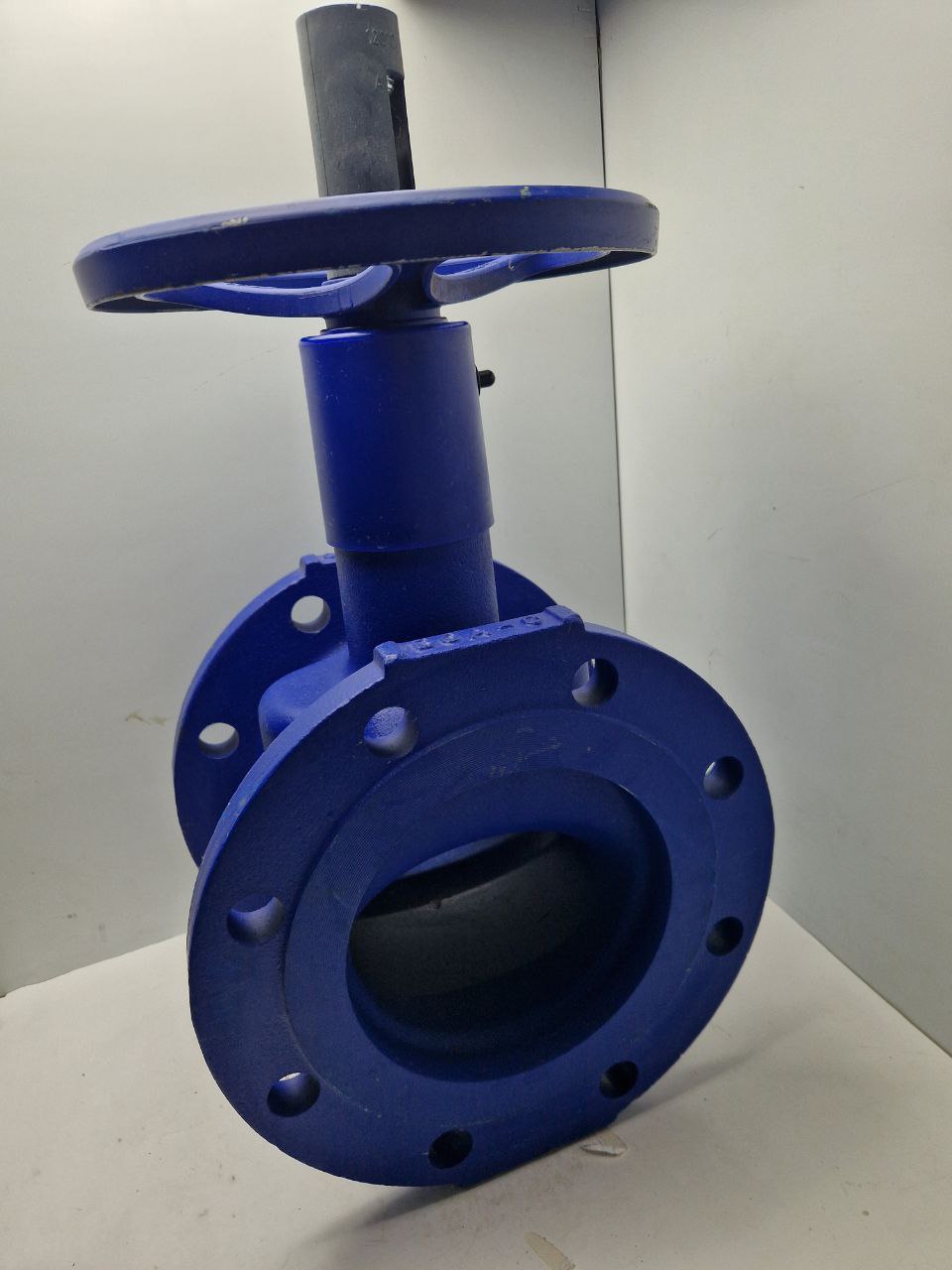

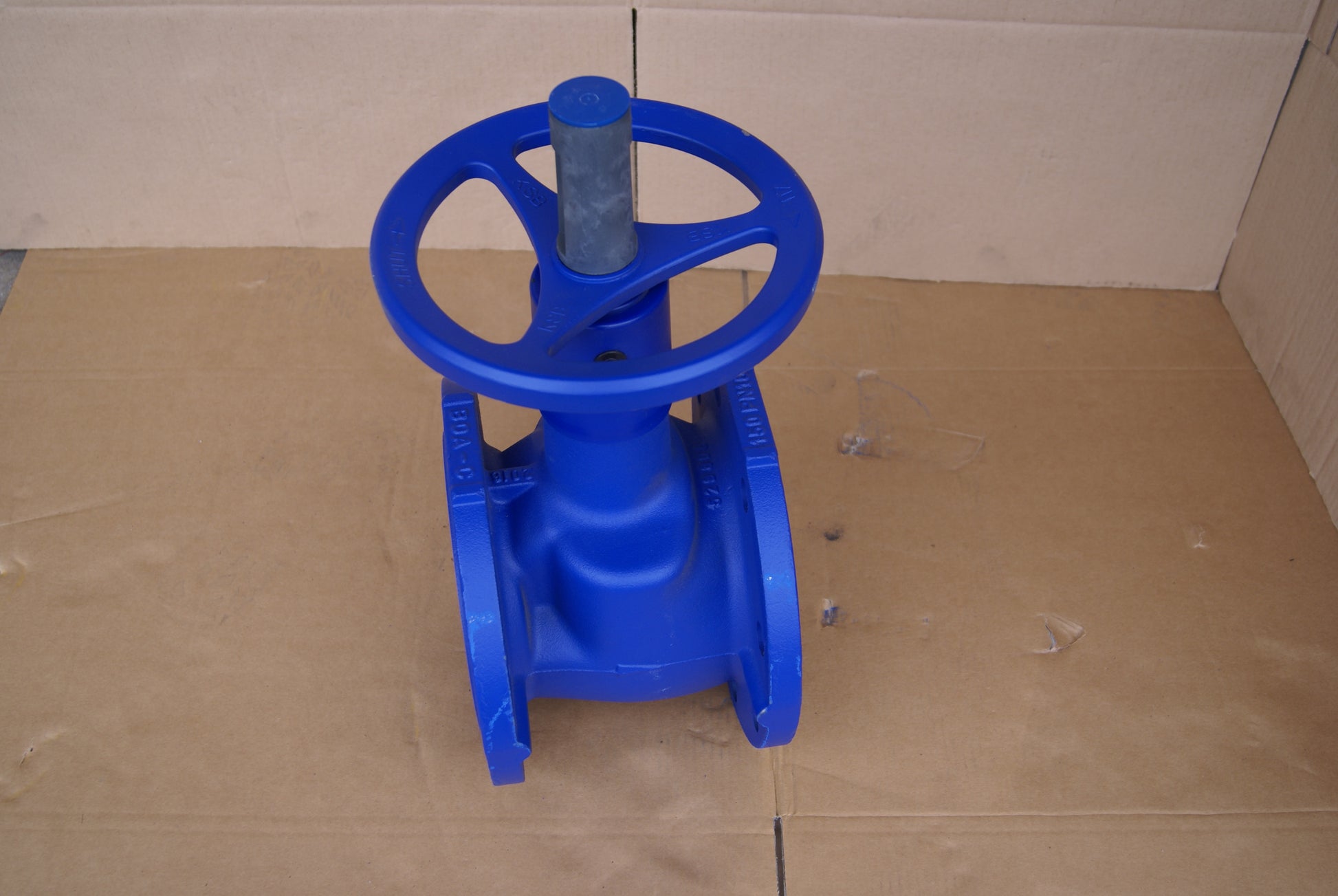

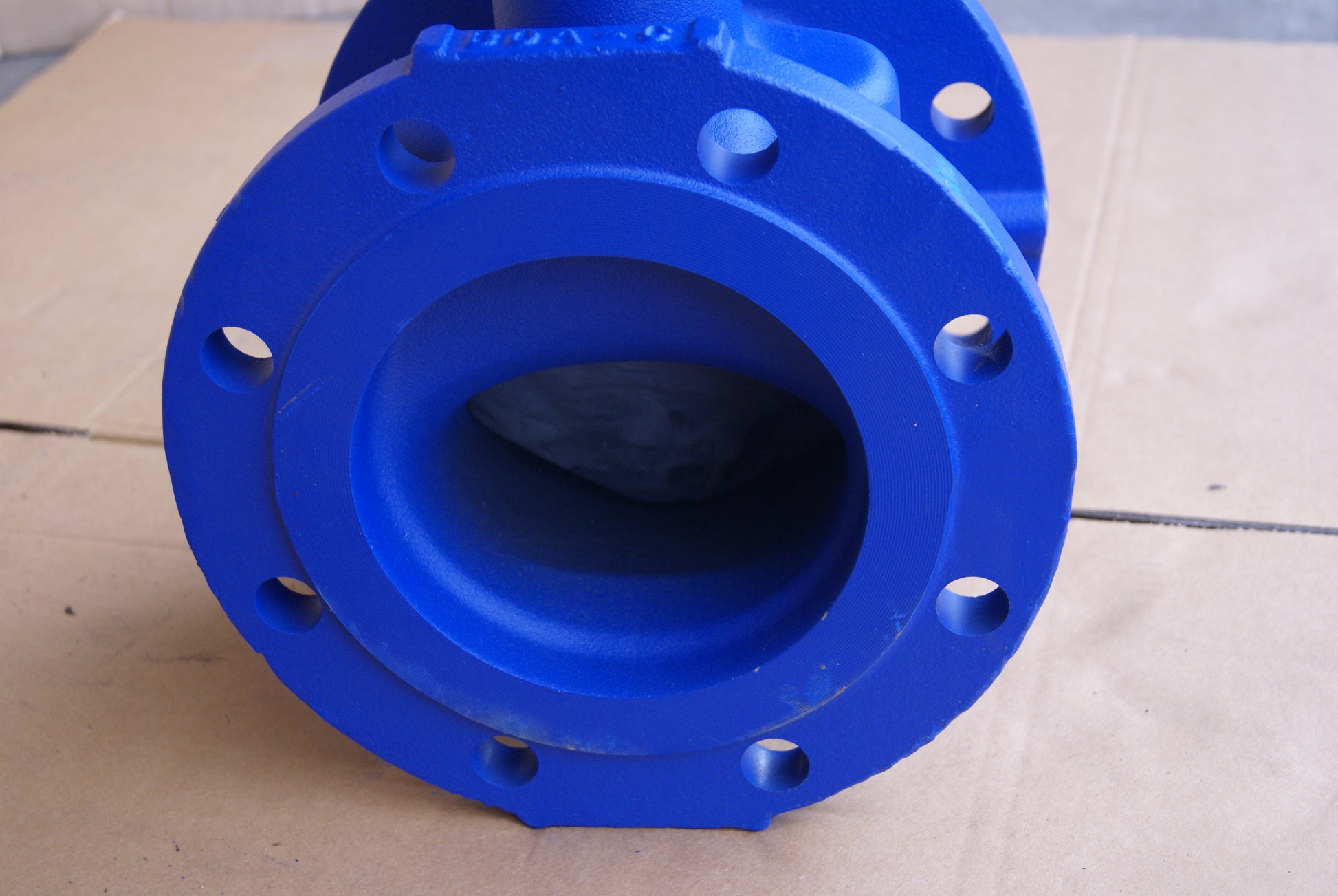

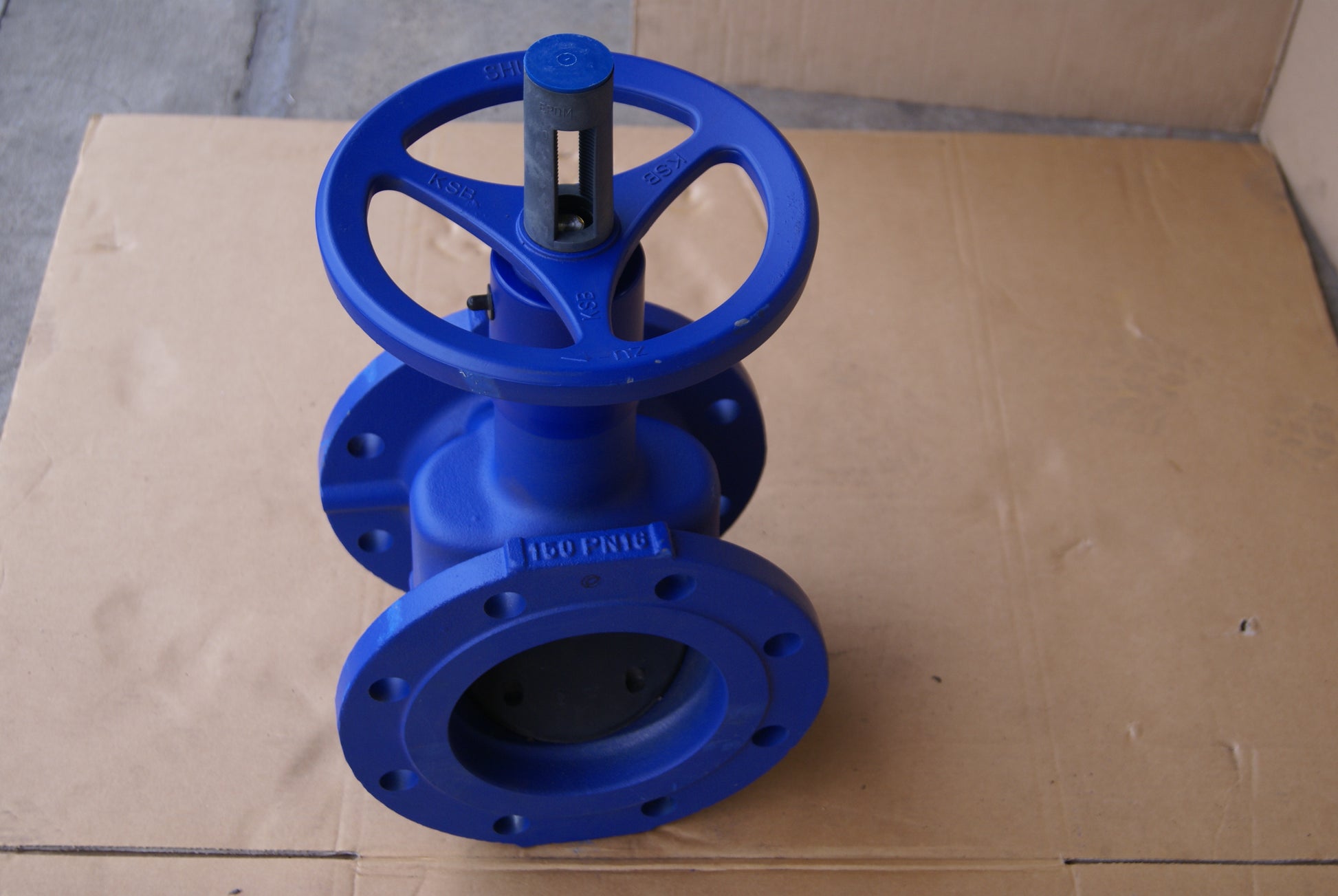

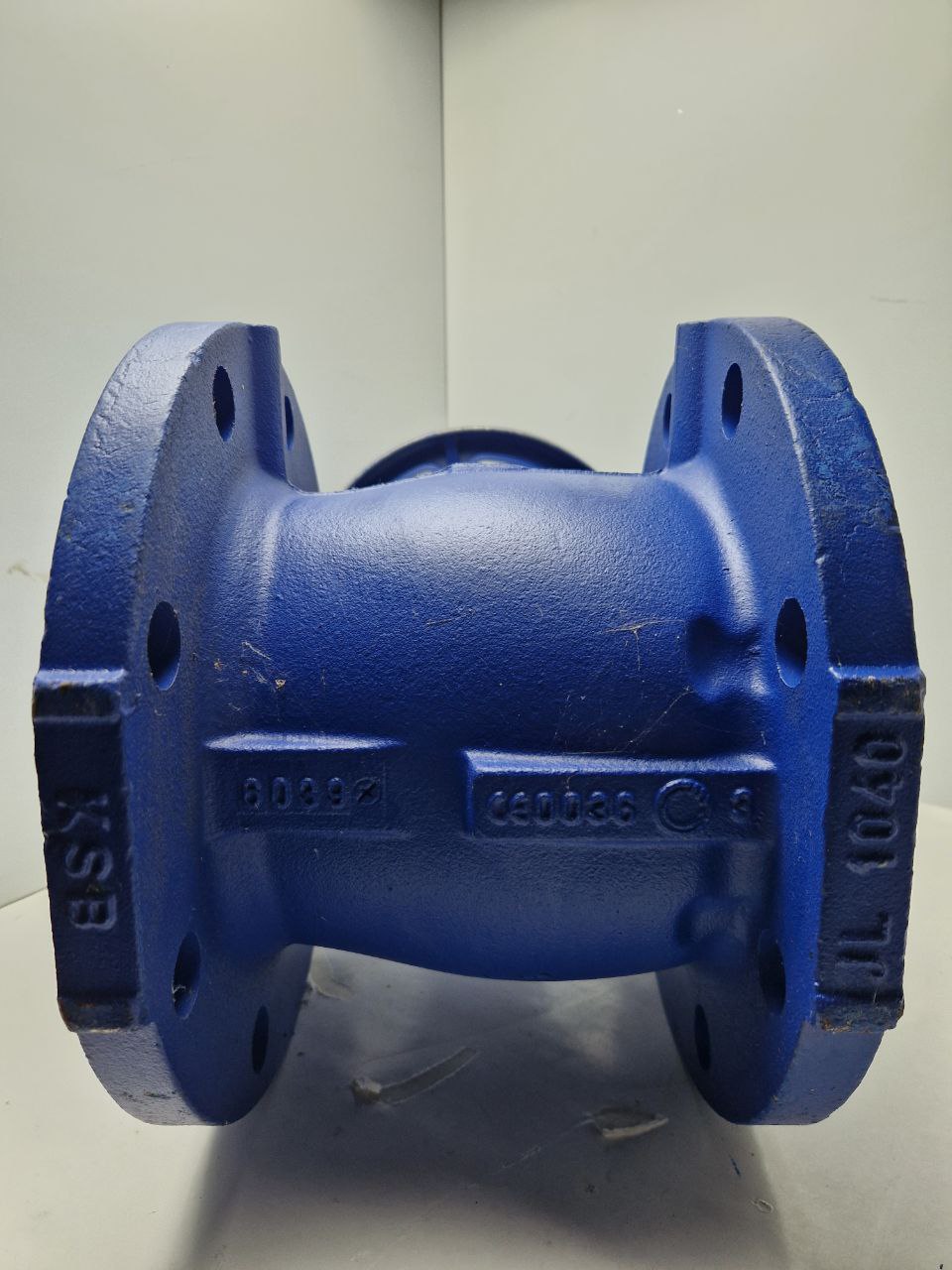

KSB flanged shut-off valve BOA-Compact housing JL1040, PN 16 DN 150

KSB flanged shut-off valve BOA-Compact housing JL1040, PN 16 DN 150

Description: Shut-off valve according to DIN/EN with flanges, in short overall length EN 558/14, angle seat design with straight upper part, one-piece housing, EPDM-coated throttling cone, soft-sealing through seal and back seal, position indicator, locking device, stroke limiter, insulating cap with dew point barrier, maintenance-free, fully insulatable.

Application:
Hot water heating systems up to 120 °C. Air conditioning systems. Not for media containing mineral oil, steam and media that attack EPDM and cast iron. Other media on request.

No instructions for use available

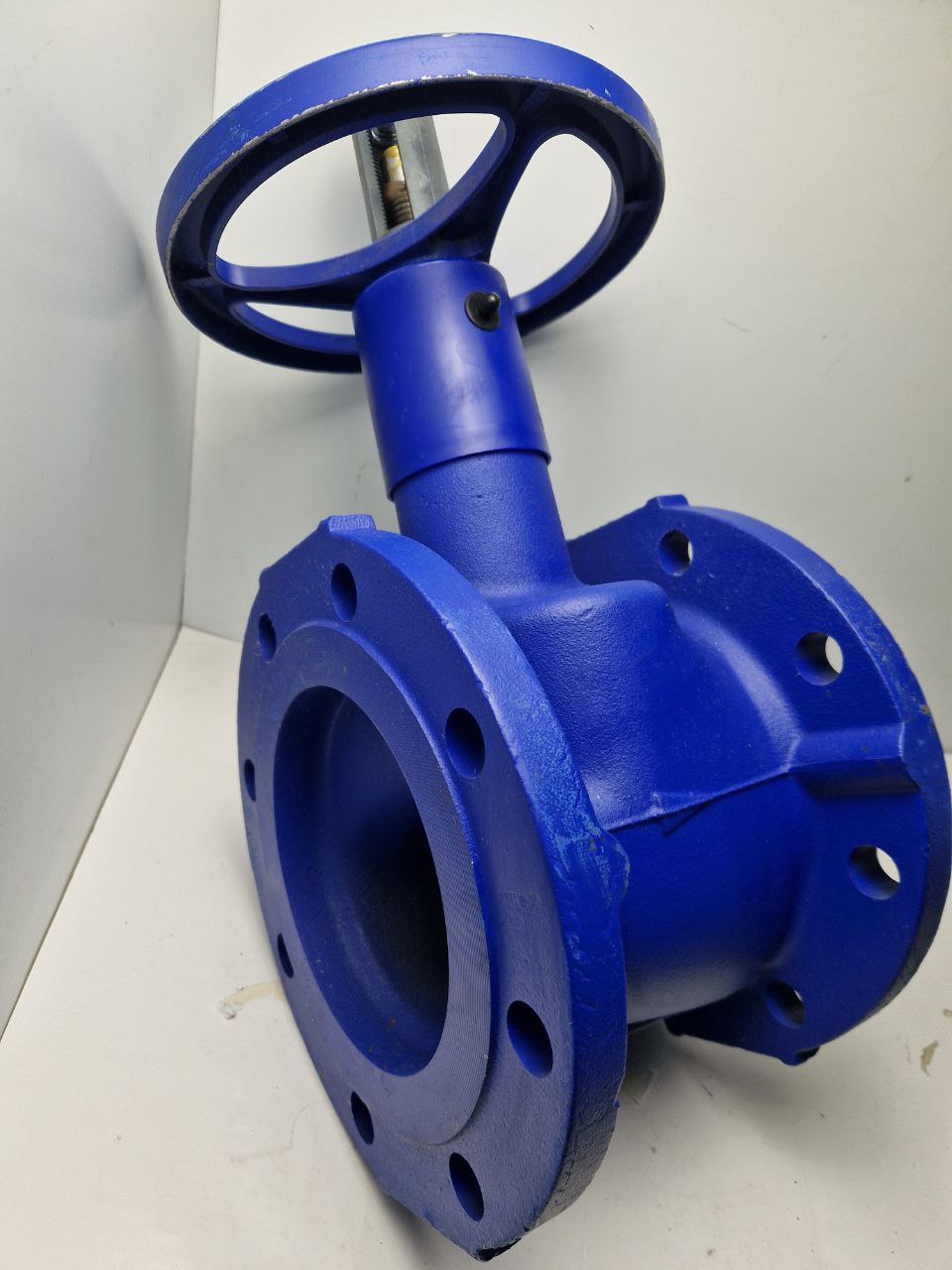

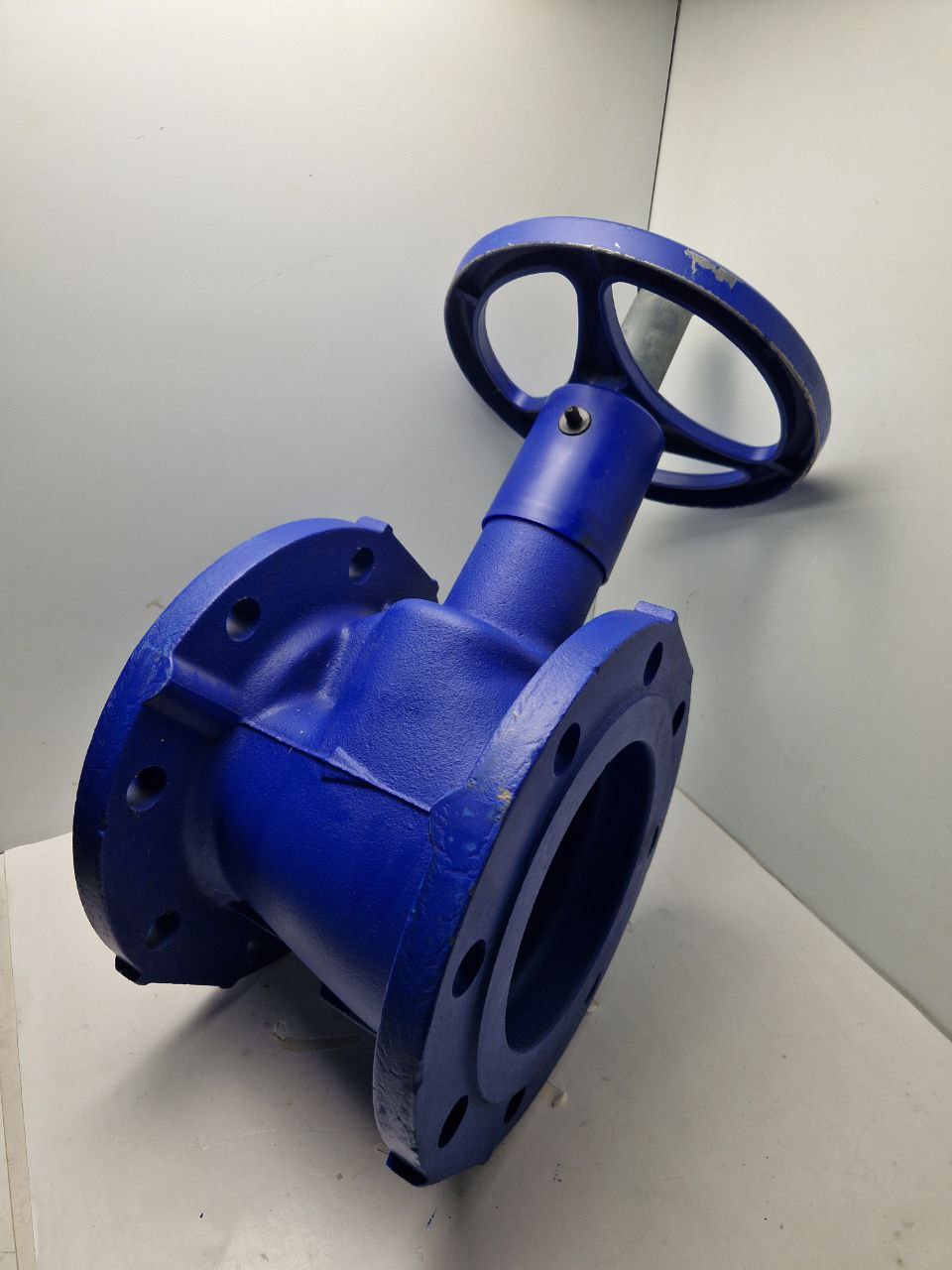

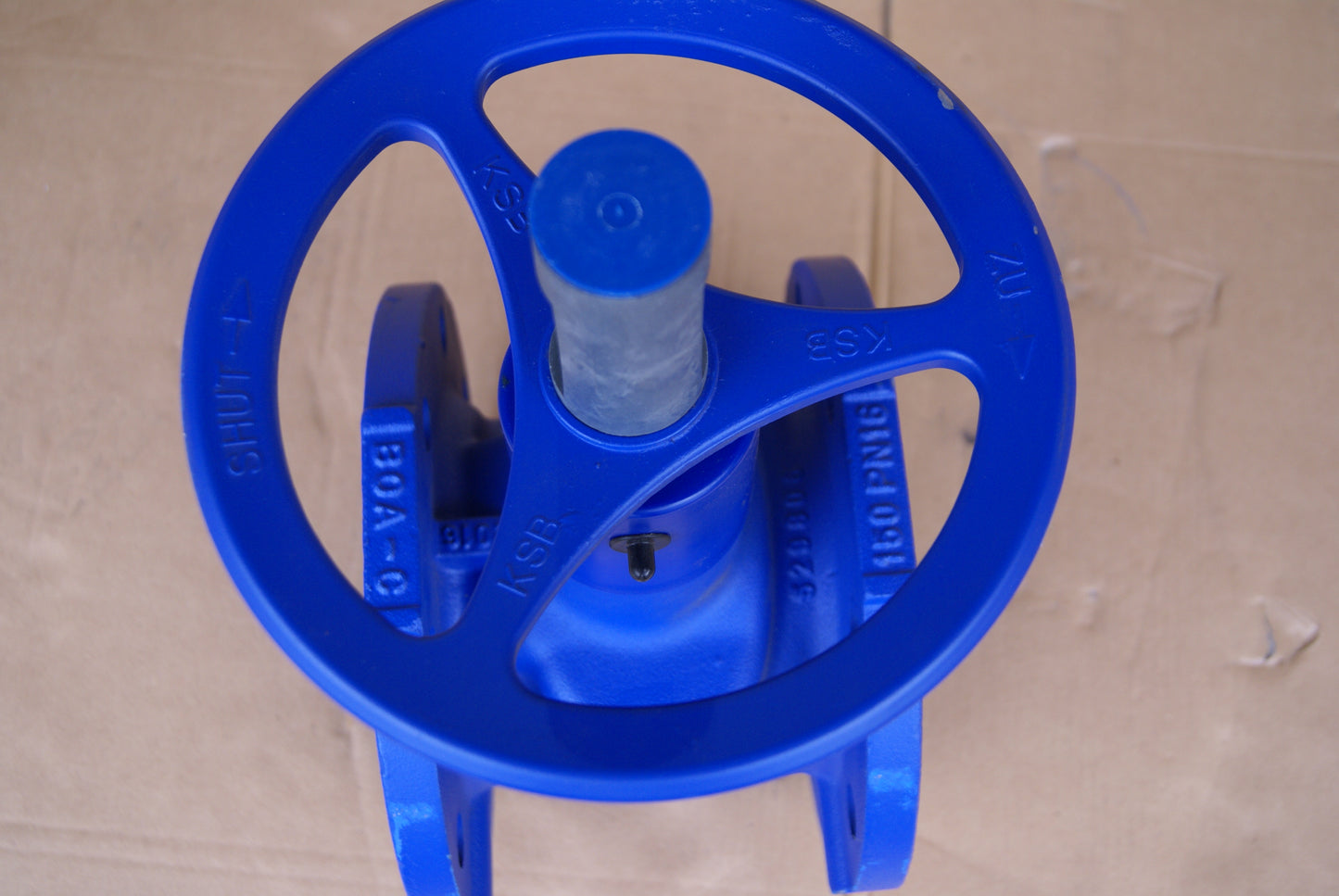

Soft-sealing flange shut-off valve, one-piece housing, overall length EN 558/14. Straight-through valve with angle seat hydraulics with non-rising handwheel, throttling cone, position indicator, locking device, protected internal stroke limiter and insulating cap with dew point barrier. Compact throttle cone fully EPDM-coated as a soft-sealing through and back seal. Spindle seal with EPDM profile ring, maintenance-free. Non-rotating spindle with protected, external thread. With external paint blue. Fully insulated according to EnEv. Designed, manufactured, tested and marked according to the European Pressure Equipment Directive.

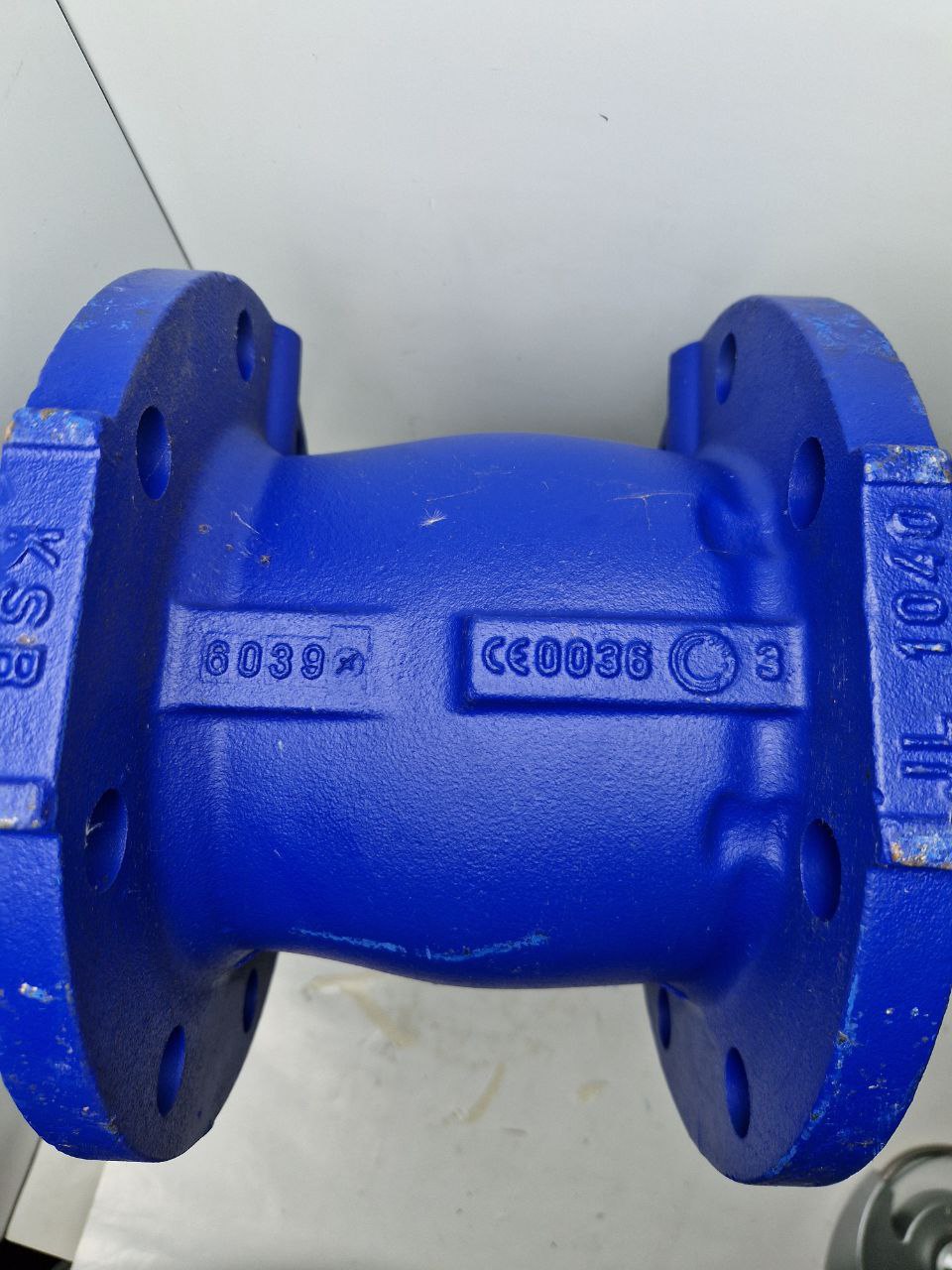

Housing: EN-GJL-250

Spindle: 1.4021

Paint color: blue RAL 5002

Handwheel cap: none

Min. medium temperature: -10 oC

Max. medium temperature: 120 oC

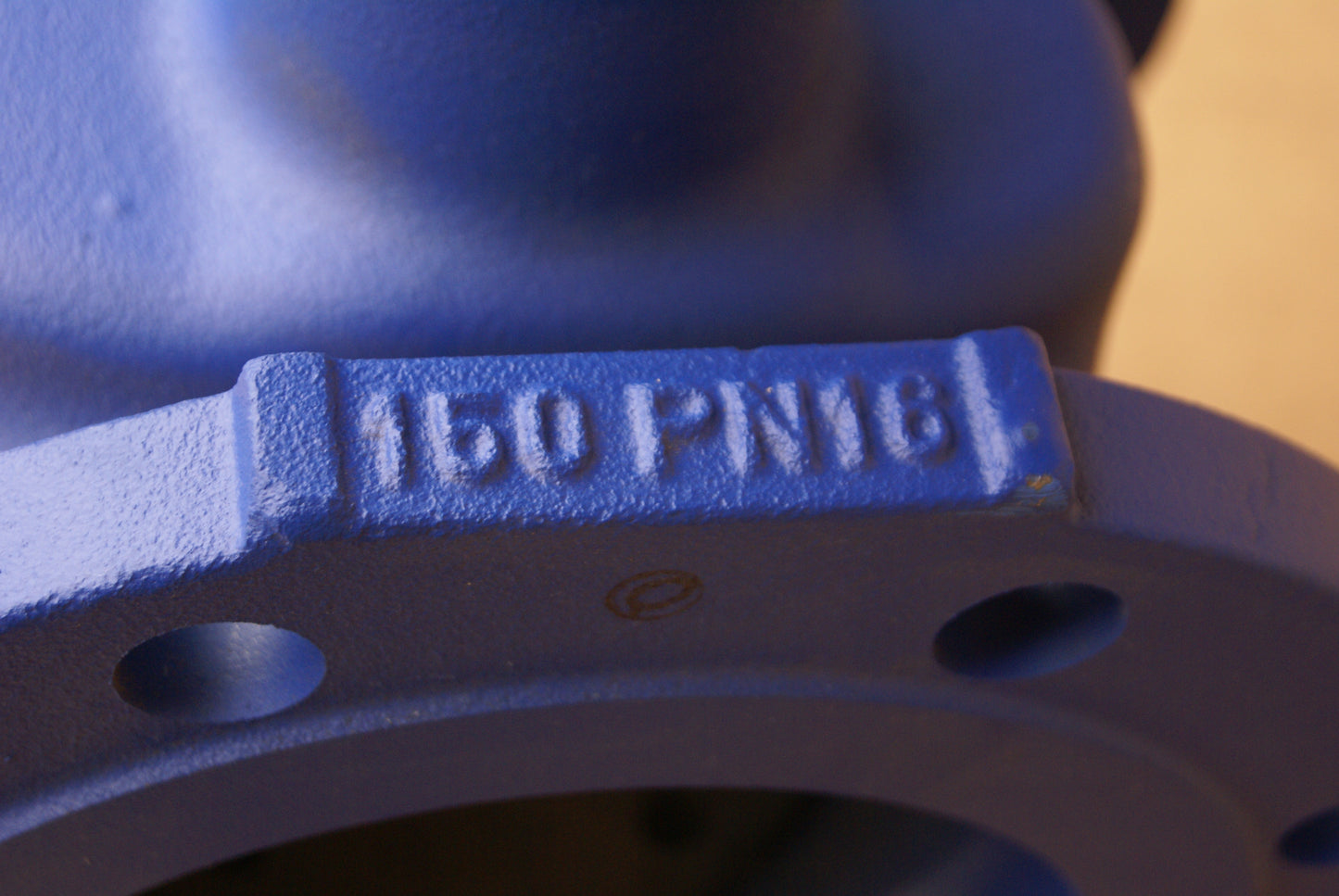

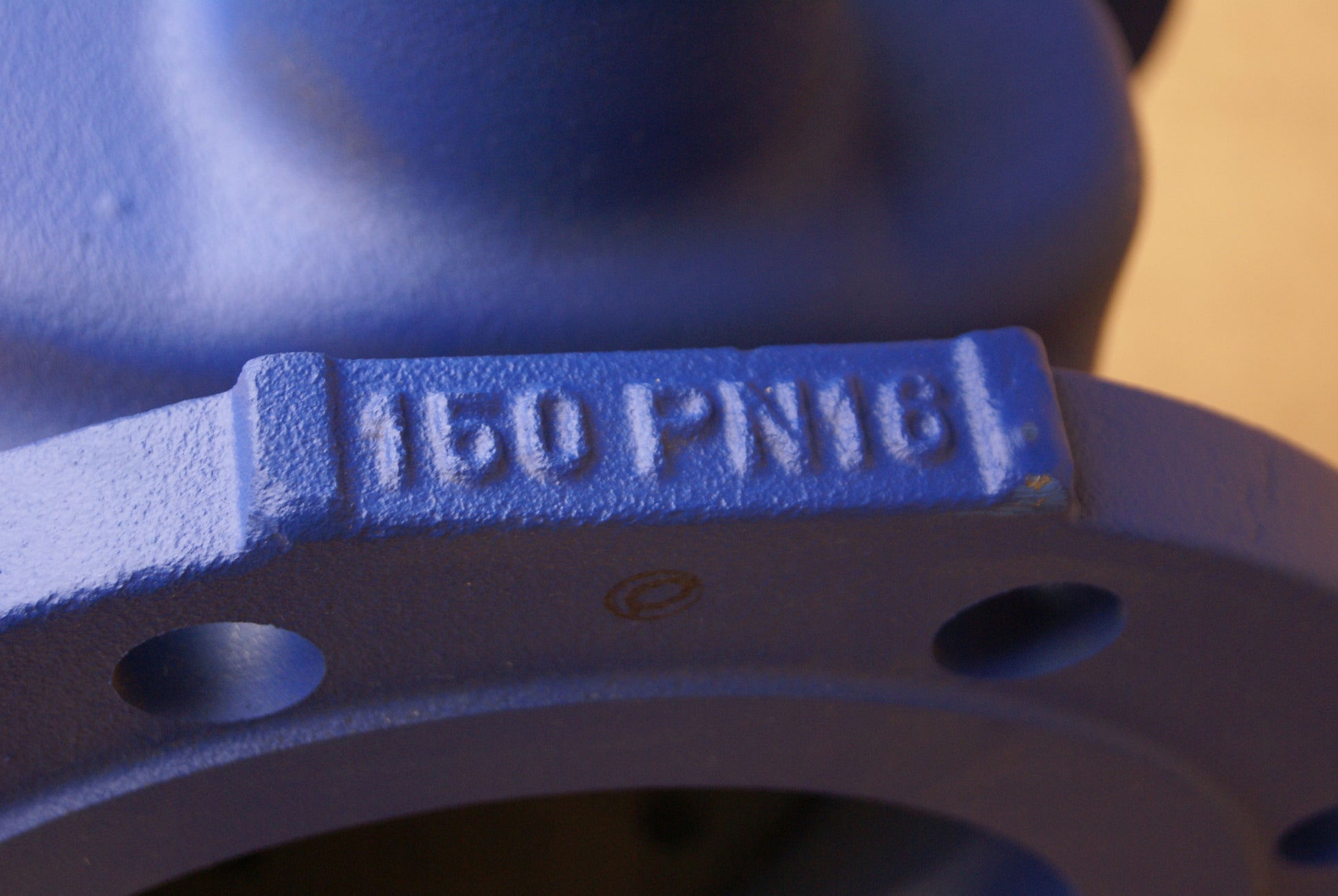

Nominal pressure: PN 16

Nominal width: DN 150

Weight: 31 kg Manufacturer:

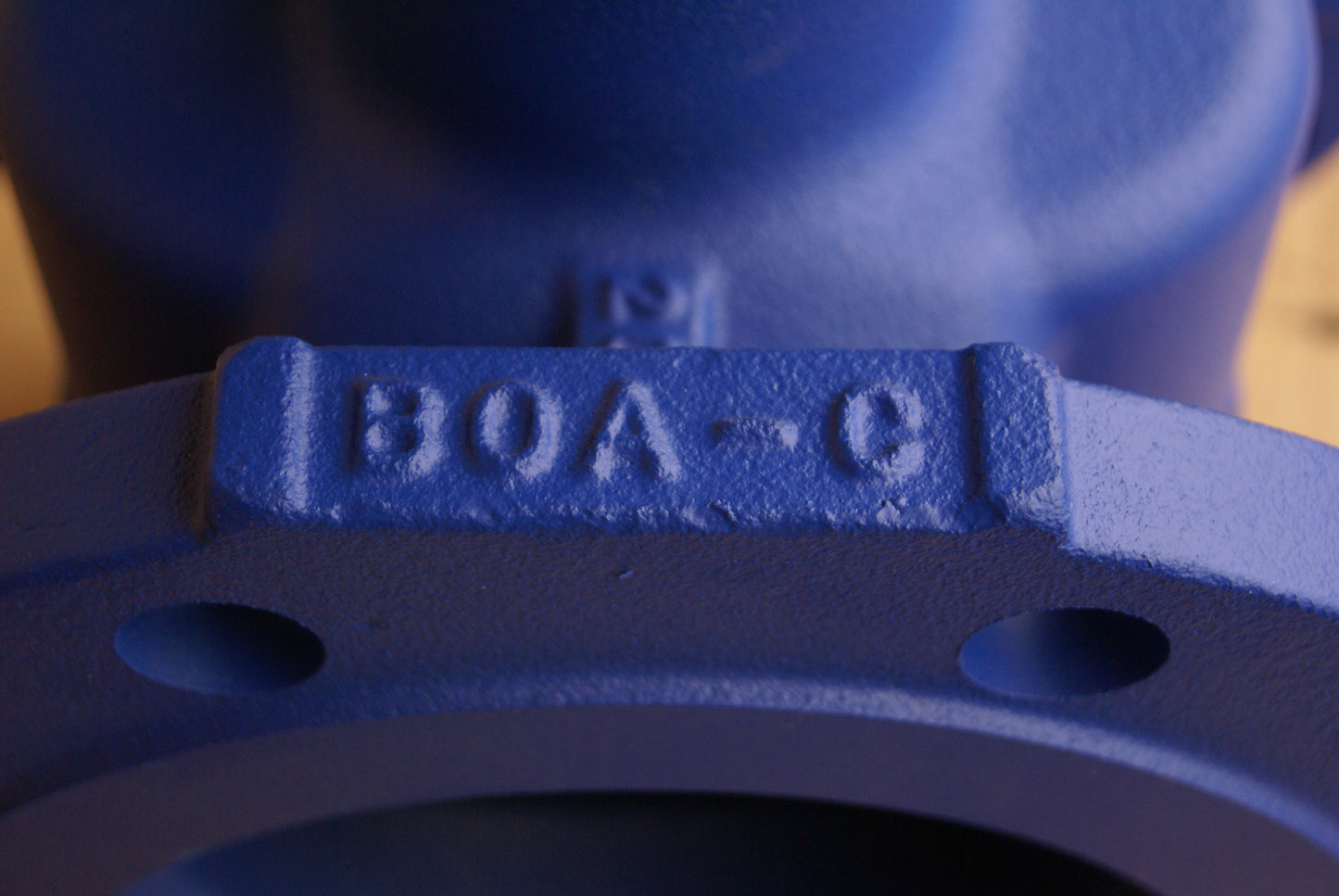

KSB Series: BOA-Compact Type:

Item number: 48874933

EAN/GTIN: 4031932059220

Material price group: A1

Manufacturer product group         23_Shut-off valves
Manufacturer series                       BOA-Compact
Manufacturer product group         BOA-Compact, shut-off valves
Manufacturer article number         48874933
Manufacturer                        KSB
Manufacturer                        KSB
Connection 1                        Flange
Connection 2                        Flange
Article number                     KSB-48874933
Valve design                         Fixed valve
Bellows valve                        Yes
Series                                    BOA-Compact
Operation                             Handwheel
Article pressure level            PN 16
Flange pressure level            PN 16
EAN-13                                 4031932059220
Color                                     Blue RAL 5002
Spring closing (NC)              No
Spring opening (NO)            No
Free flow                               No
Gastec QA test                      No
Suitable for steam                Yes
Suitable for liquids               Yes
Suitable for gases                 No

Made in Germany.
