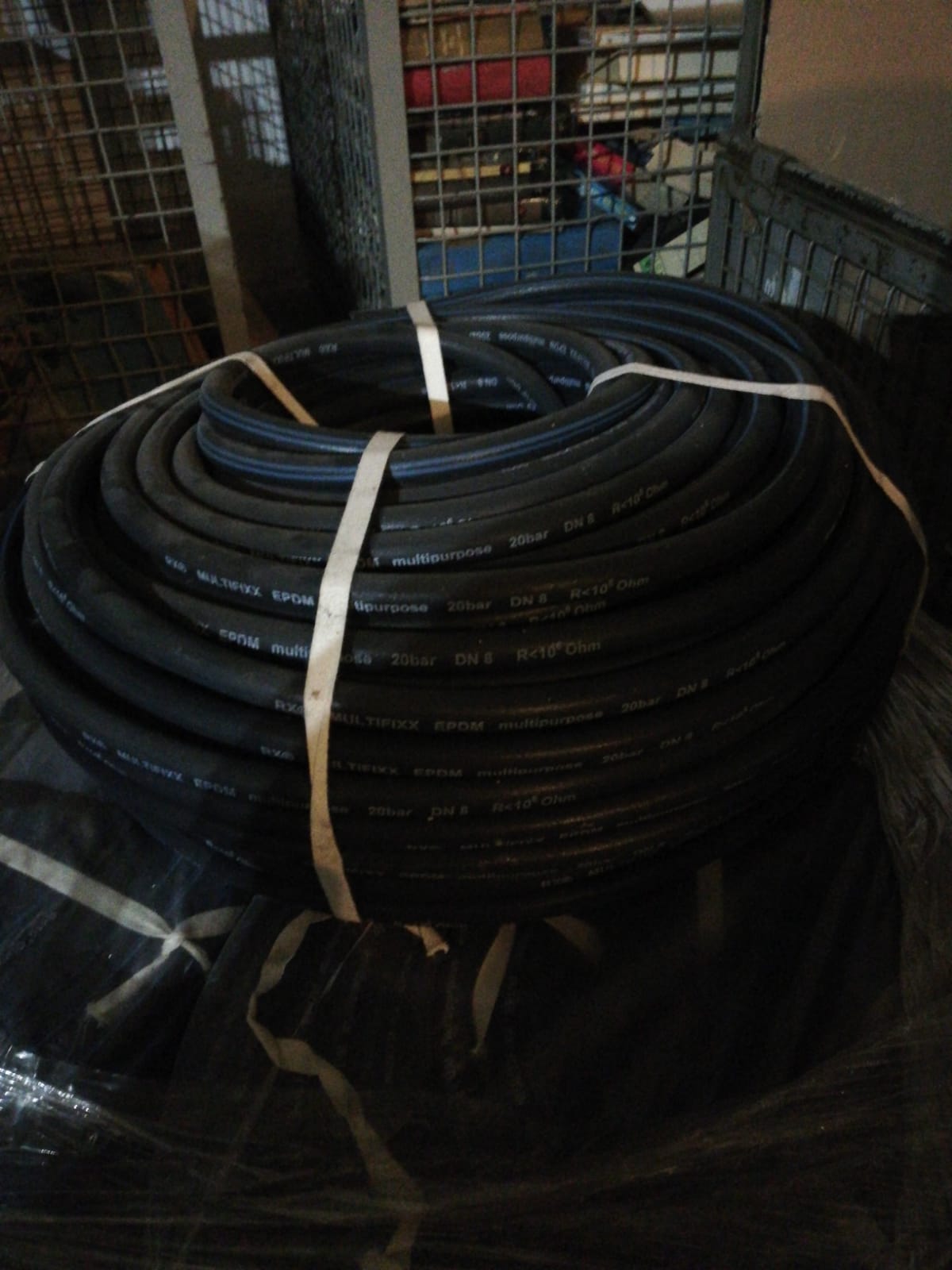

Industrial Hoses, RX MP20-EPDM, 8 x 3.5 100m / 328 feet, Ayr & Shater, smperflx

Industrial Hoses, RX MP20-EPDM, 8 x 3,5 100 м / 328 футов, Ayr & Shater, smperflx

Universal EPDM - 20 bar

SPECIFICATIONS
Application Highly flexible multi-purpose hose, with very good ageing, weather and abrasion
resistance.
Suitable for conveying air and water, as well as many chemical products in industry and
agriculture (see resistance list).
Feature High EPDM quality ensures excellent ozone and weather resistance.
Kink resistant due to textile reinforcement.
Electrically conductive tube construction prevents the build-up of static electricity. R < 106
Ω (according to EN ISO 8031:2009).
Temperature range -40°C / +120°C ; max. +100°C fluid temperature in closed systems.
Safety factor 4 : 1
Tube EPDM, black, electrically conductive, smooth.
Reinforcement Textile spiral.
Cover EPDM, black, resistant to ozone and weather, electrically conductive, smooth, 3 blue
longitudinal stripes.

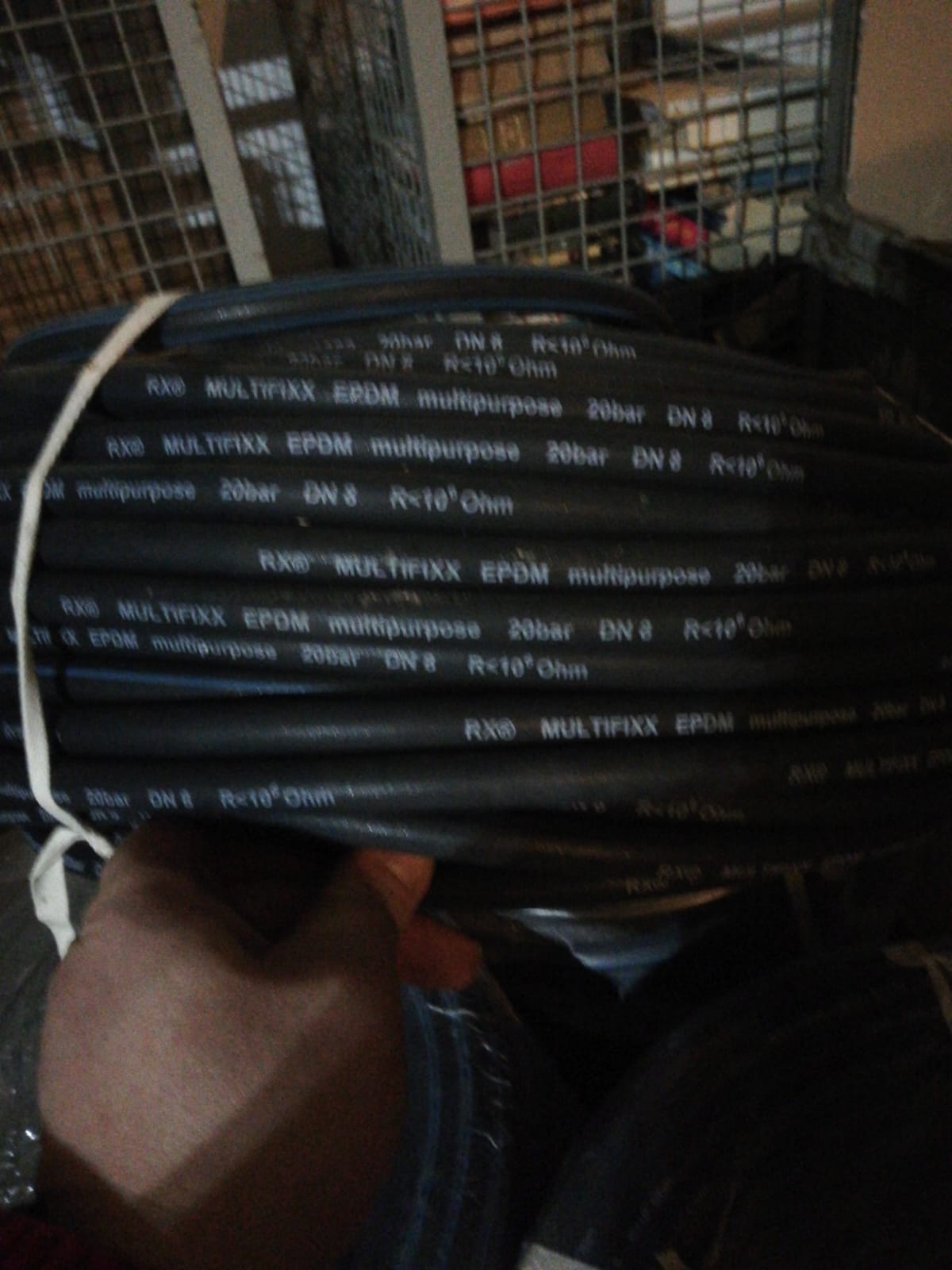

Marking continuous inkjet, white letters: "SEMPERIT (S) MP 20-EPDM MULTI PURPOSE PN 20 BAR DN
+100°C (conditionally +120°C) CONDUCTIVE R < 106
Ohm/m MADE IN EU //////".
Notice If in any doubt regarding use, please contact Semperit.
ATTENTION: As temperature increases or decreases, burst pressure, safe working pressure,
coupling retention properties and other safety characteristics of the hose can significantly
decrease in closed systems/applications. Failure to consider how temperature and other
conditions affect hose performance may cause property damage, serious bodily injury or
death. The hose must not be used in constantly pressurized closed systems at
temperatures >100°C.
