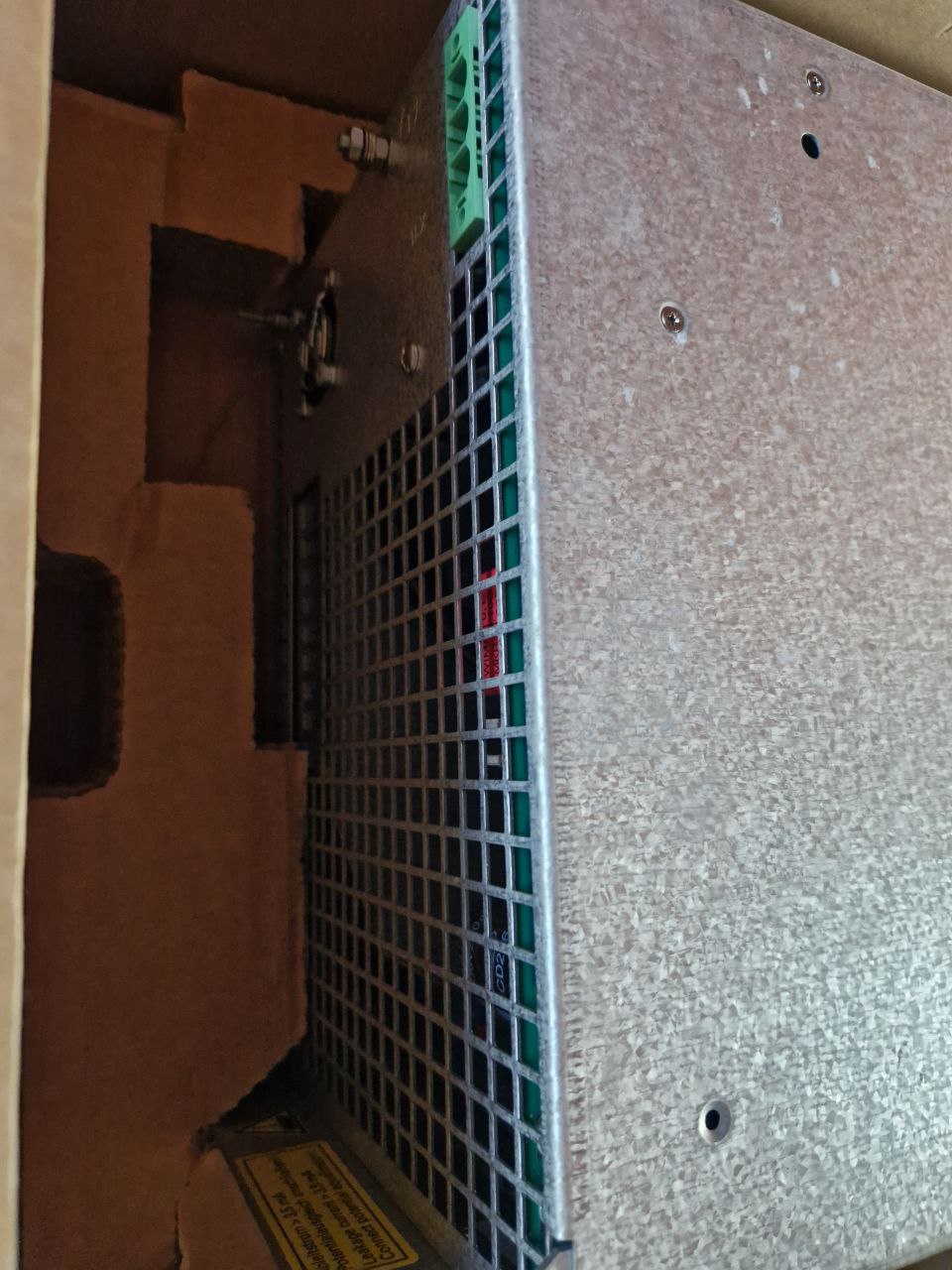

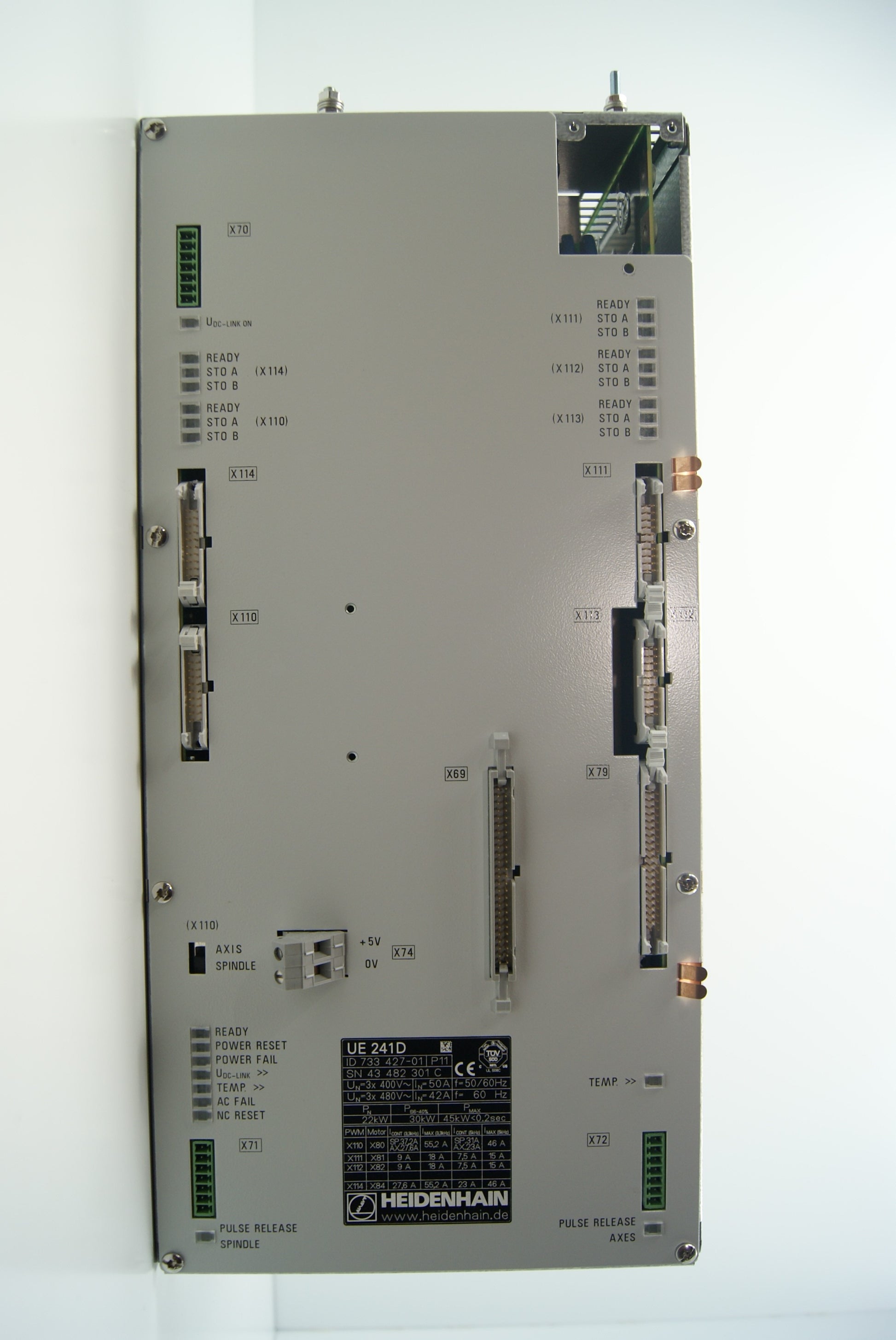

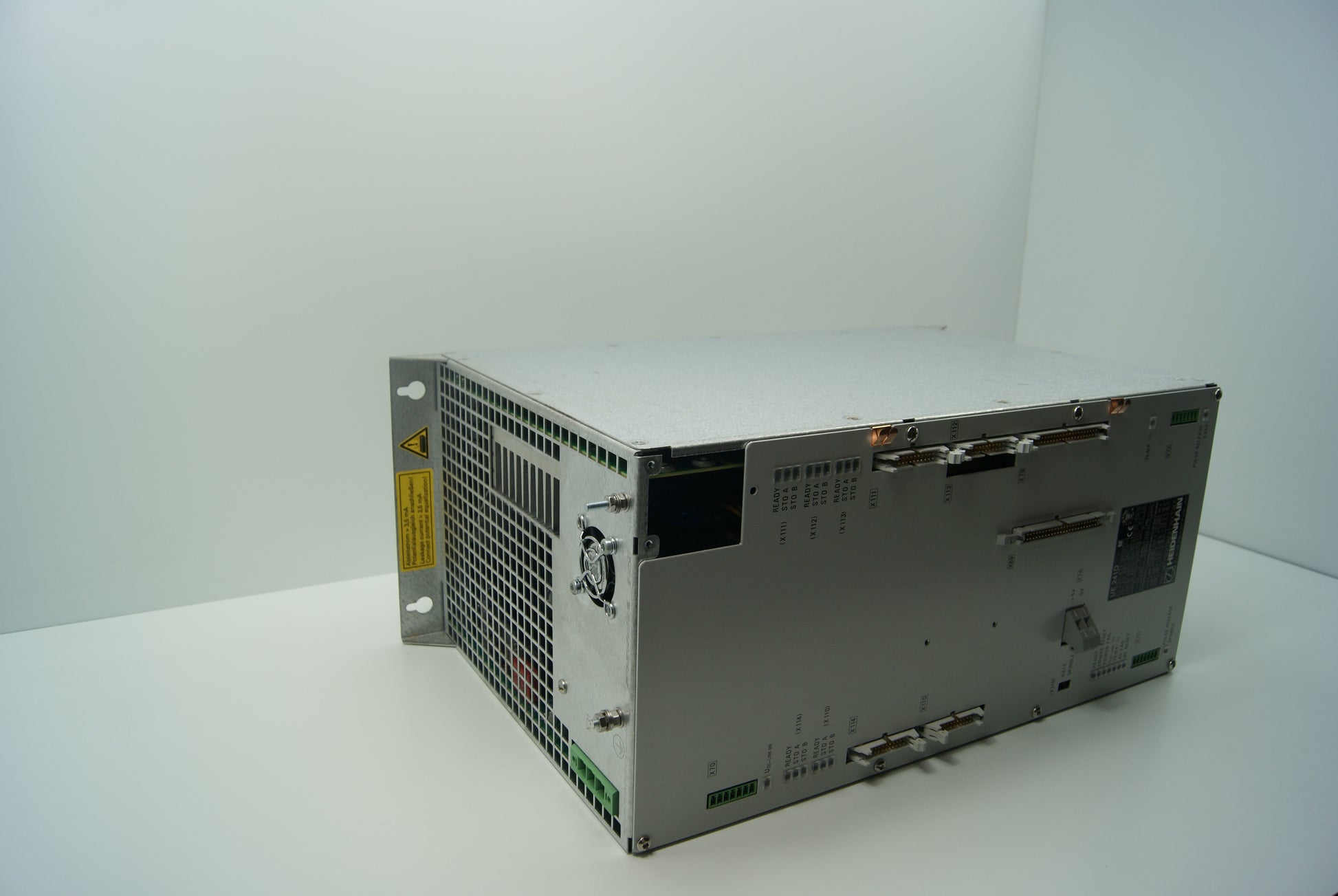

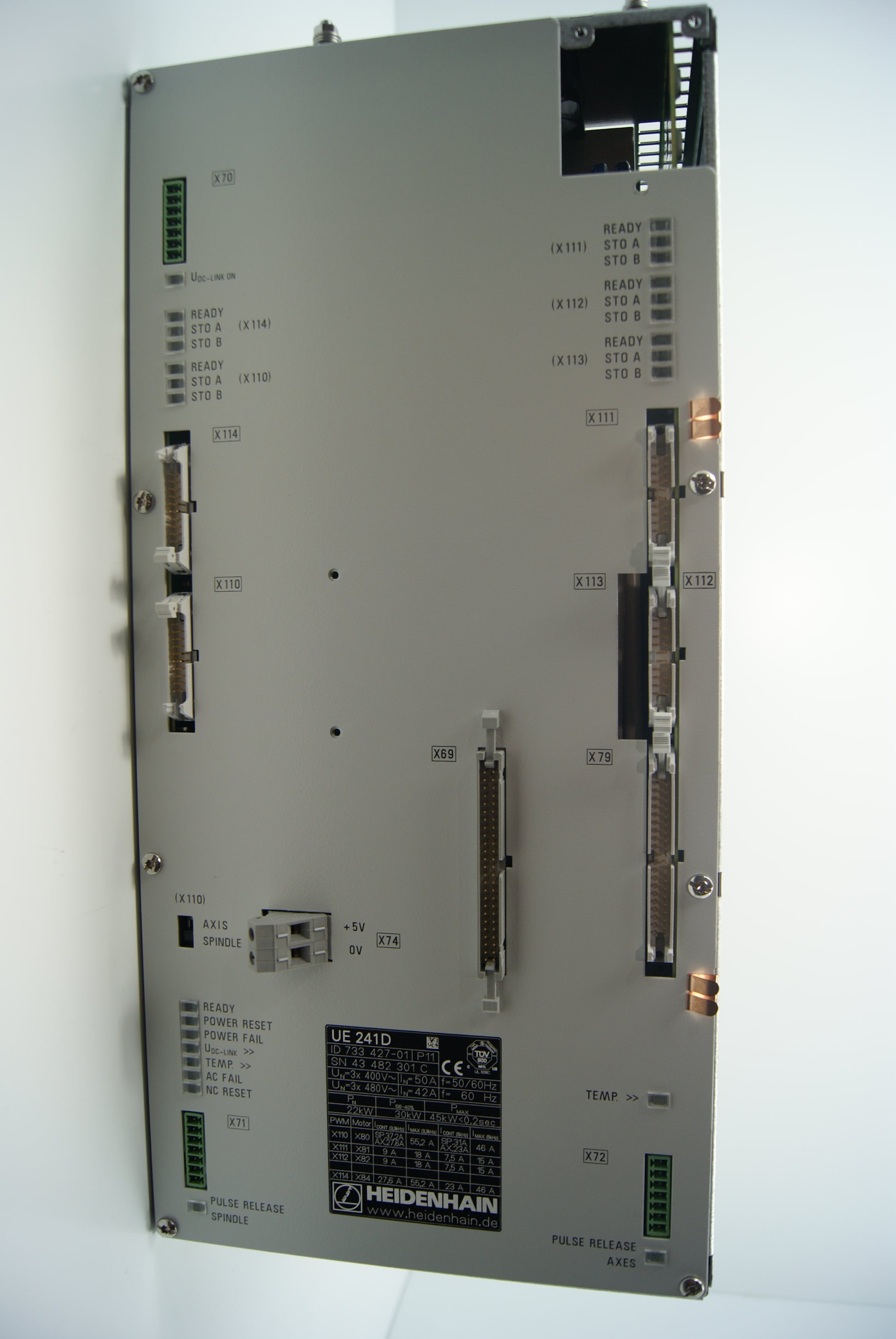

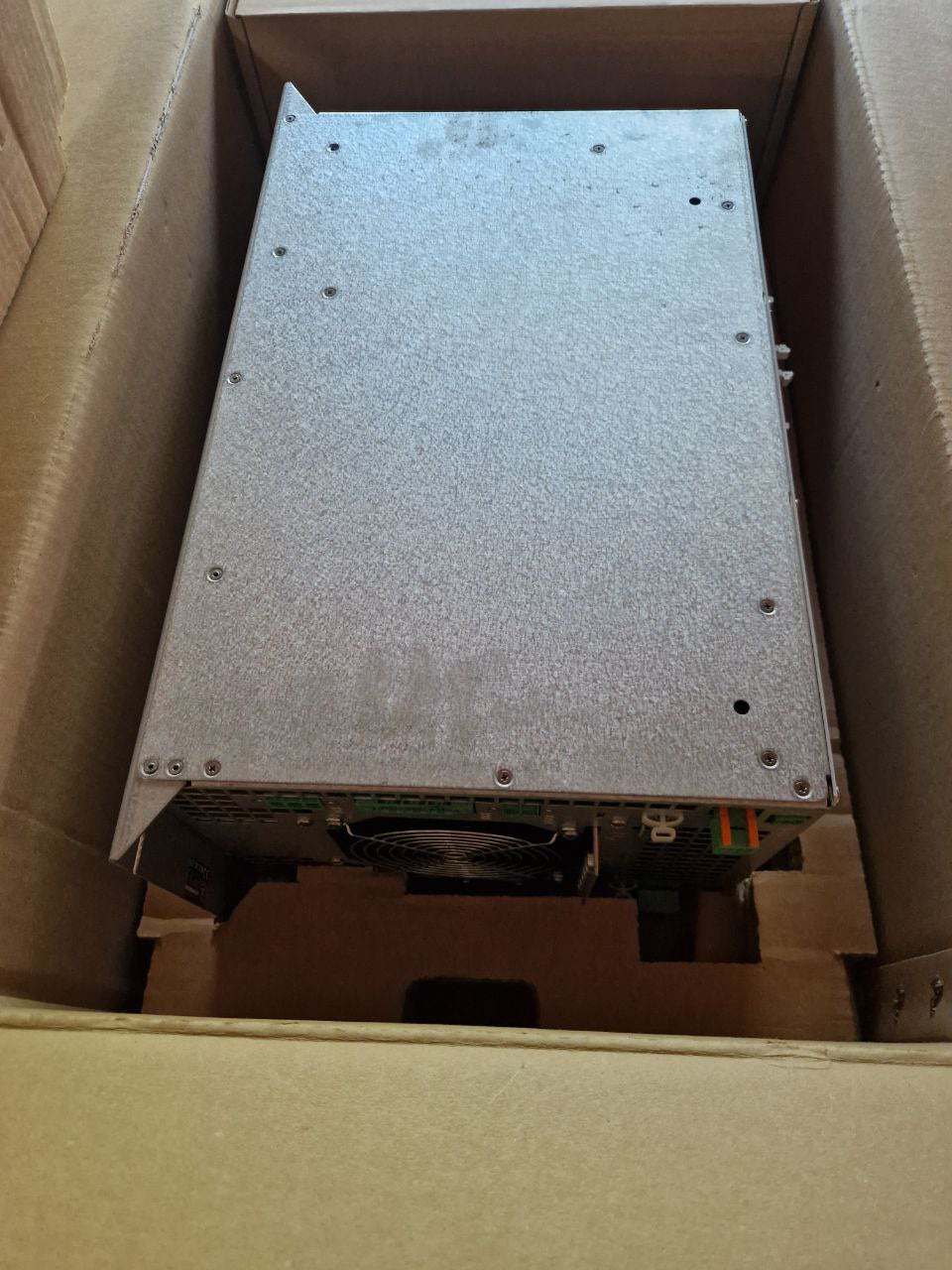

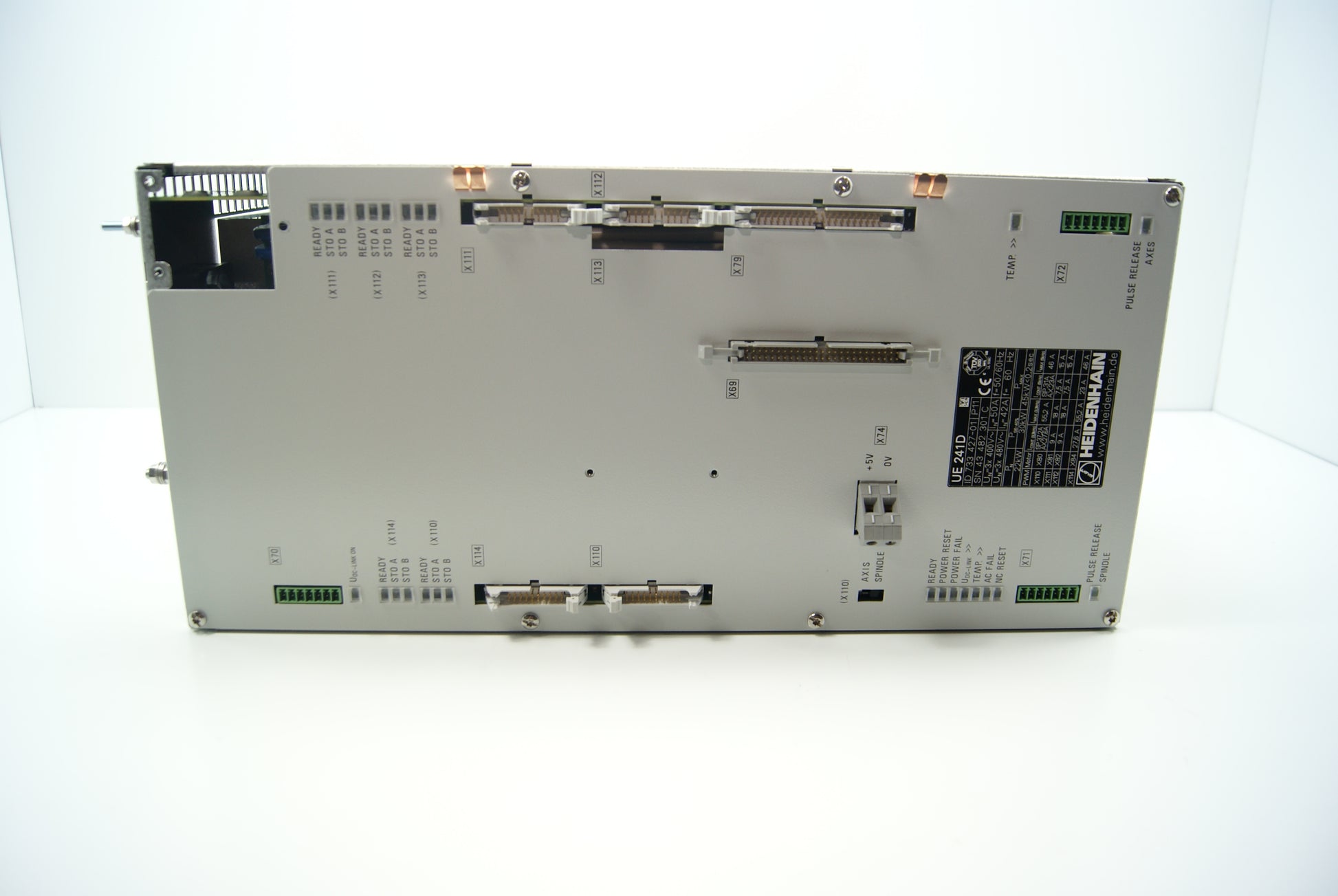

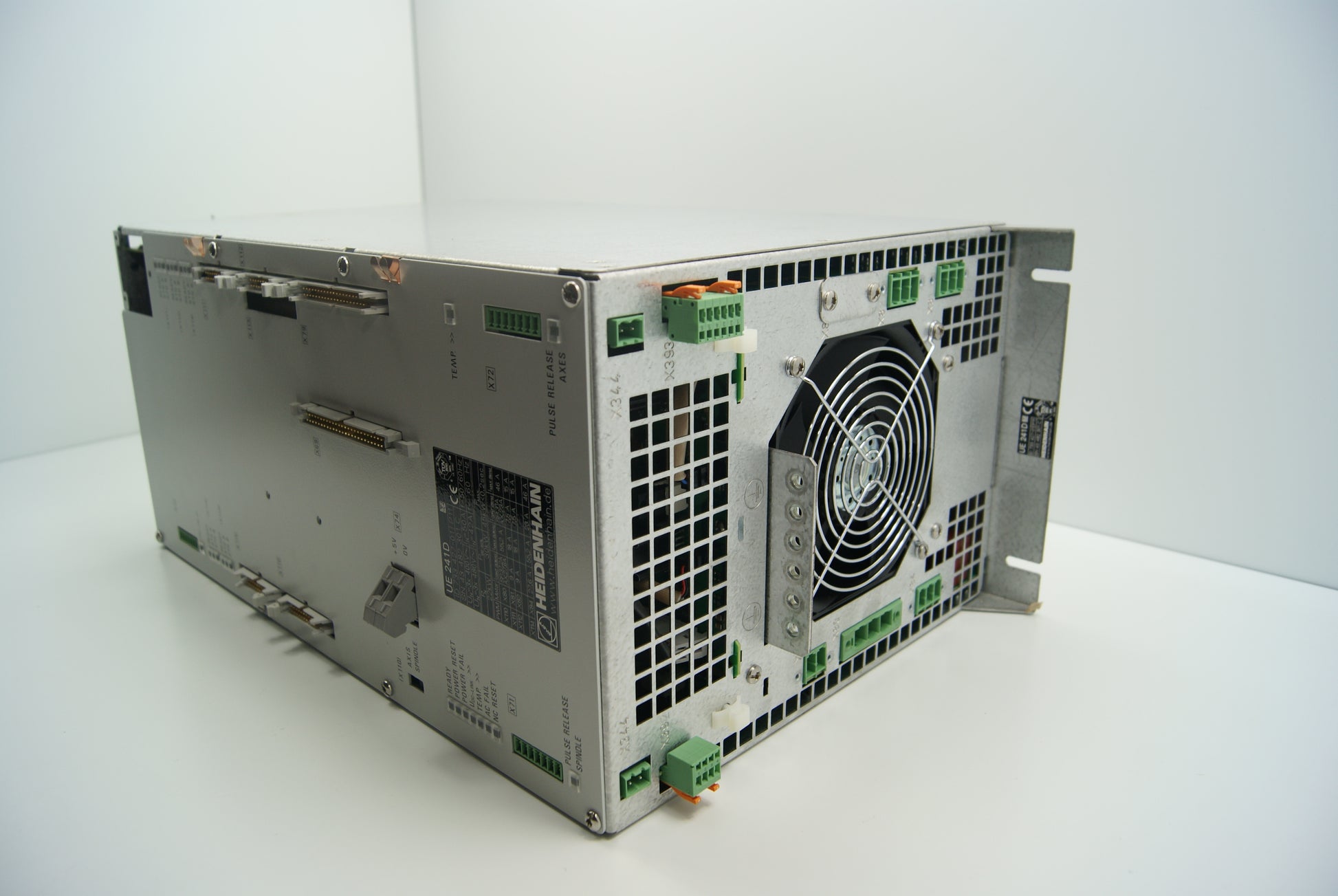

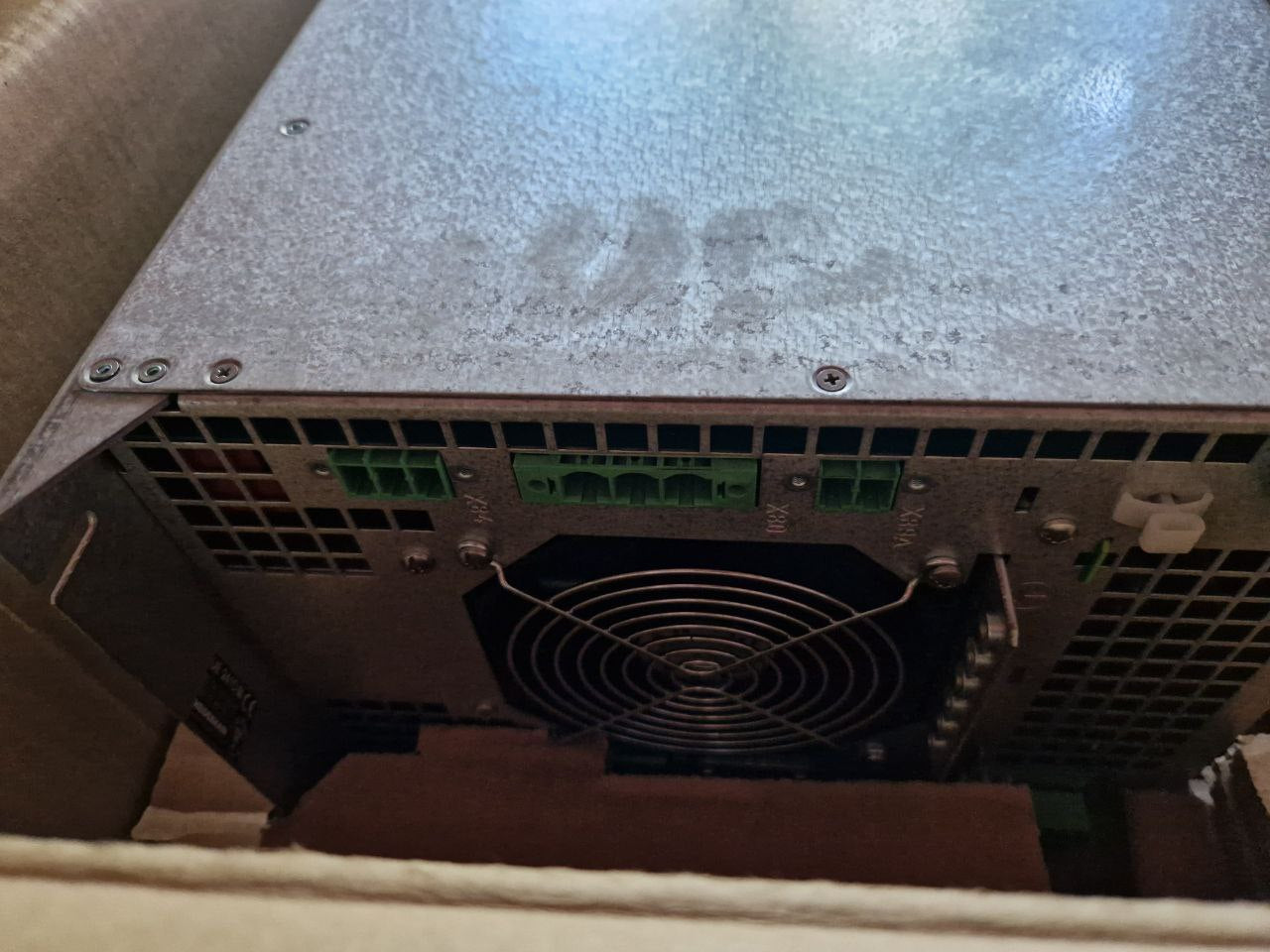

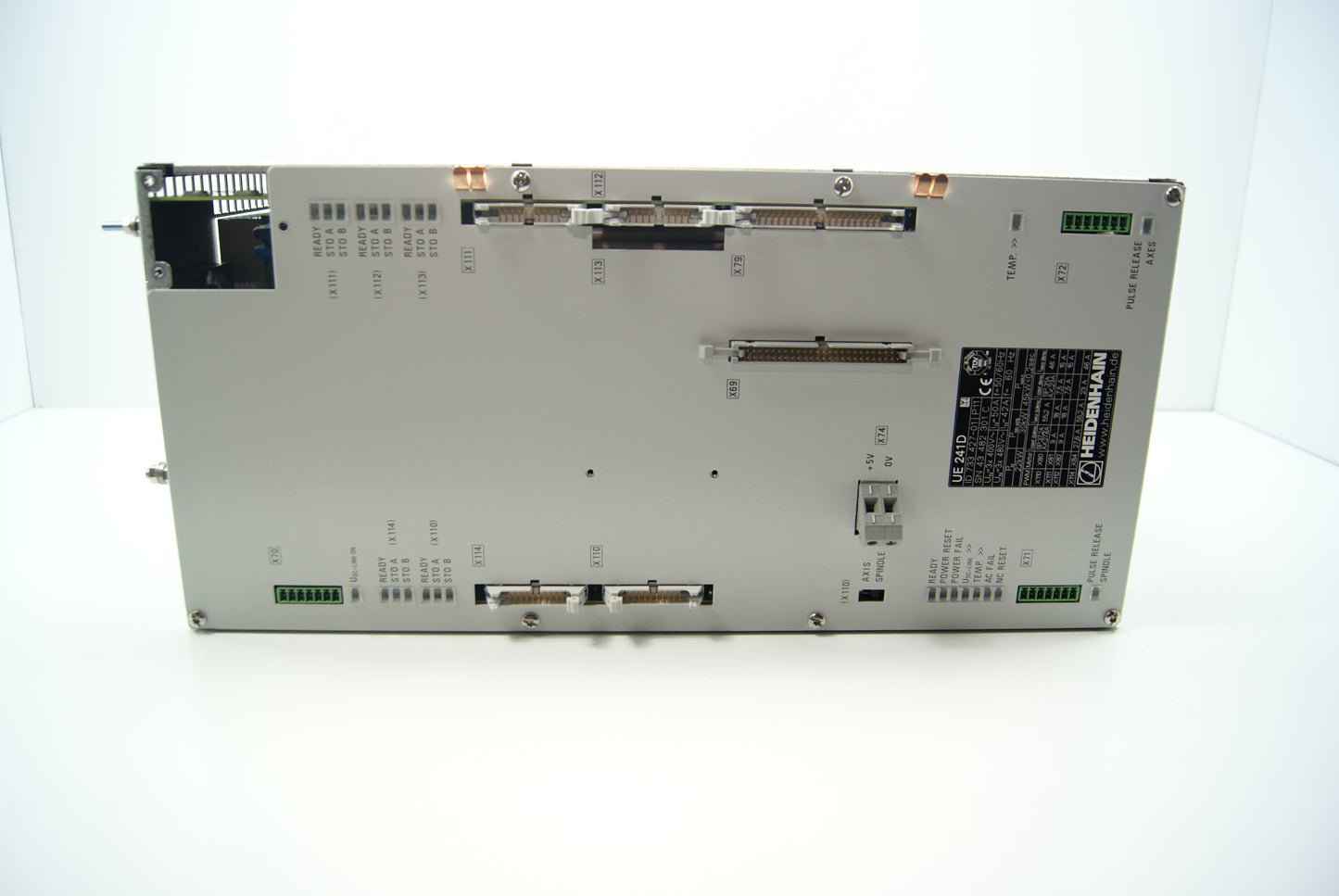

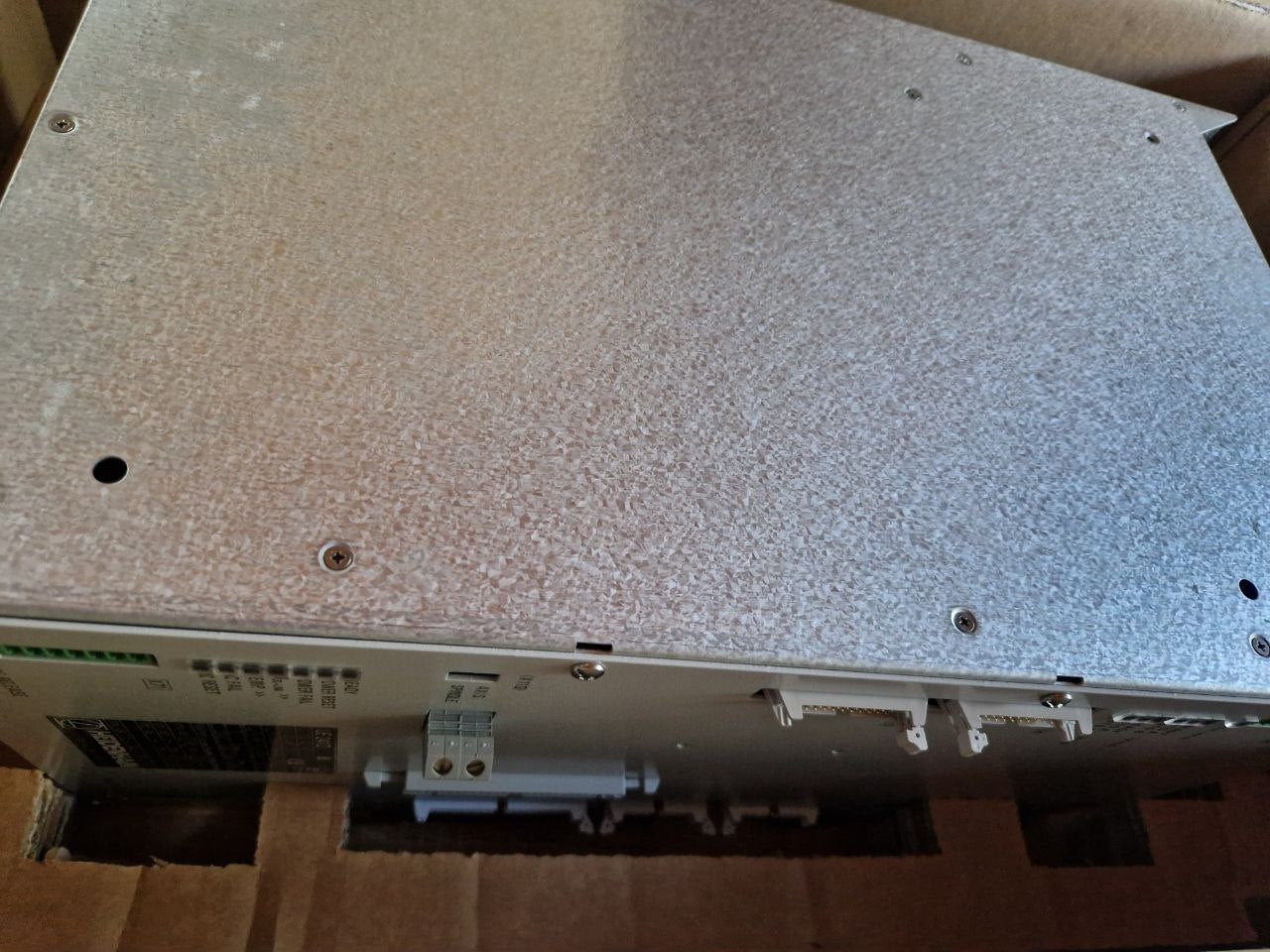

HEIDENHAIN UE 241D compact frequency converter with diagnostic function and electronic board. Compact frequency converter for 3 axes + spindle or 4 axes. With diagnostic function and electronic plate.

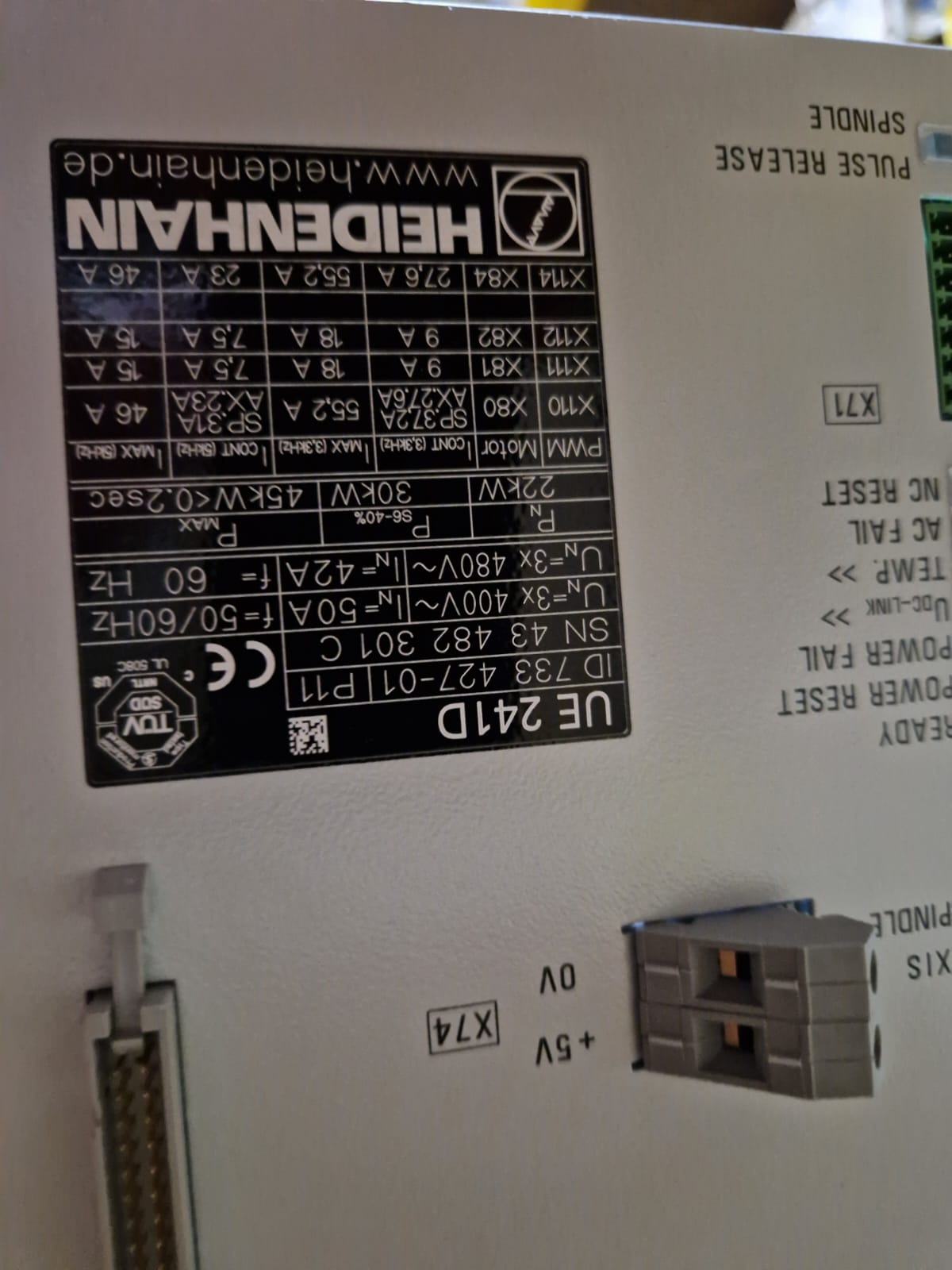

Heidenhain UE 241D 22 Nominal current at 5 kHz: 2 x 7.5 A per axis, 23 A per axis and 31 A per axis or 23 A per axis. Maximum current at 5 kHz: 2 x 15 A and 2 x 46 A. Nominal power: 22 kW. S6-40% power: 30 kW. Peak power: 45 kW (<0.2 s) DC link voltage: 565 V Low voltage supply: 200 W Heating type: internal Cooling type: internal Braking resistor: external Connection of holding brake: with connection Module width: 200.00 mm. ID UE241D #733427-01 Product code: 85044082 Manufacturer: HEIDENHAIN Part number: 018.3320
