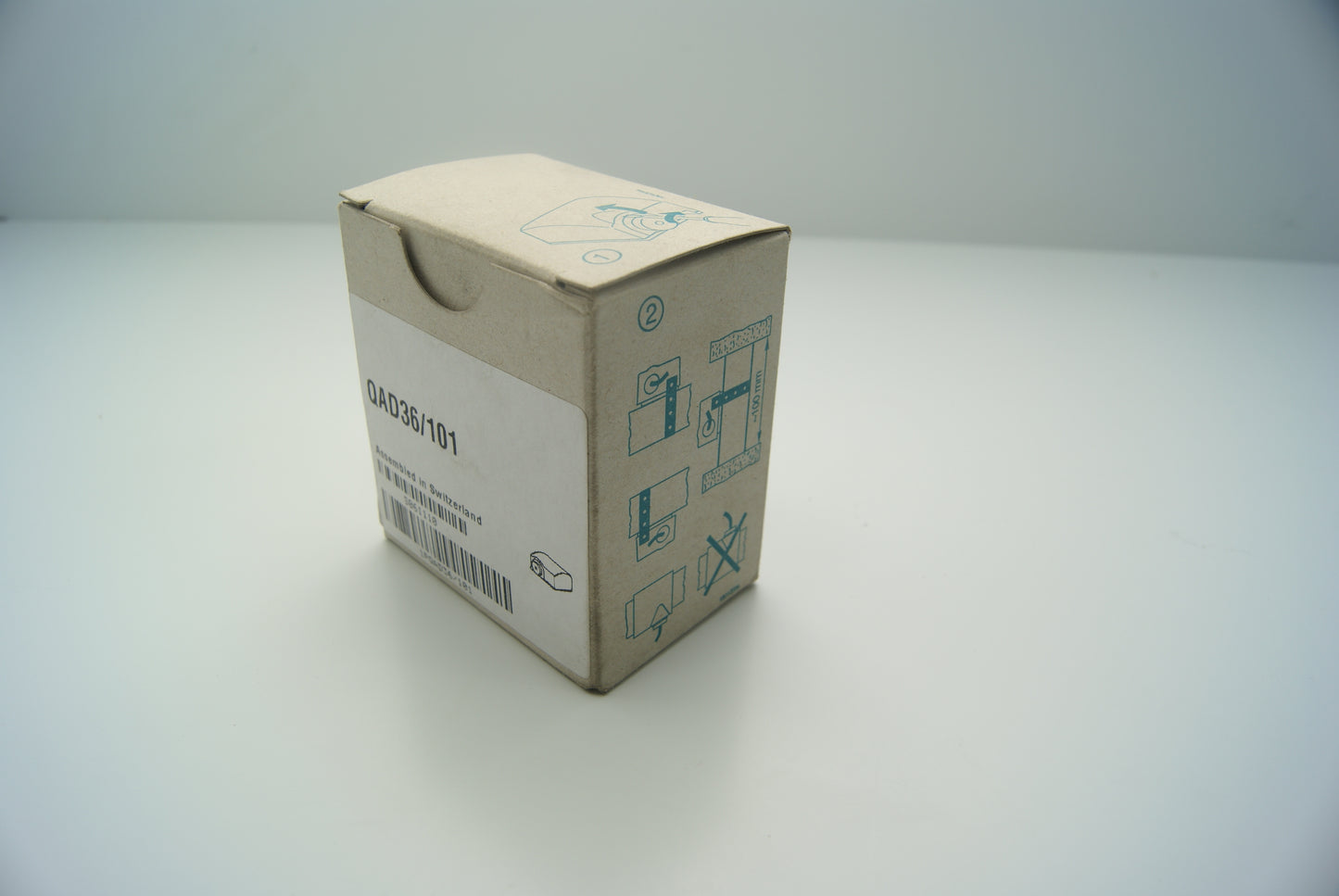

Surface-mounted temperature sensor, NTC 10k, -30...125 °C Siemens QAD 36/101 (Request price)

 Surface-mounted temperature sensor, NTC 10k, -30...125 °C Siemens QAD 36/101  (Request price)

S061110    /    1PQAD36/101

Contact temperature sensor QAD 36 is designed for measuring the temperature of the medium in the pipeline. The clamp band for mounting on the pipe is part of the sensor and is suitable for pipe diameters from 15mm up to 150mm.

Usage:
Regulation and limitation of heating water temperature.
Return water temperature limitation.
It is an integral part of the regulation for the Albatros2 RVS.
Features
Characteristic NTC 10 kΩ at 25 °C
Response time 6s.

Product standard:                       EN 60730-1
Automatic electrical controls for household
and similar use

EU conformity (CE): 8000073890

Operation:  As per EN 60721-3-3
Climatic conditions: Class 3K5
Temperature (housing): –5...+ 50 °C
Humidity (housing):  5...95 % r.h.

Transport: As per EN 60721-3-2
Climatic conditions: Class 2K3
Temperature: –25...+ 70 °C
Humidity:  <95 % r.h.
Mechanical conditions:  Class 2M2

Protection degree of housing:  IP 42 according to EN 60529
Protection class:  III according to EN 60730-1
Insulation resistance: >10 M
Insulation voltage: >500 V

Electrical connections:
Connection terminals: Interchangeable
Color:  RAL 7016 (anthracite)

Weight:  0.080 kg

Price 1.01 = negotiated price

Made in Switzerland.
