YAZAKI 7116-6046, Lots No: 1404-0064 AUTOMOTIVE CONNECTORS LINEUP / Connector Terminal Female

YAZAKI 7116-6046, Lots No: 1404-0064 AUTOMOTIVE CONNECTORS LINEUP / Connector Terminal Female

€1,01 EUR
€1,01 EUR
Sale Ausverkauft
Versand wird beim Checkout berechnet

3000 auf Lager

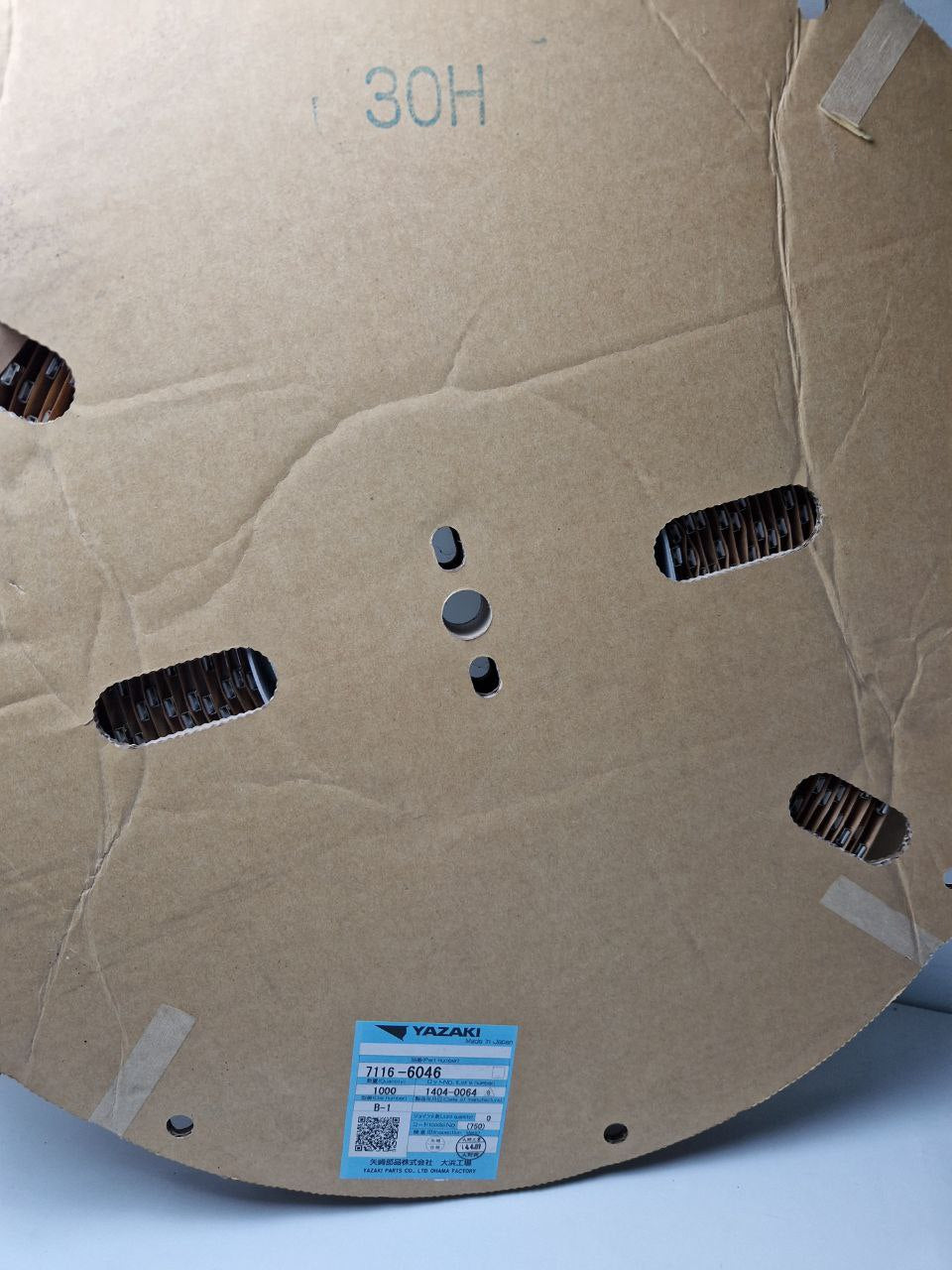

YAZAKI 7116-6046,

Lots No: 1404-0064

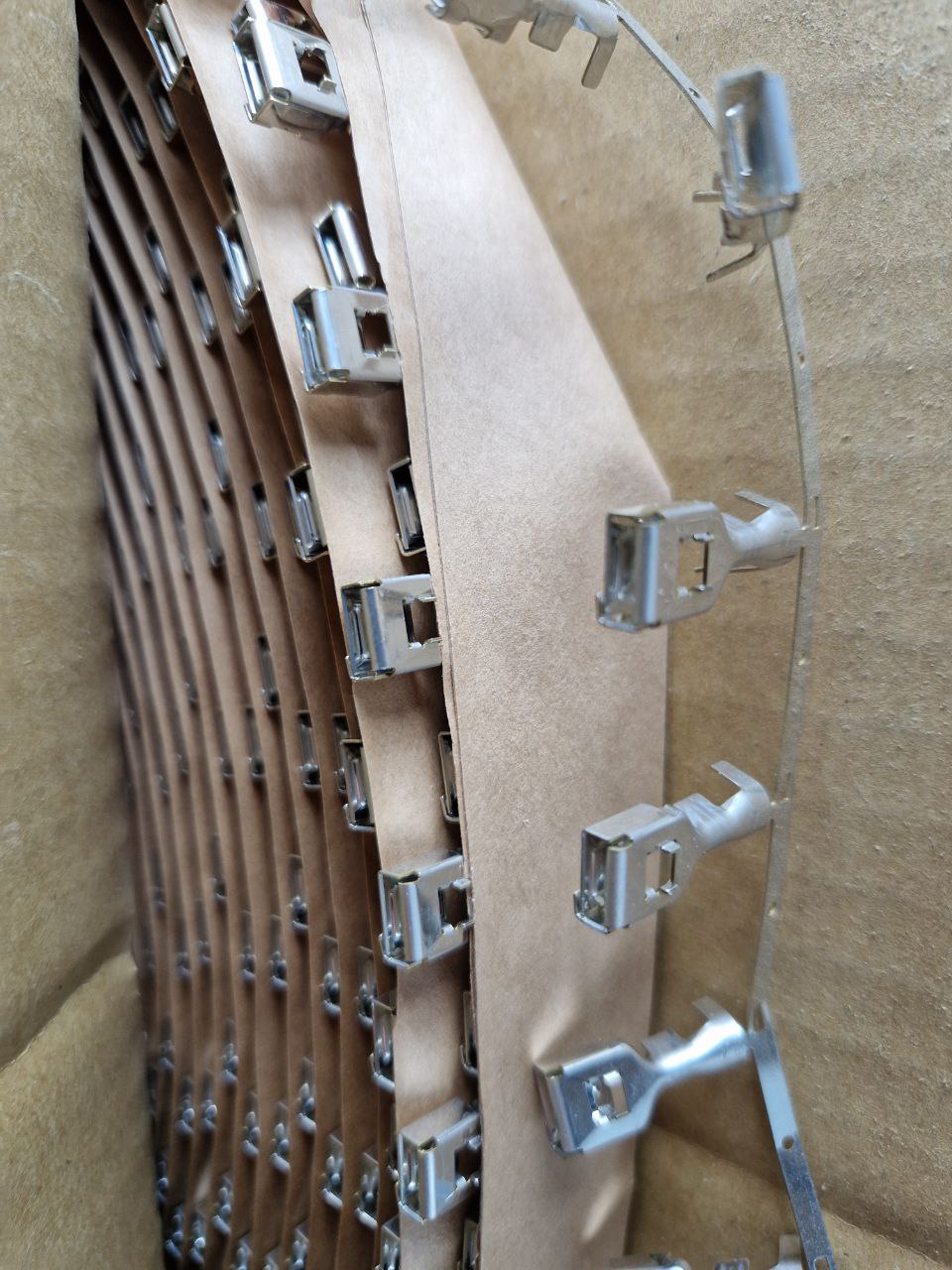

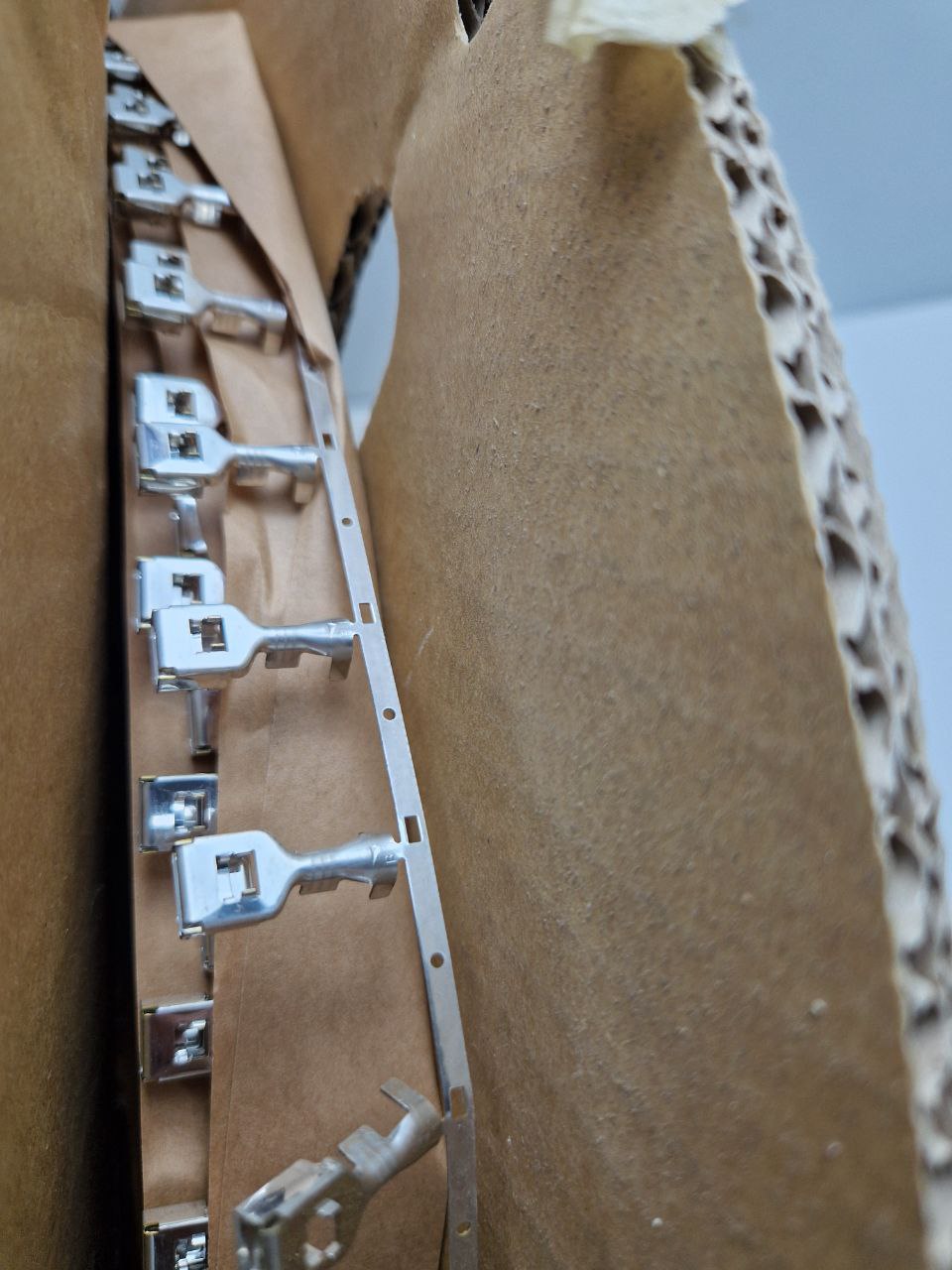

AUTOMOTIVE CONNECTORS LINEUP  /  Connector Terminal Female

Yazaki Part Number        7116-6046
Classified Parts               Terminal
Family                             8.0(312) Connector

Installation possible part
    Application wire
    (mm2)    		 Wire Type AVS AVS
    Size (Min) 2.00 3.00
    Size (Max) 2.00 3.00
    Wire seal 7157-3853-40
    7158-3022-80



    Allowable Current(Ref.) 42A(Ref) Low-voltage
    low-currentresistance    		 3milli ohm Max.(Initial)
    Insulation resistance 100Megohm Min.(at 500VDC) Withstand voltage 1000V AC (1min.)
    Temperature Range -40 to 120deg.C



    Replacement part number
      		Mating Part Numbers
      • 7114-6046
      Unsealed/Seald Sealed Male/Female Female
      Tab size (mm)
      • 8.00
      		 Materials COPPER ALLOY
      Size (mm)
      (Outer shape of parts)      		 Length 22.40 Plating Tin Plating
      Width 9.20
      Height 4.30
      Electric current classification
      • LARGE

      Made in Japan

      Price 1.01 = negotiated price
