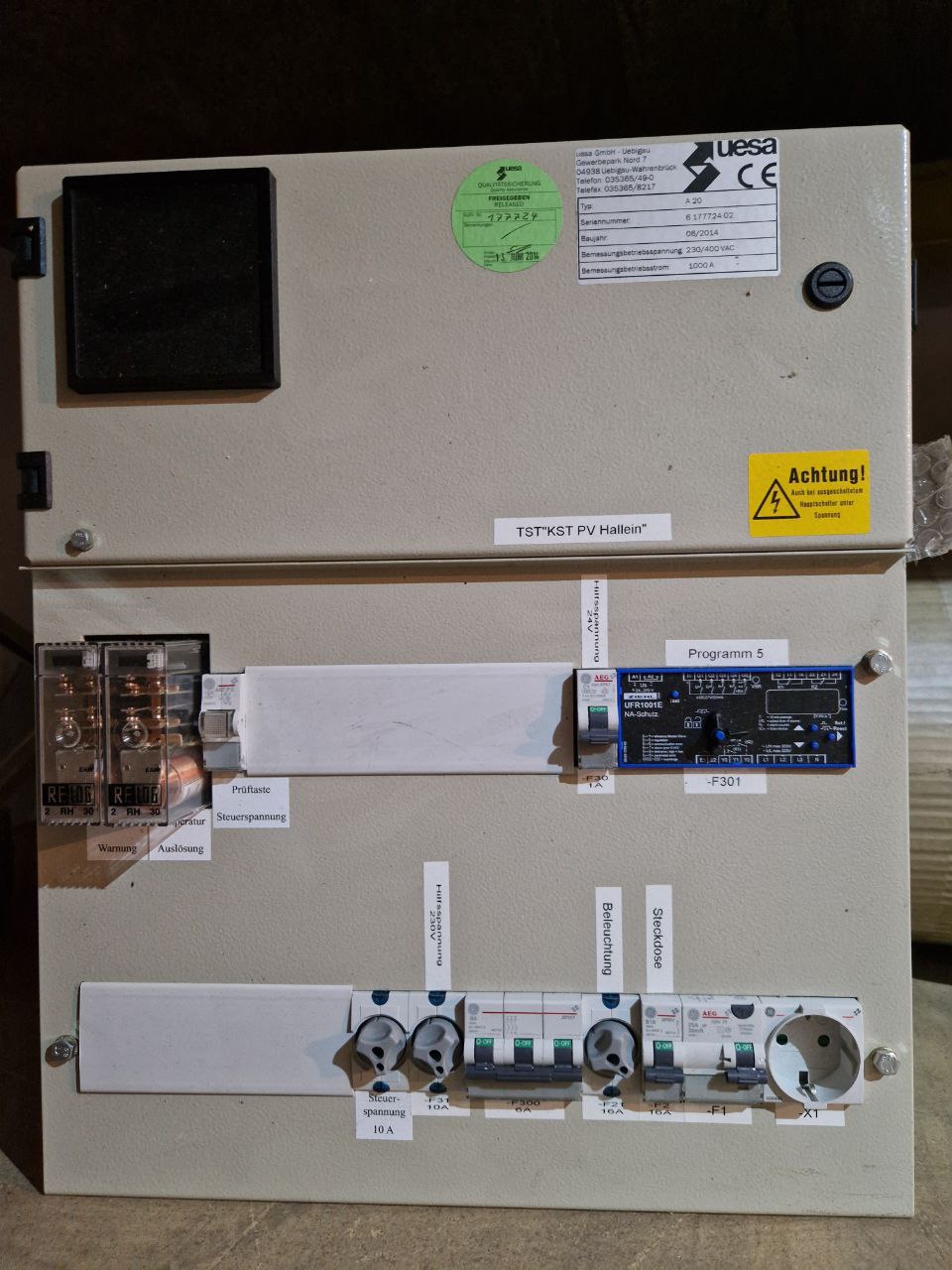

Tool kit for low-voltage distributions A20, uesa GmbH

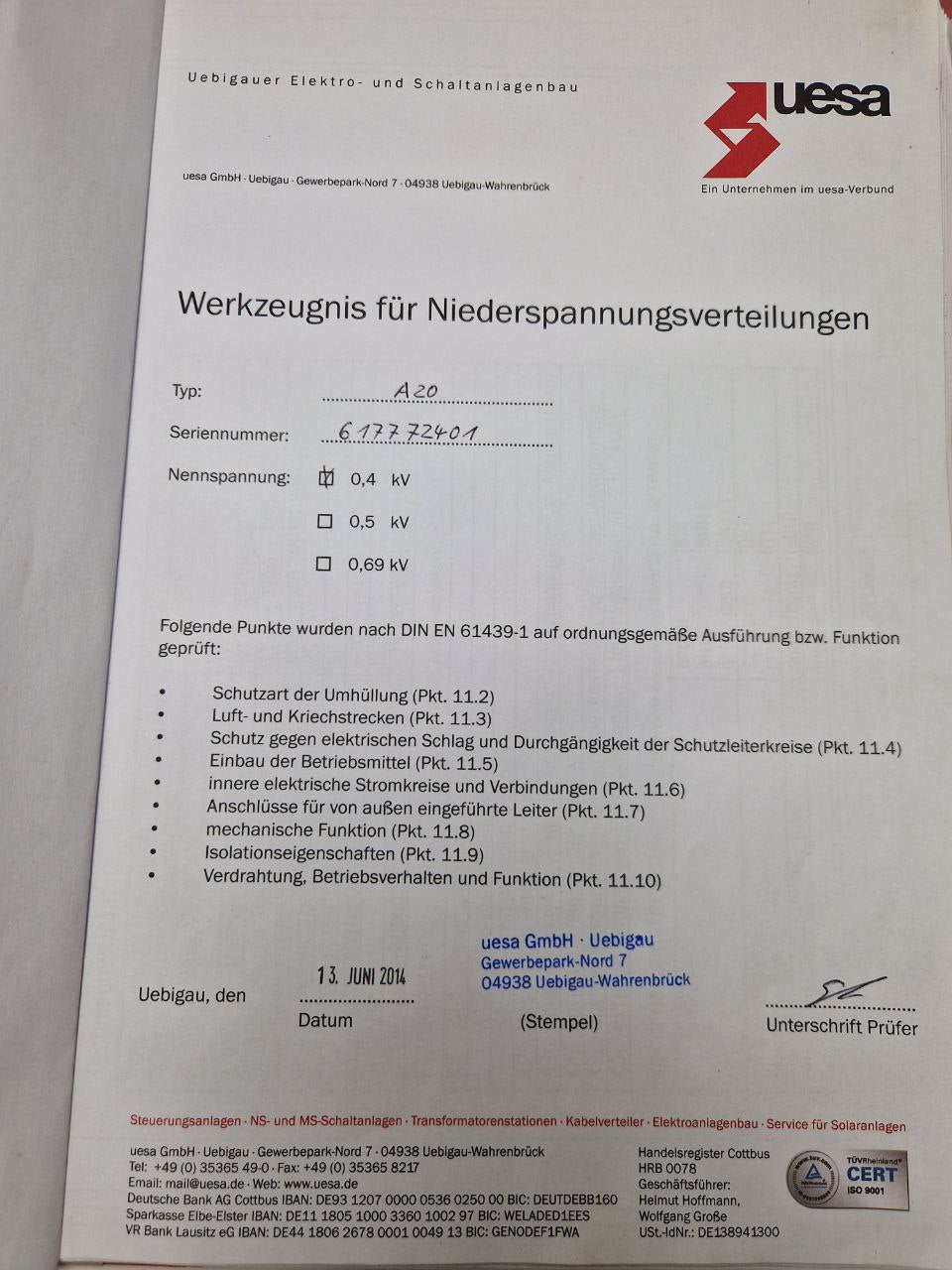

Tool kit for low-voltage distributions A20

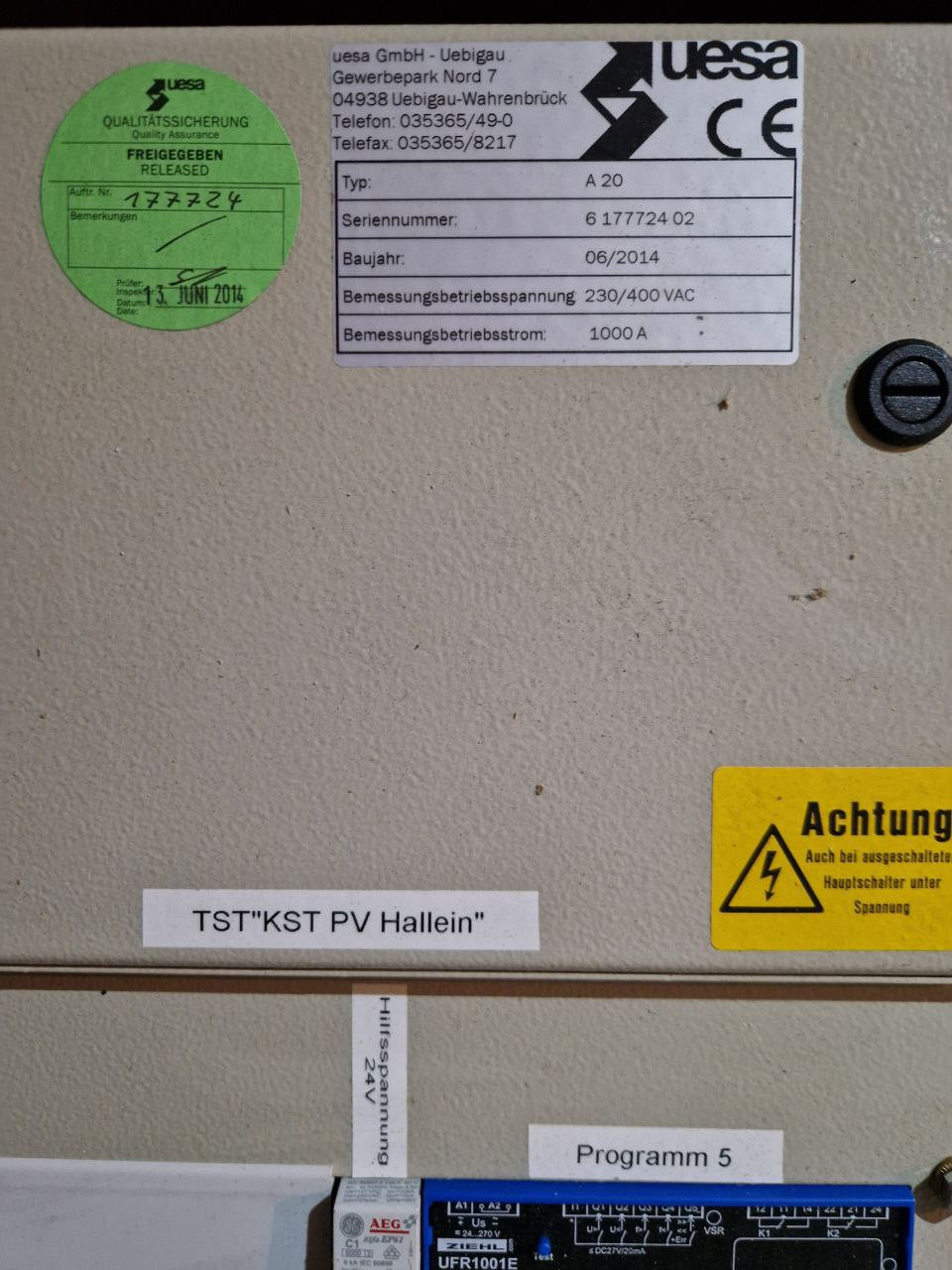

Type:
Serial number:                            617772401
Rated voltage:                            0.4kV
The following points were checked for proper execution and function in accordance with DIN EN 61439-1
checked:
Protection class of the enclosure (point 11.2)
Clearance and creepage distances (point 11.3)
Protection against electric shock and continuity of the protective conductor circuits (point 11.4)
Installation of operating equipment (point 11.5)
internal electrical circuits and connections (point 11.6)
Connections for conductors inserted from outside (point 11.7)
mechanical function (point 11.8)
Insulation properties (point 11.9)
Wiring, operating behavior and function (point 11.10)

uesa GmbH

Uebigau
Gewerbepark-Nord 7
04938 Uebigau-Wahrenbrück

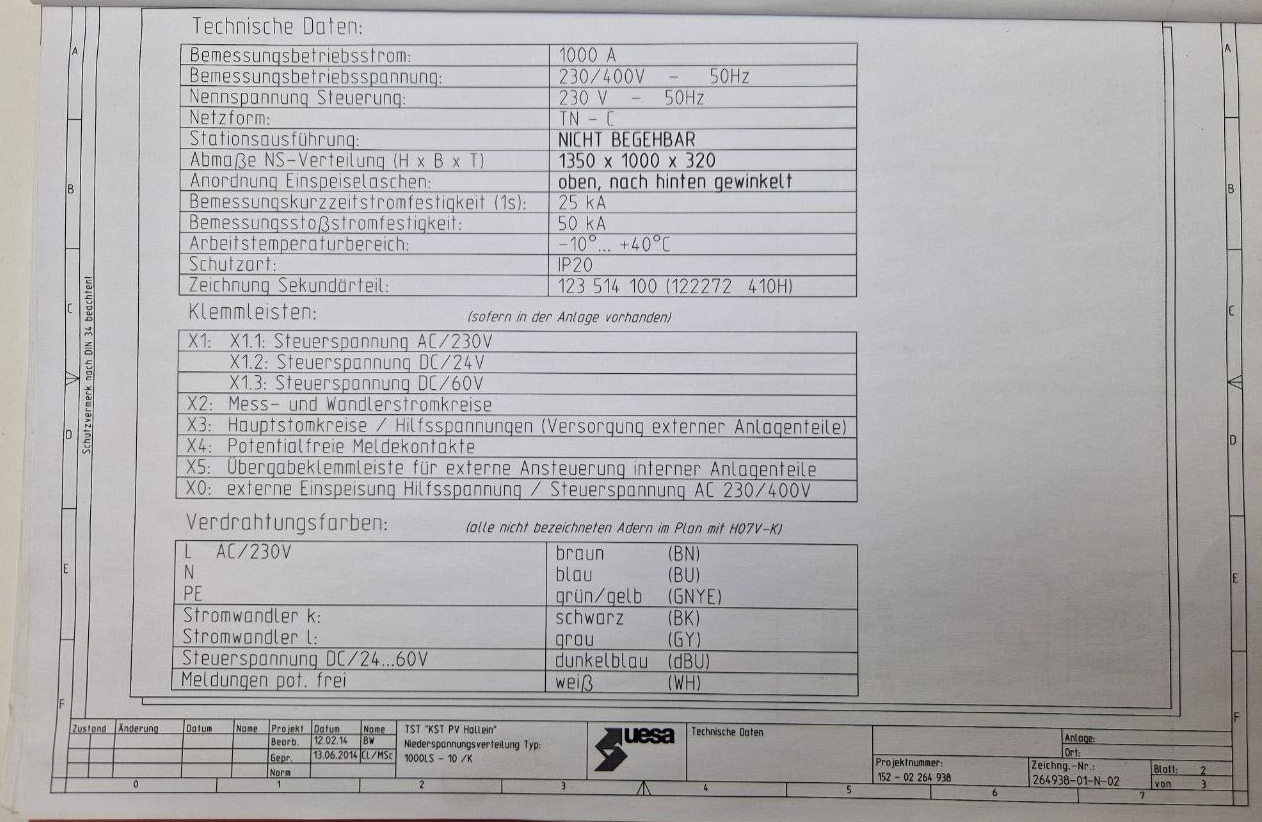

Specifications:
Rated operating current:                                    1000 A

Rated operating voltage:                                    230/400 V 50Hz

Rated control voltage:                                        230 V 50Hz

Pure form:                                                           TN - C

Station version:                                                   NOT AVAILABLE

NS distribution dimensions (H x W x D)            1350 x 1000 x 320
Ribbon tab locations:                                         top, angled backwards
Rated short-time withstand current (1 s):          25 KA
Rated impulse current:                                       50 KA
Operating temperature range:                           -10°... +40°С
Protection class:                                                 IP20
Drawing of the secondary part:                         123 514 100 (122272 410H)

Made in Germany

Price 1.01 = negotiated price
