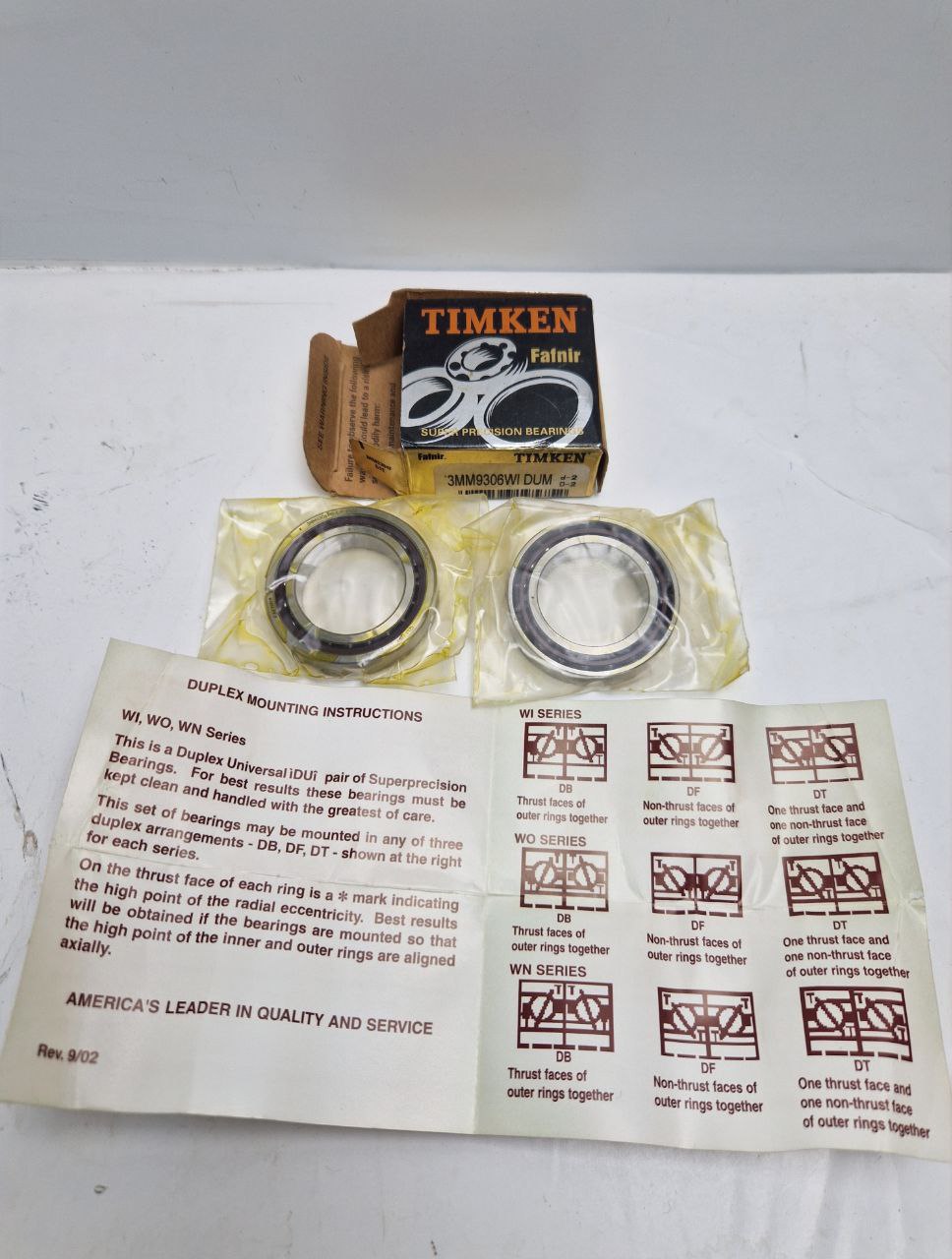

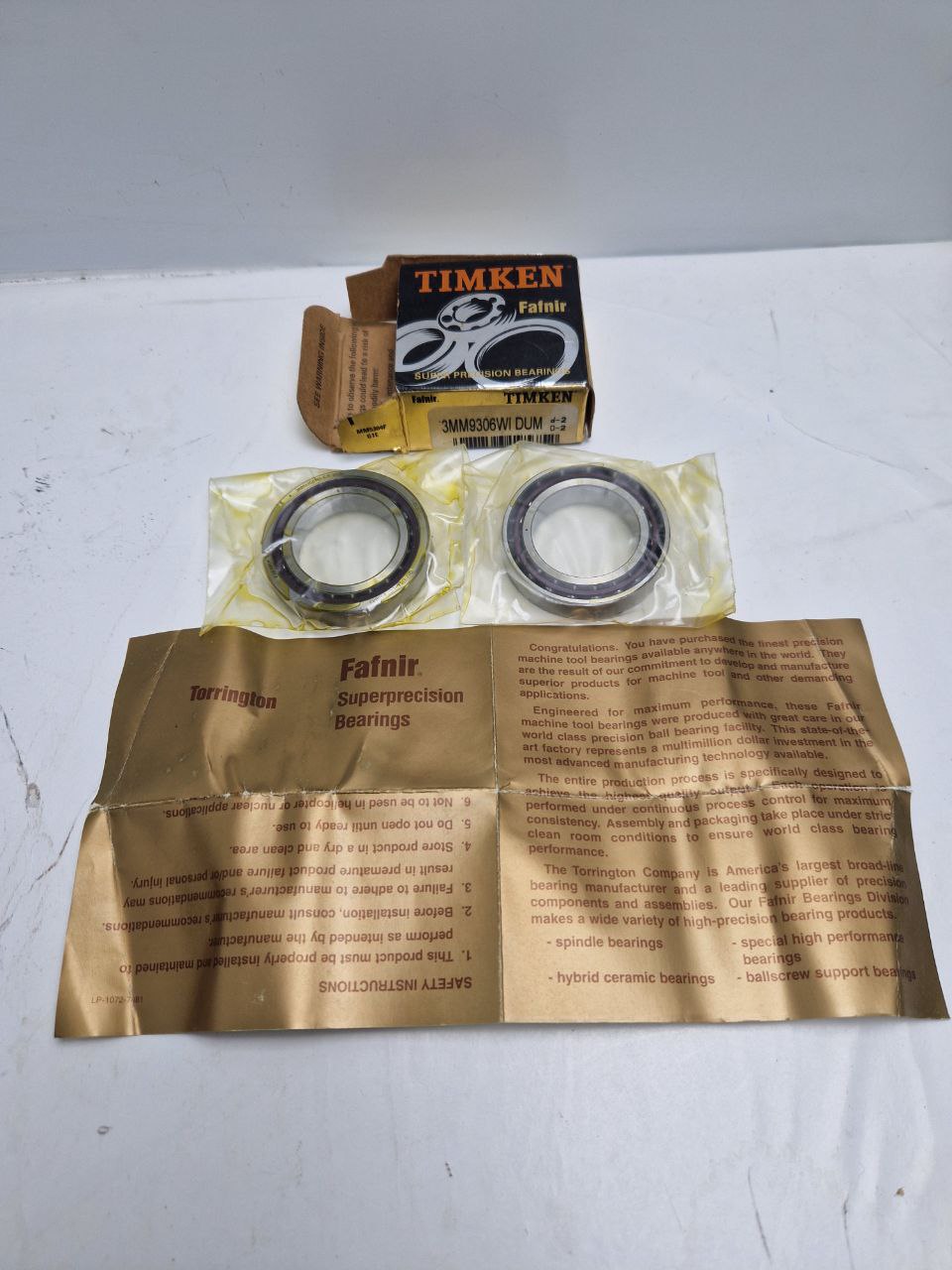

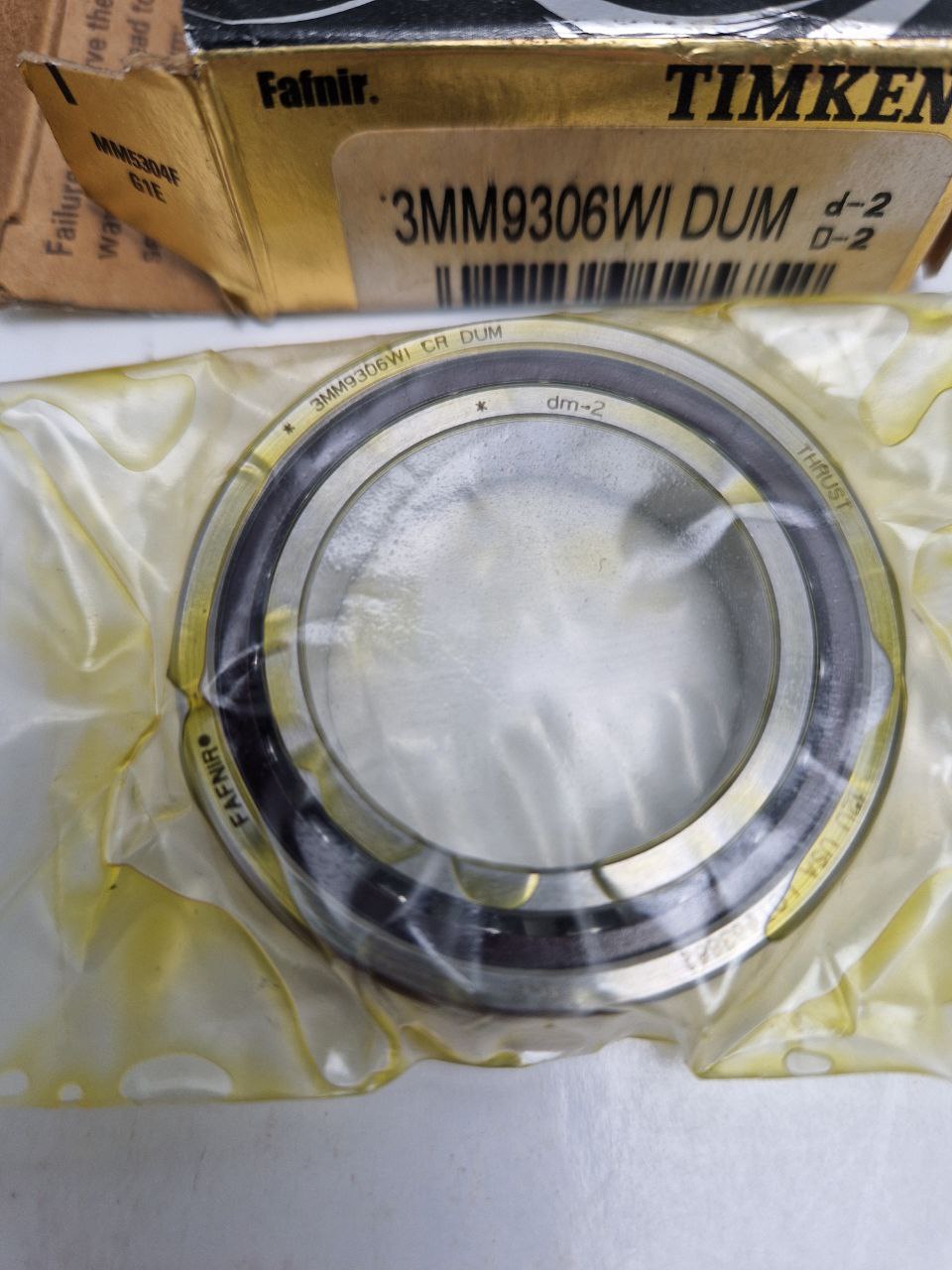

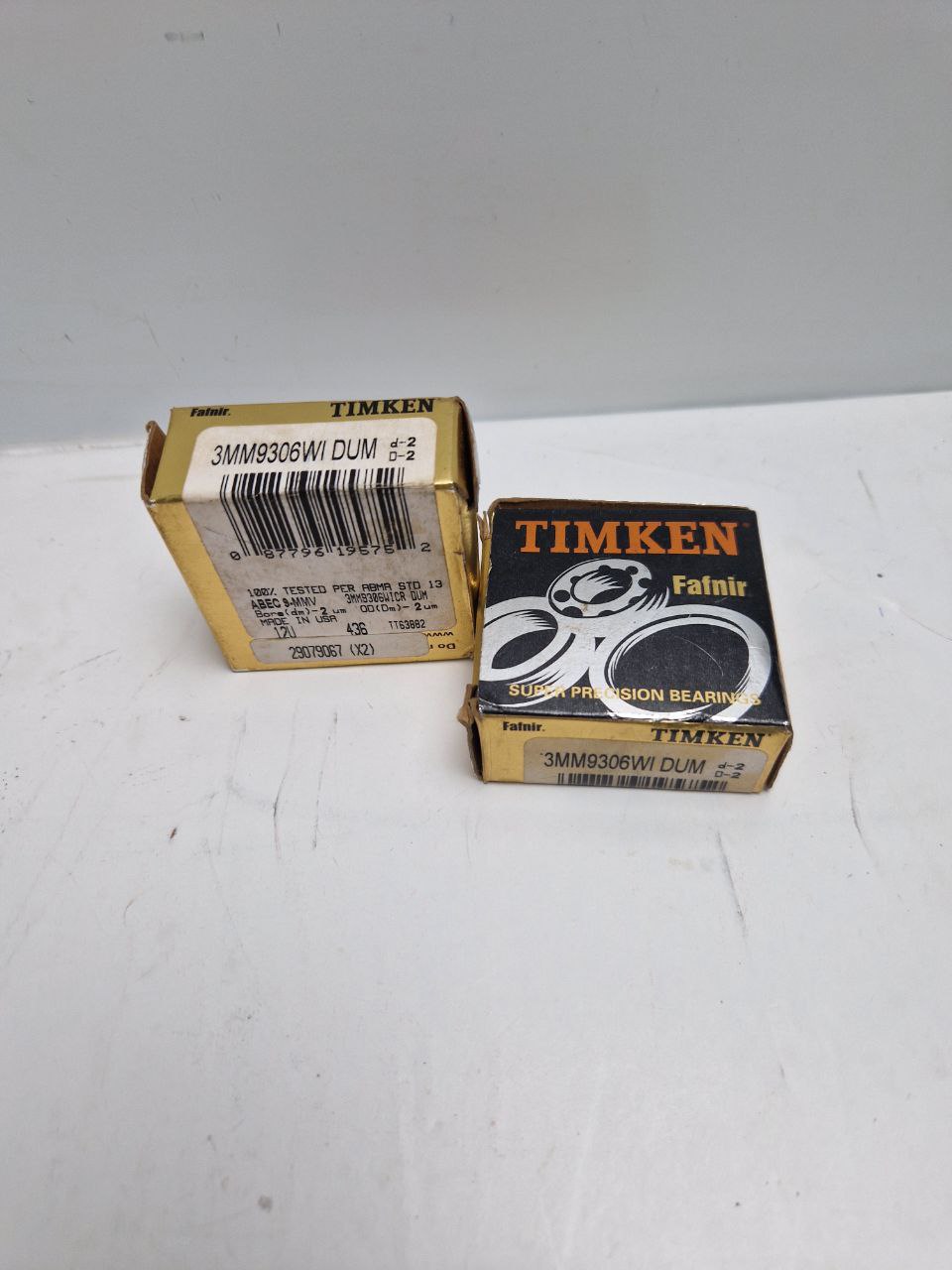

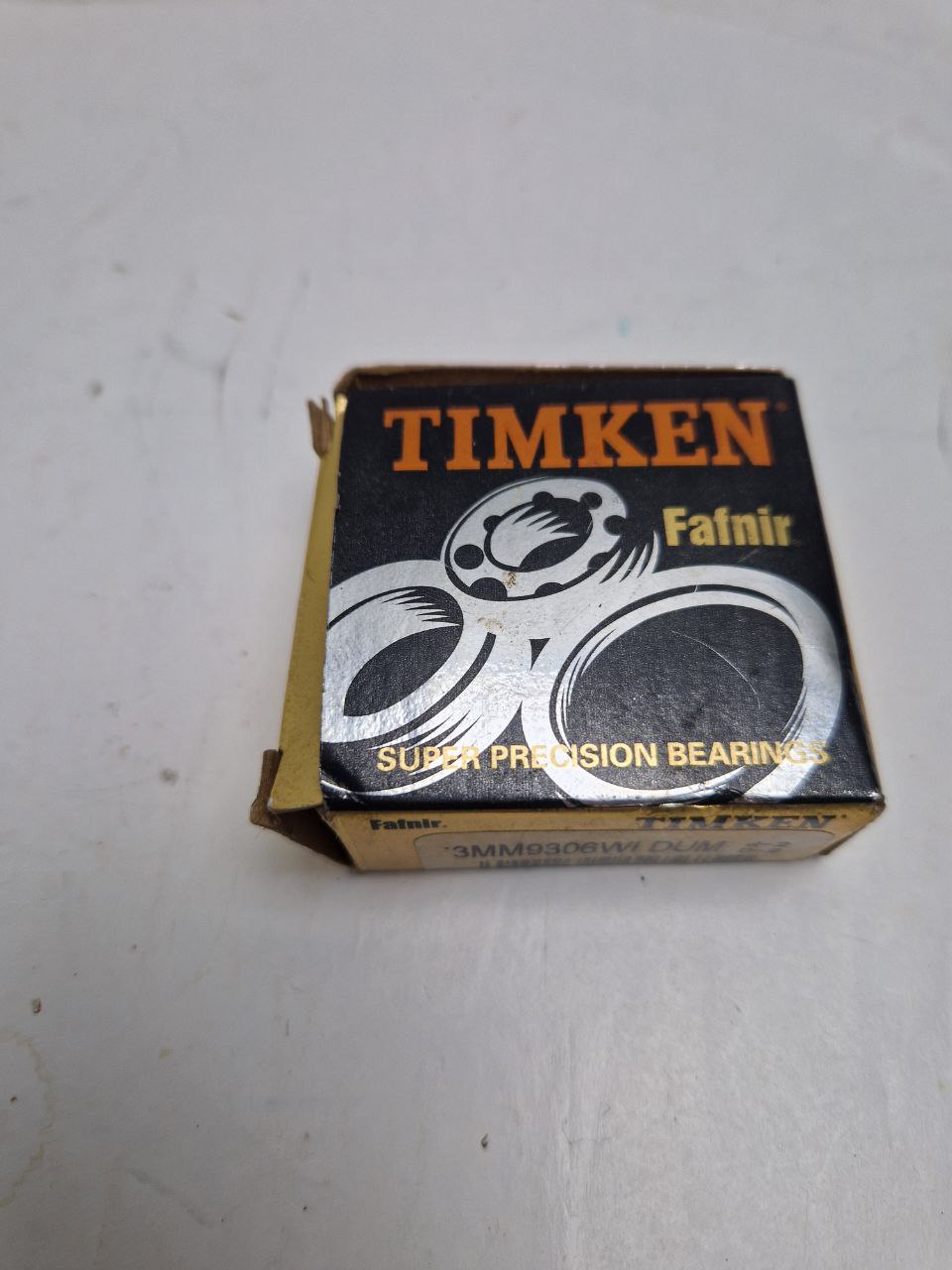

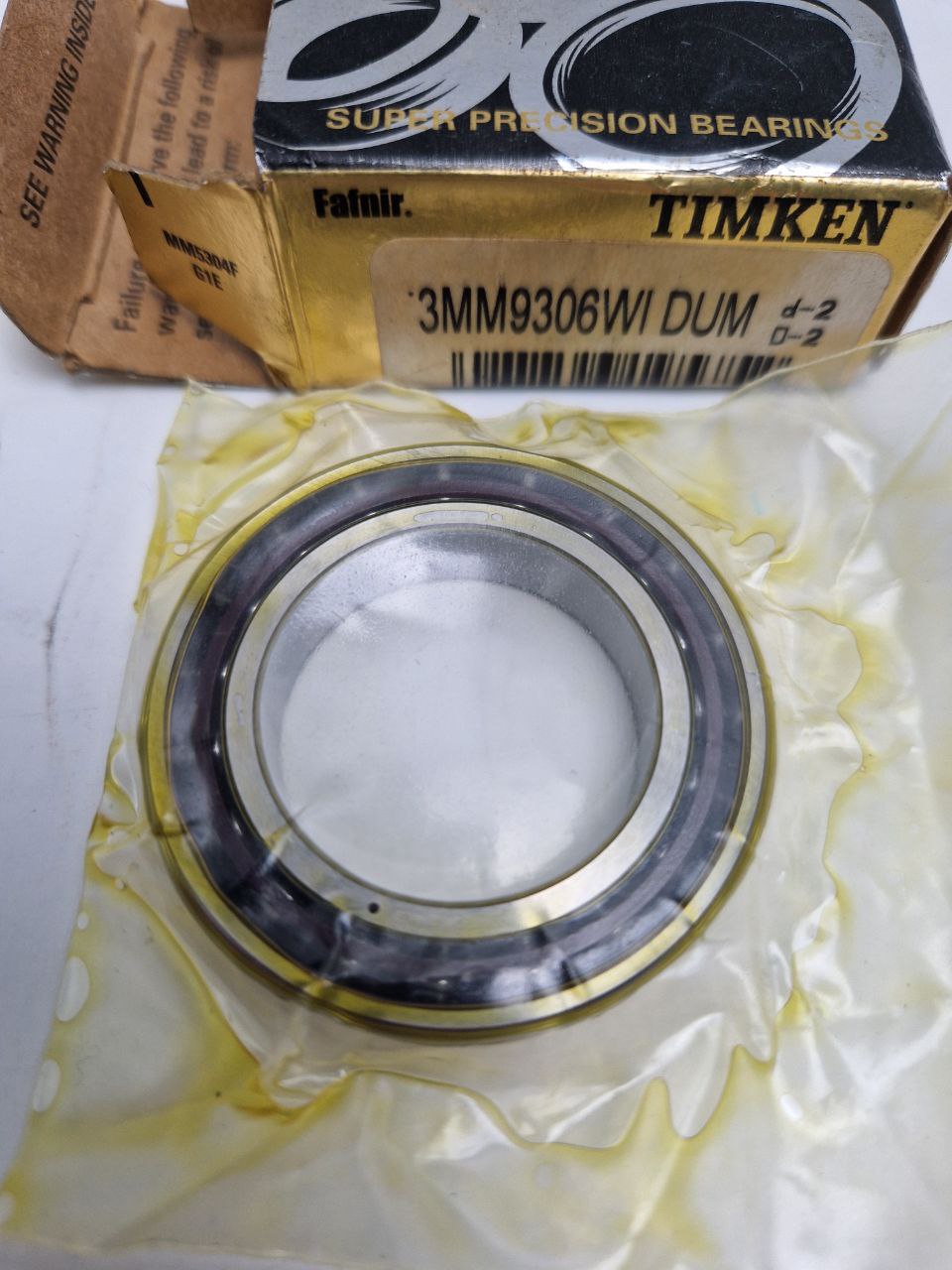

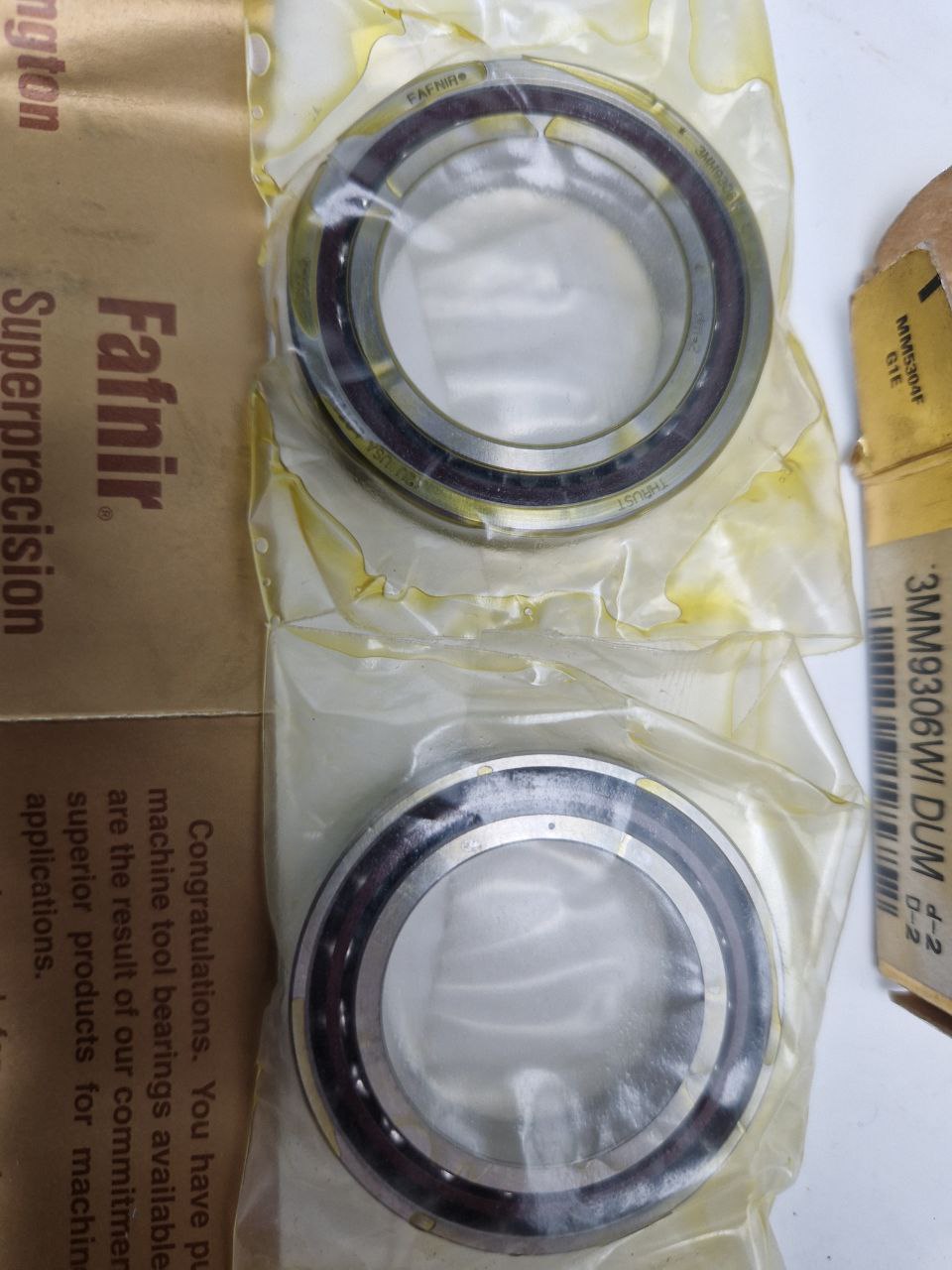

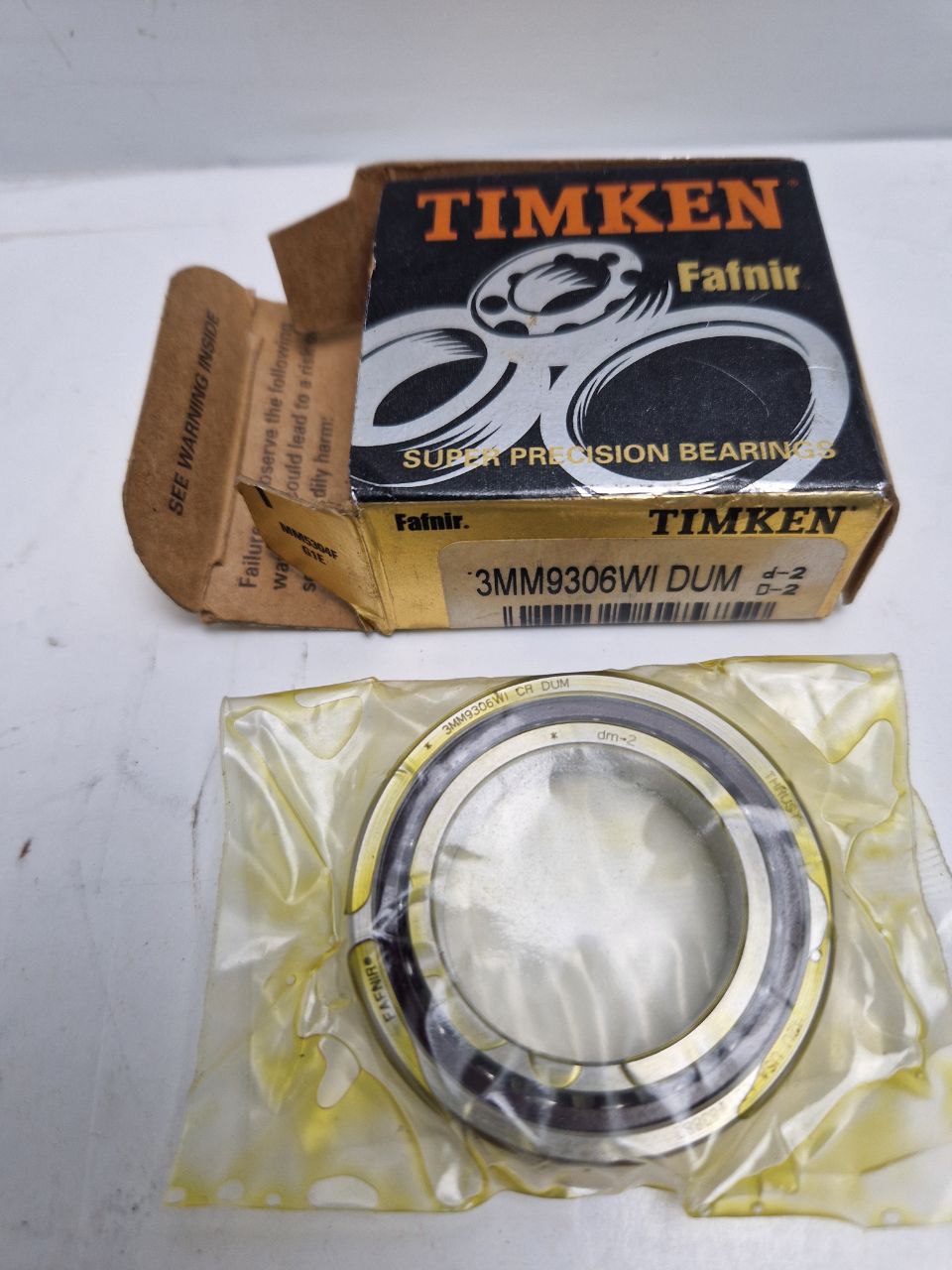

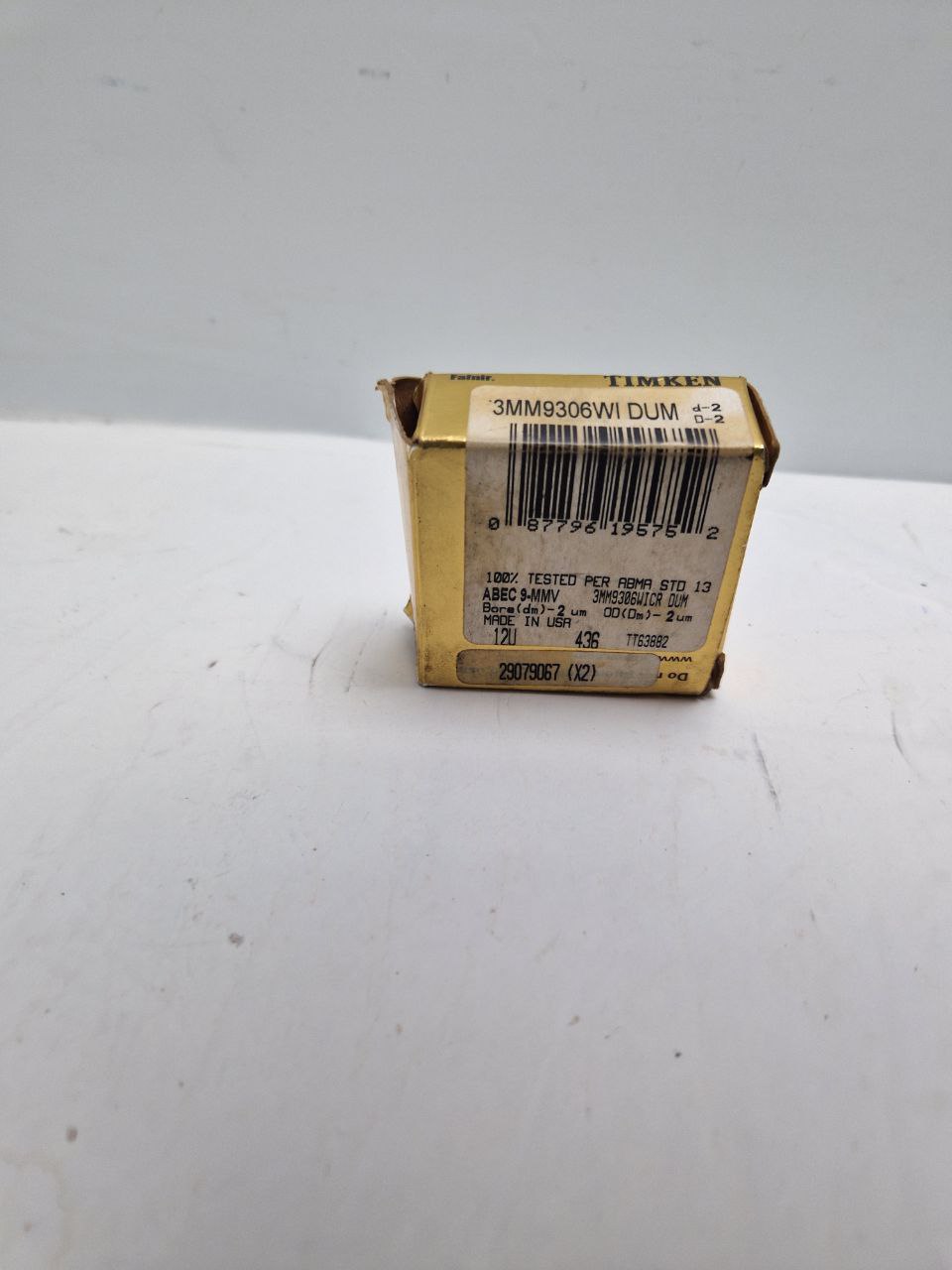

TIMKEN FAFNIR 3MM9306 WI CR DUM BRG (Request price)

TIMKEN FAFNIR 3MM9306 WI CR DUM BRG  (Request price)

12u 436 TT63882
290790067(X2)
Barcode: 087796195752

Bore Type:  Straight
Bore Diameter:  30 mm
Outside Diameter:  47 mm
Overall Width:  9 mm
Closure Type: Open
Snap Ring Included: Without Snap Ring
Contact Angle:  25 °
Ball Screw Application:  Not for Ball Screws
Internal Clearance:  C0
Precision Rating:  ABEC 7 (ISO Class 4)
Radial Dynamic Load Capacity:  1900 lbf
Bearing Type:  Spindle & Precision Machine Tool Angular Contact Bearings
Radial Static Load Capacity:  1080 lbf
Max Rpm:  26700 rpm
Cage Material:  Phenolic Resin
Finish Coating:  Uncoated
Fillet Radius:  0.3 mm
Series:  3MM9300WI
Standards Met:  ABMA
Manufacturer Upc Number:  087796195752
UPC_NO:  087796195752
Description:  3MM9306 WI CR DUM BRG
Weight:   0.23 lbs
Product Type:  Spindle & Precision Machine Tool Angular Contact Bearings

Weight:  0.052 kg

Price 1.01 = negotiated price

Made in USA.
