REL-MR- 12DC/21-21 - Single relay 2961257, TE Connectivity 4-1936026-4 antistatik PHOENIX CONTACT

REL-MR- 12DC/21-21 - Single relay 2961257 PHOENIX CONTACT

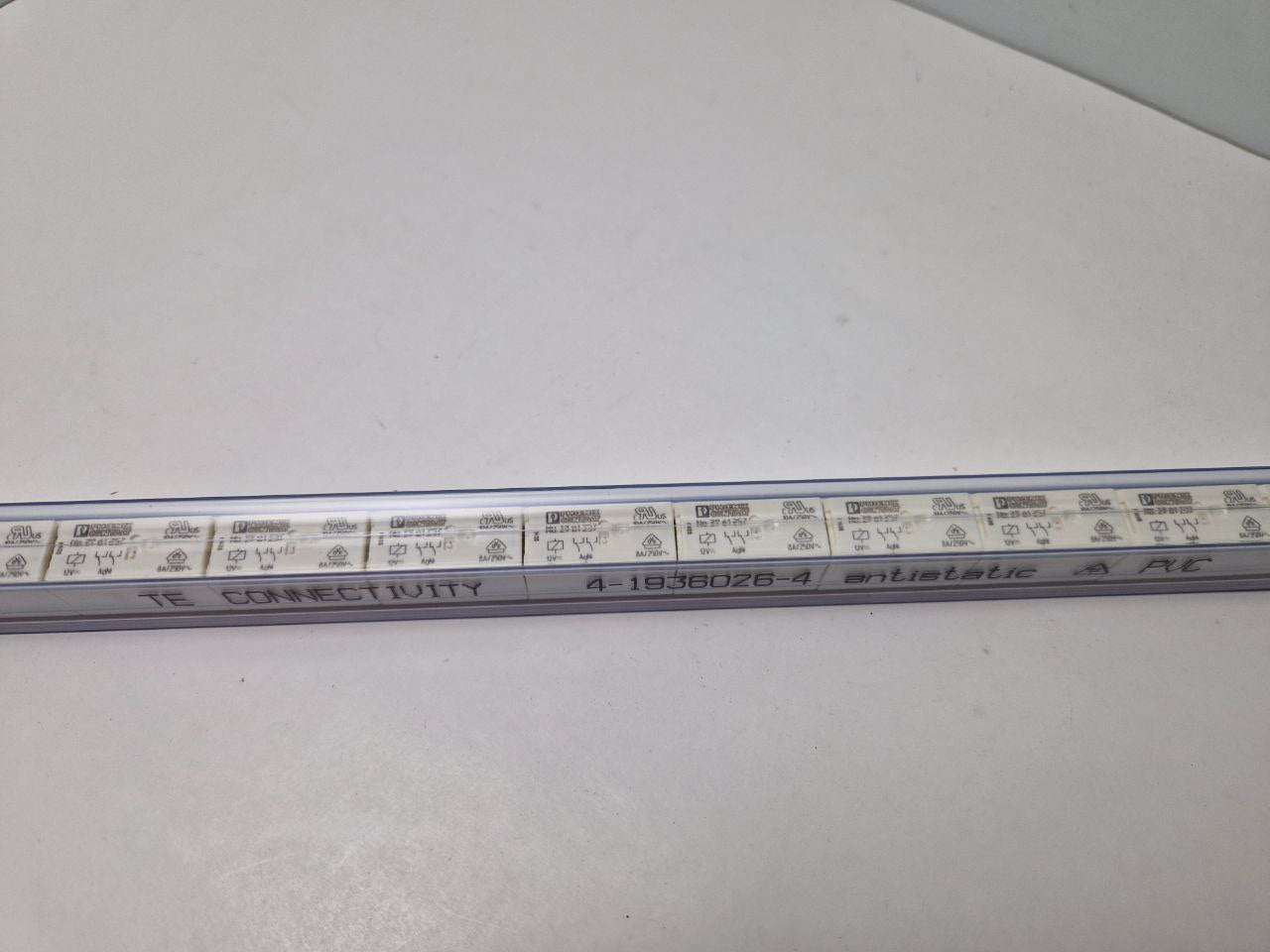

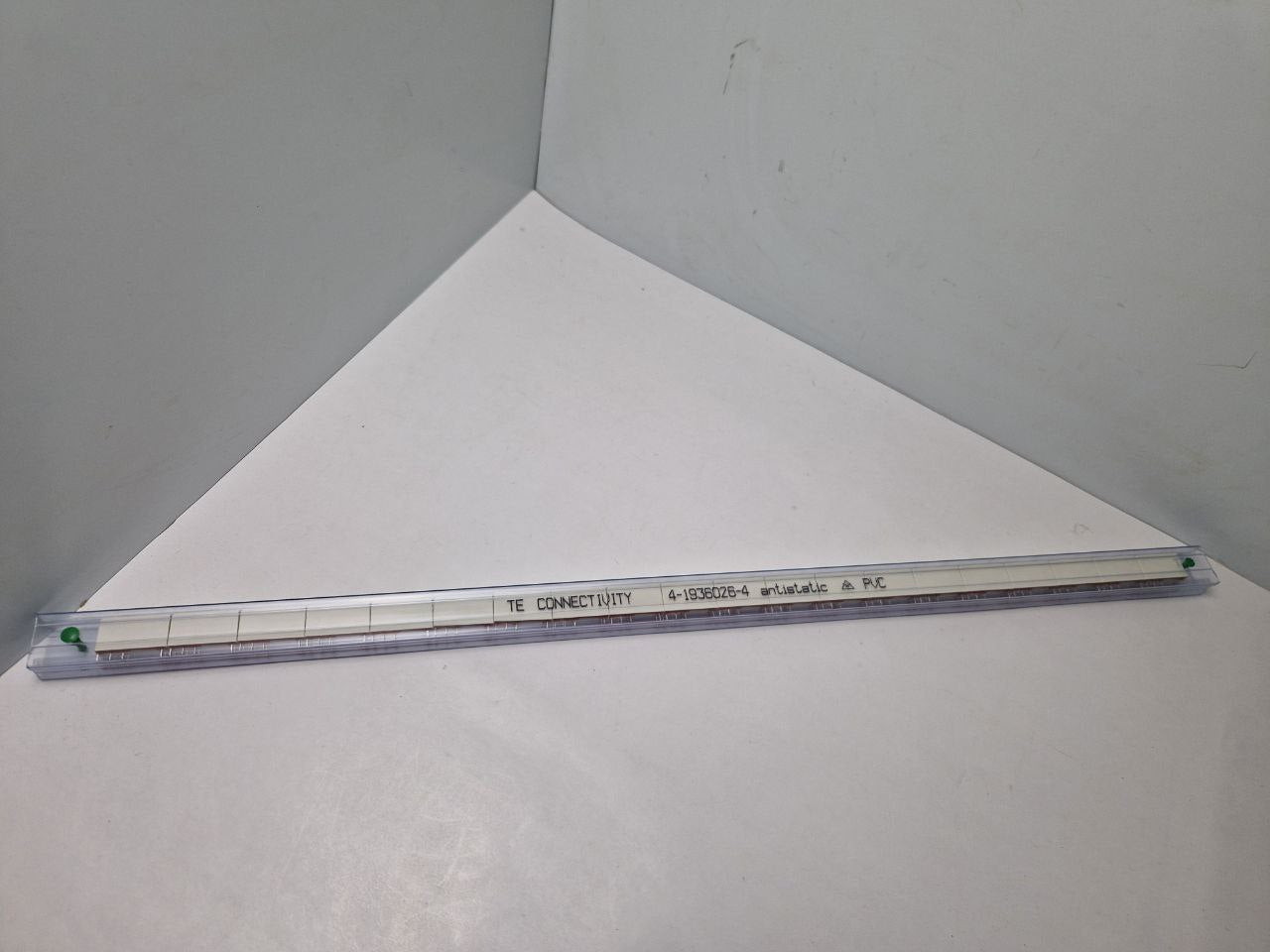

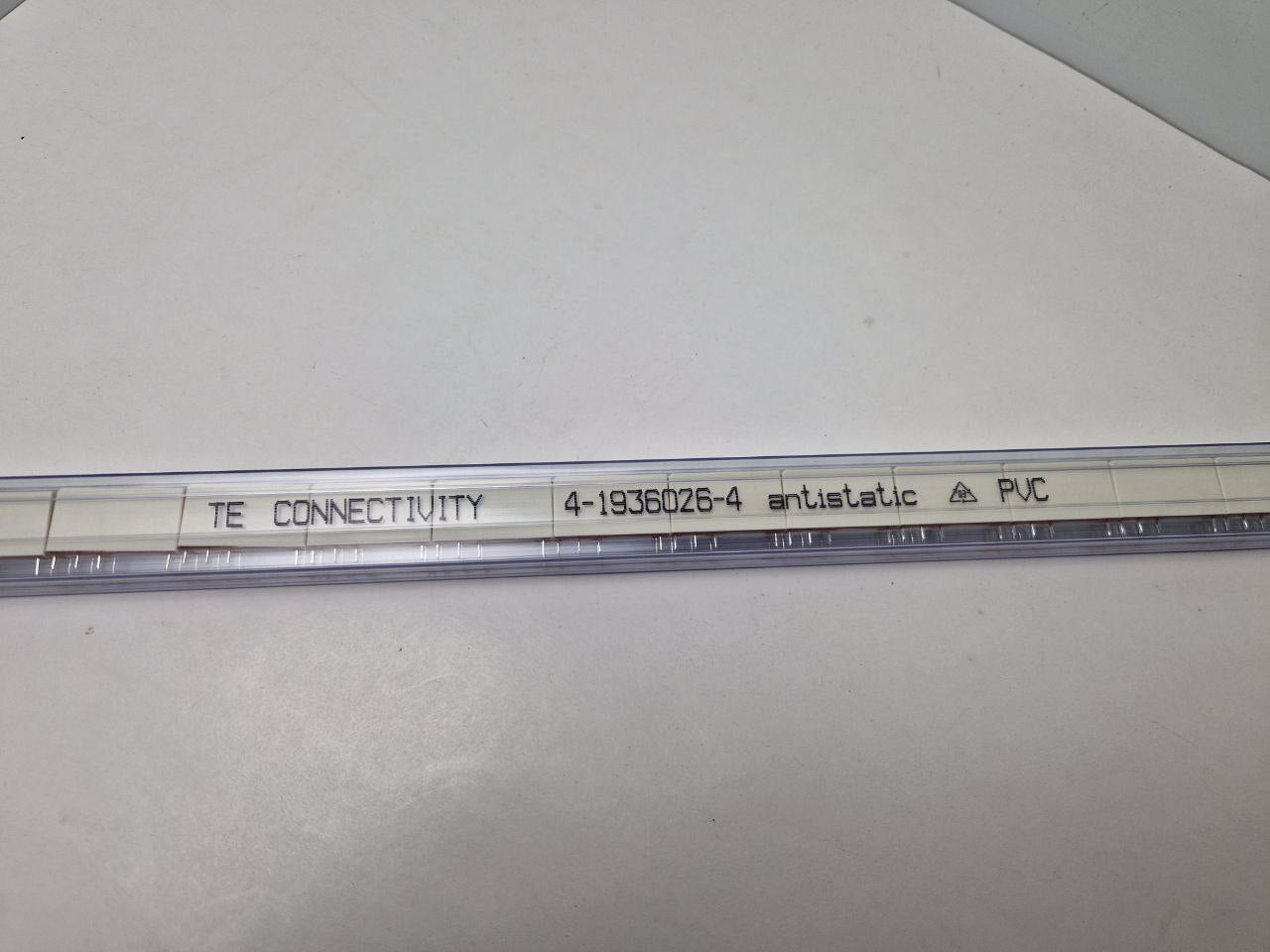

 TE Connectivity 4-1936026-4 antistatik

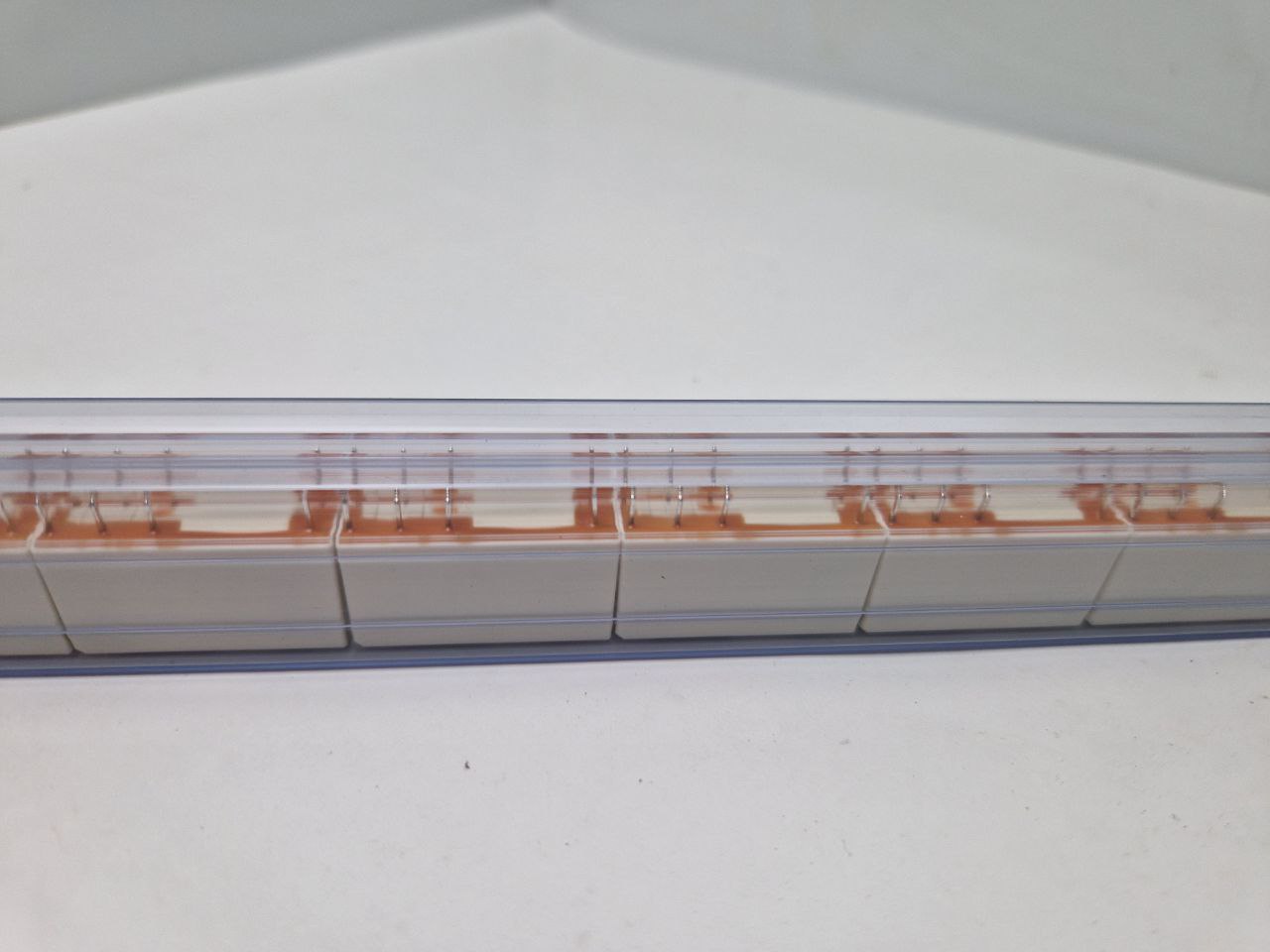

Plug-in miniature power relay, with power contact, 2 changeover contacts, input voltage 12 V DC

Maximum power dissipation for nominal condition              0.4 W
Test voltage (Winding/contact)                             5 kV AC (50 Hz, 1 min., winding/contact)
Test voltage (Contact/contact)                              2.5 kV AC (50 Hz, 1 min., contact/contact)

Nominal input voltage UN                          12 V DC
Input voltage range                                     7.8 V DC ... 29.76 V DC
Input voltage range in reference to UN      see diagram
Drive and function                                      monostable
Drive (polarity)                                            non-polarized
Typical input current at UN                        33 mA
Typical response time                                7 ms
Typical release time                                   3 ms
Coil resistance                                           360 Ω ±10 % (at 20 °C)

Contact switching type    2 changeover contacts
Type of switch contact    Single contact
Contact material    AgNi
Maximum switching voltage    250 V AC/DC
Minimum switching voltage    5 V (at 10 mA)
Limiting continuous current    8 A
Maximum inrush current    25 A (20 ms)
Min. switching current    10 mA (At 5 V)
Interrupting rating (ohmic load) max.    190 W (at 24 V DC)
85 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
60 W (at 220 V DC)
2000 VA (for 250 V AC)
Switching capacity    2 A (at 24 V, DC13)
0.2 A (at 250 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 250 V, AC15)
Motor load according to UL 508    1/4 HP, 120 V AC
1/2 HP, 240 V AC
