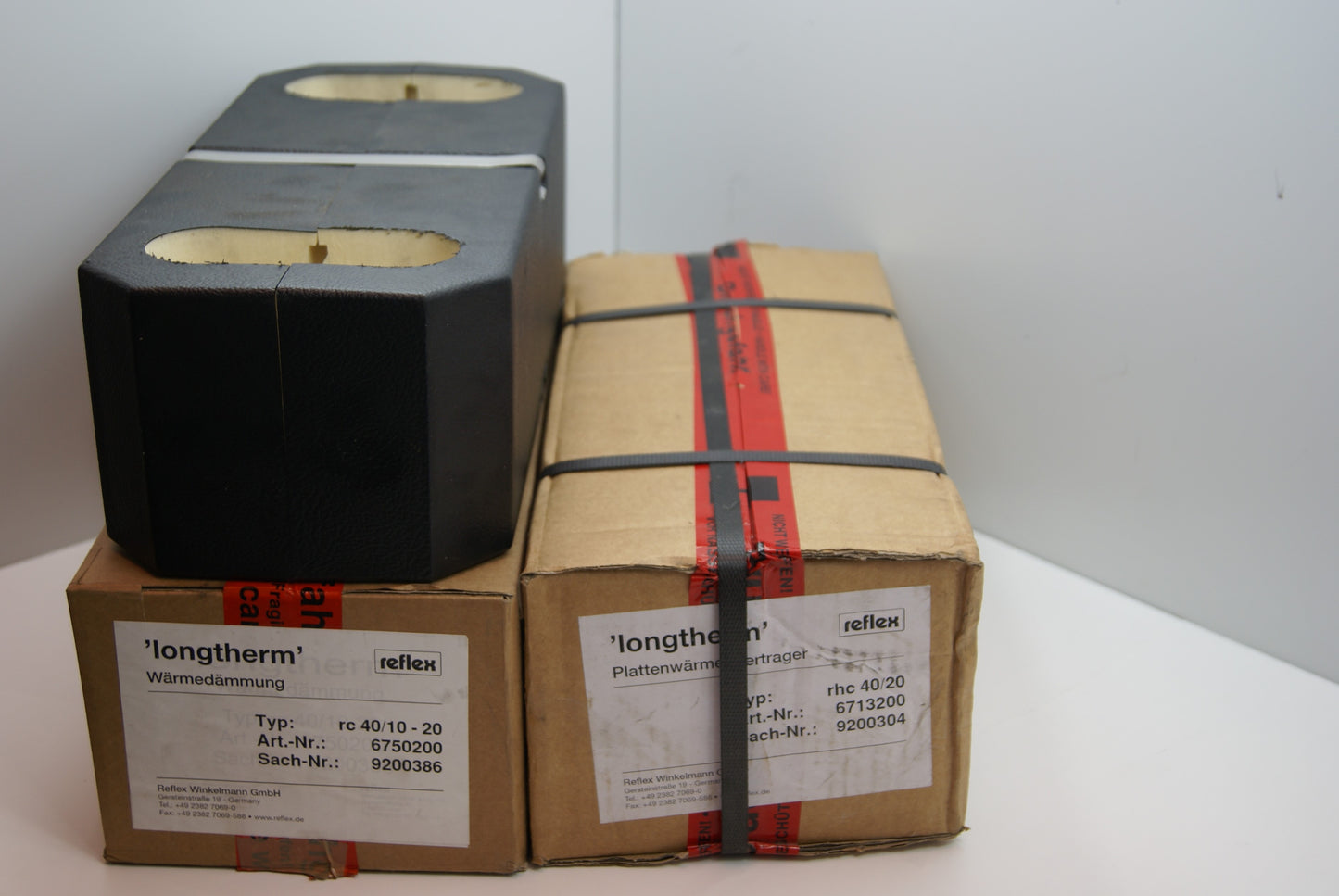

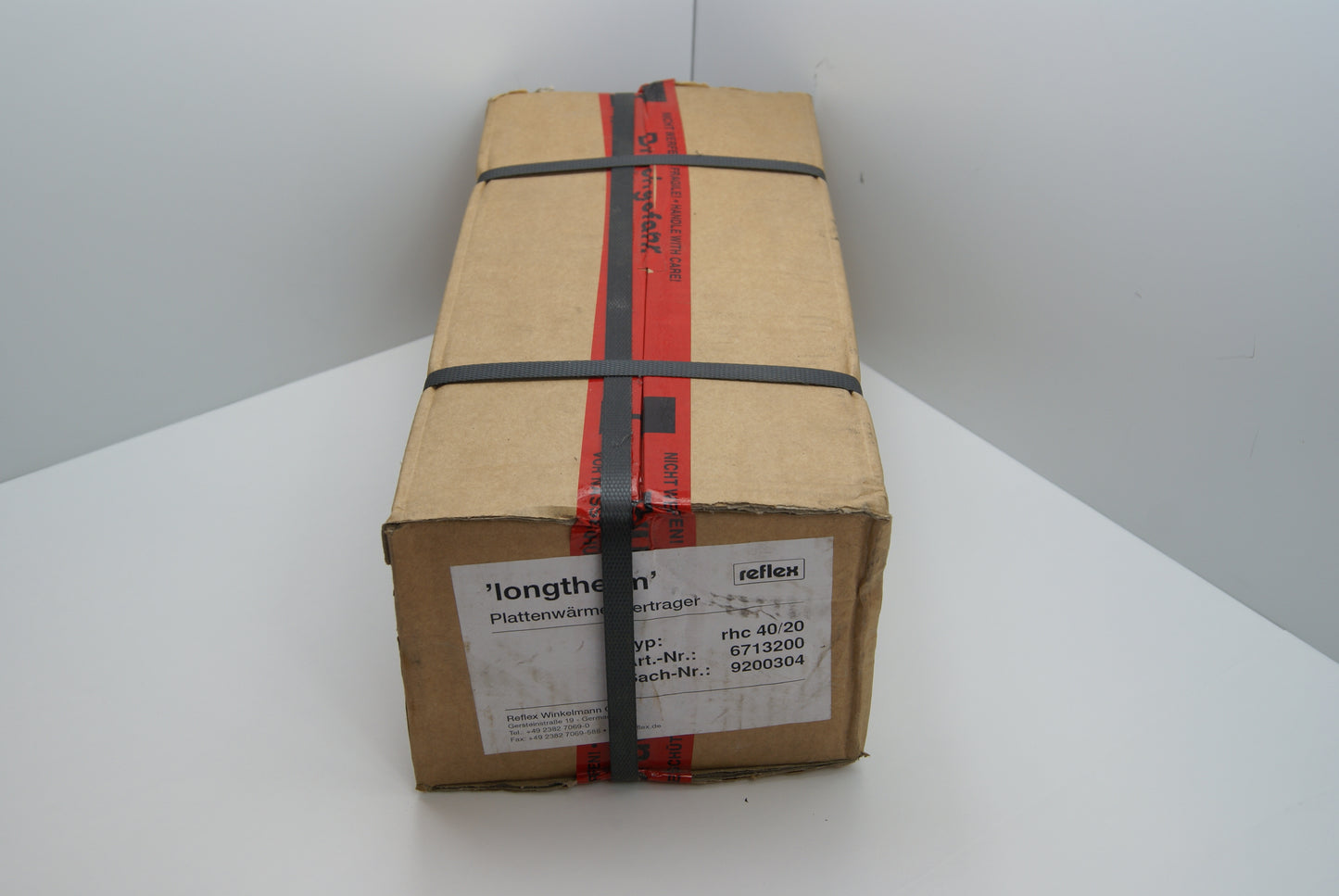

Reflex Longtherm rhc 40-20

Reflex Longtherm rhc 40-20

reflex 'longtherm', soldered plate heat exchanger made of stainless steel (1.4404) vacuum-soldered with copper solder, with threaded connection.

Tested in accordance with Pressure Equipment Directive 97/23/EC.

Type: rhc 40/20

Output: 0 kW

Inlet temp. s1/s2: 0 °C

Outlet temp. s1/s2: 0 °C

Inlet temp. s3/s4: 0 °C

Outlet temp. s3/s4 : 0 °C

Volume flow s1/s2 : 0 m¦/h

Volume flow s3/s4 :0 m¦/h

Pressure loss s1/s2 : 0 kPa

Pressure loss s3/s4 : 0 kPa

Excess area : 0 %

Length : 76 mm

Width : 124 mm

Height : 335 mm

Permissible operating pressure : 30 bar

Permissible operating temperature : 195 °C

Connections : G 1

Empty weight : 4.5 kg
