Pillow Block Unit UCP207

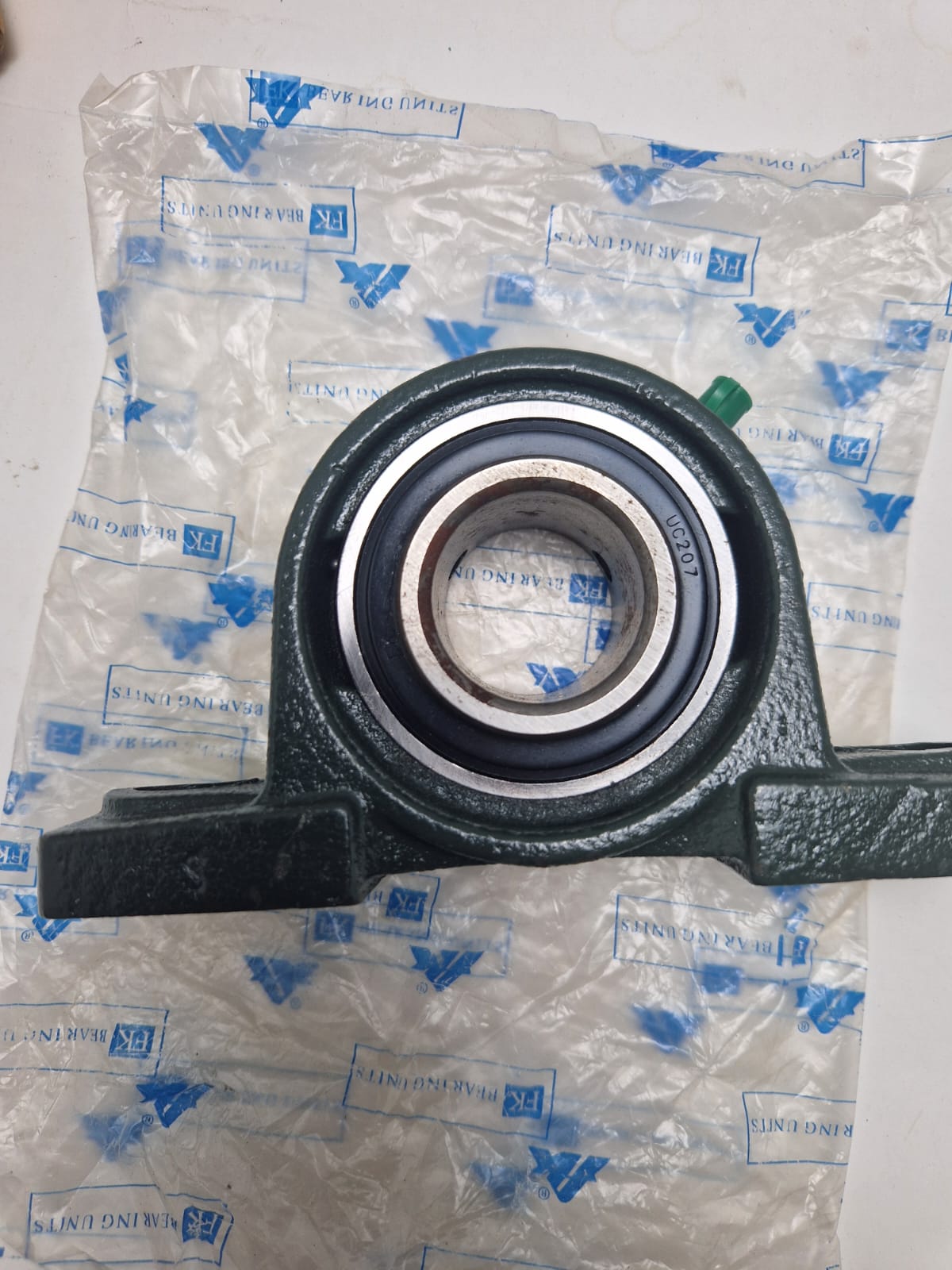

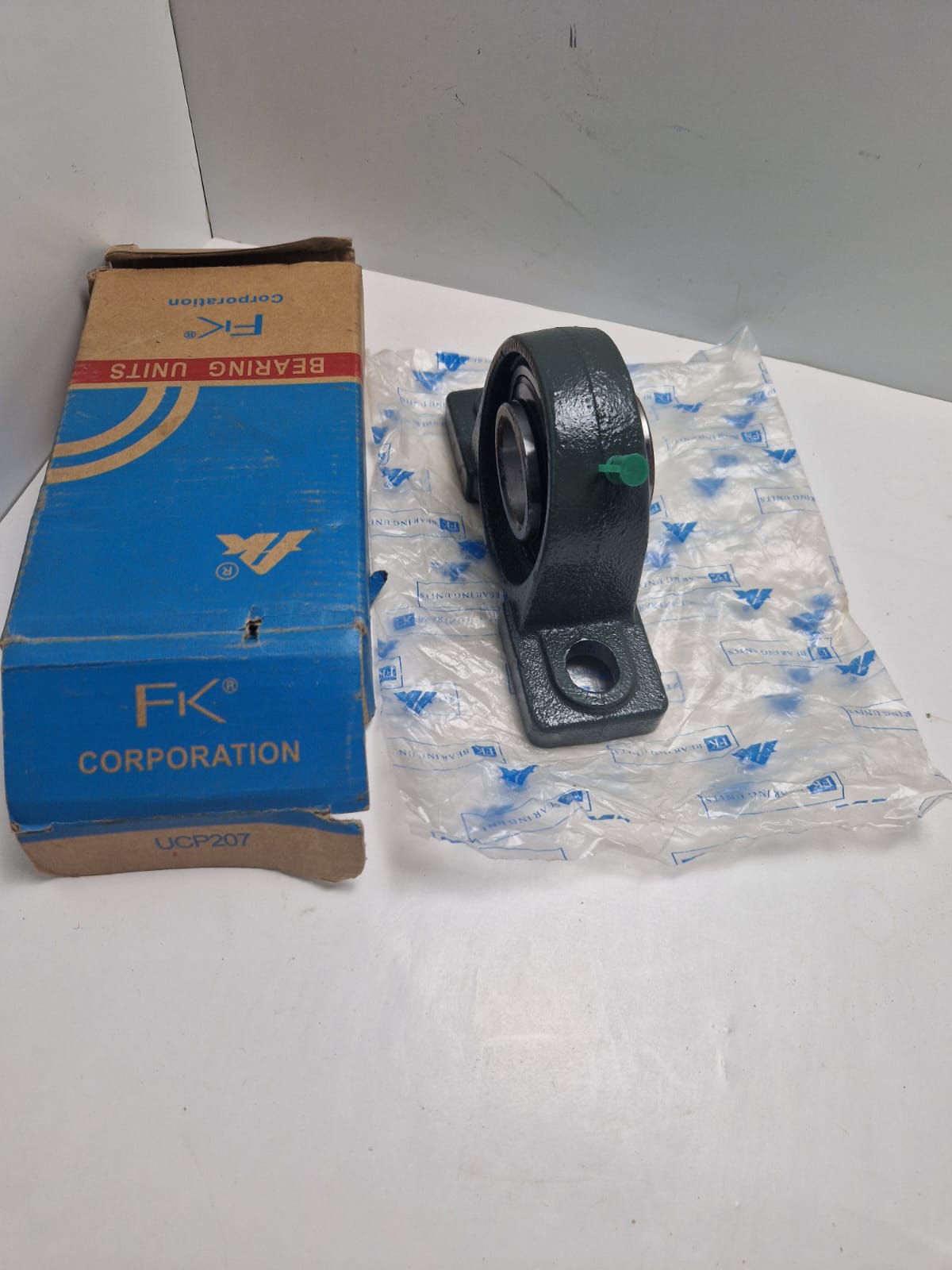

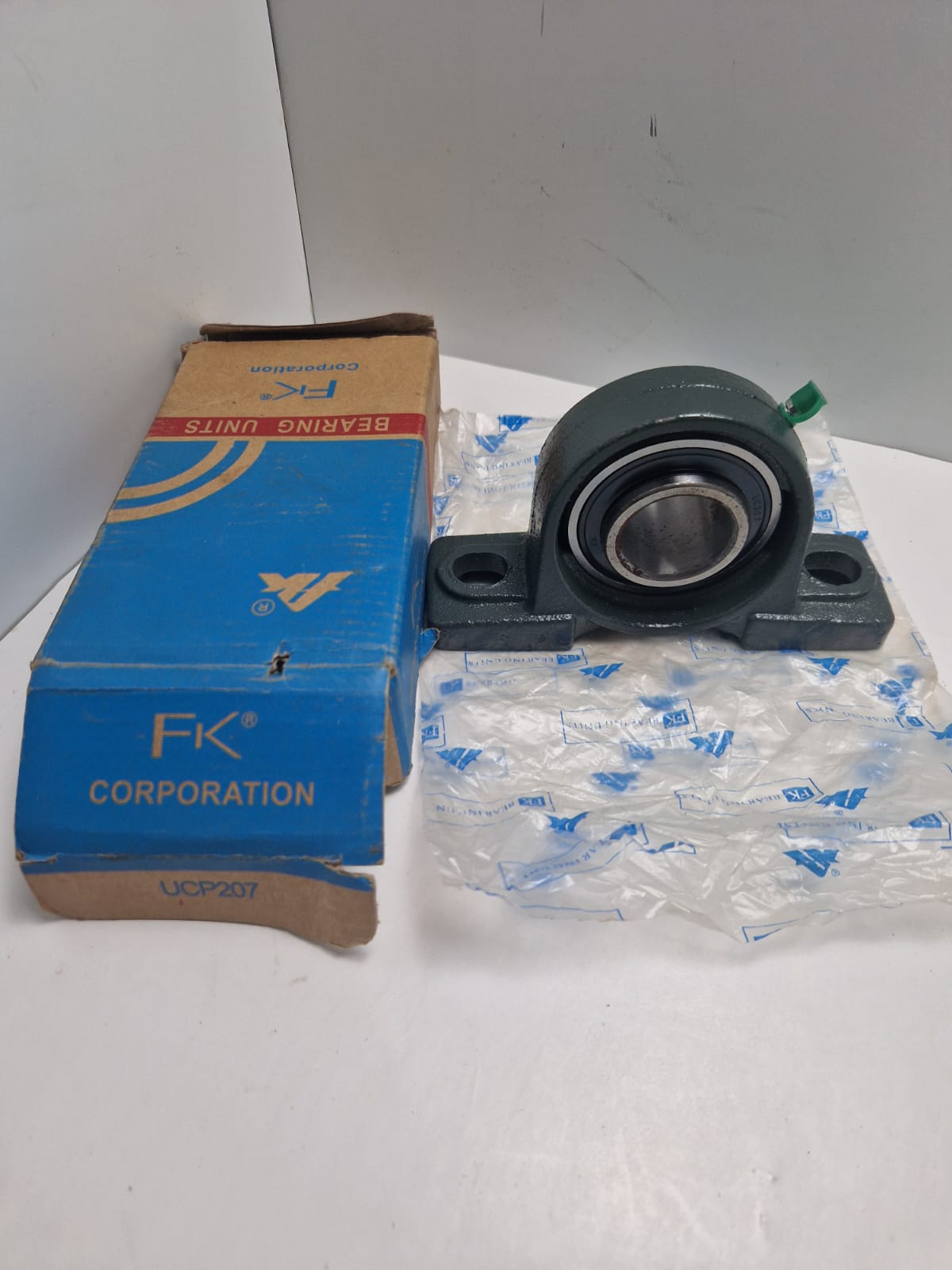

The UCP207 bearing unit is a commonly used component in mechanical systems, particularly in transmission devices and general machinery. It features a cast iron pillow block housing and a self-aligning ball bearing that can be mounted on the shaft by simply tightening a ball screw. This type of bearing unit is designed for ease of installation and reliable performance in various industrial applications, including agricultural machinery, conveyors, and material handling systems​

Product: Bearing Units UCP207, P207

Bore Diameter: 35 mm

Height to Shaft Center: 47.6 mm

Housing Width: 48 mm

Housing Length: 167 mm

Mounting Hole Center-to-Center Distance: 127 mm

Mounting Slot Dimensions: Length - 21 mm, Width - 17 mm

Total Height: 93-95 mm

Material: Cast iron housing, high carbon chromium steel bearing
