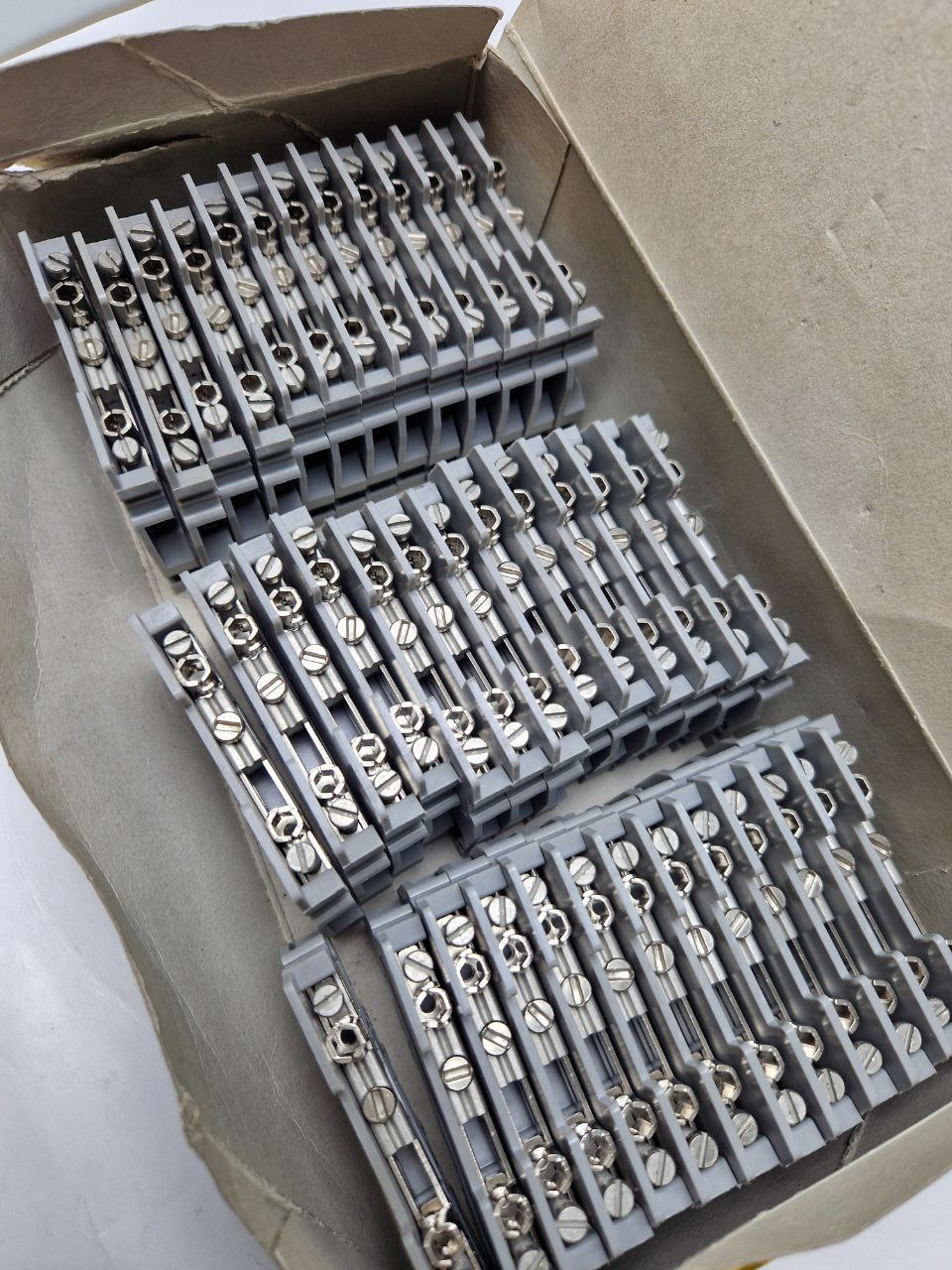

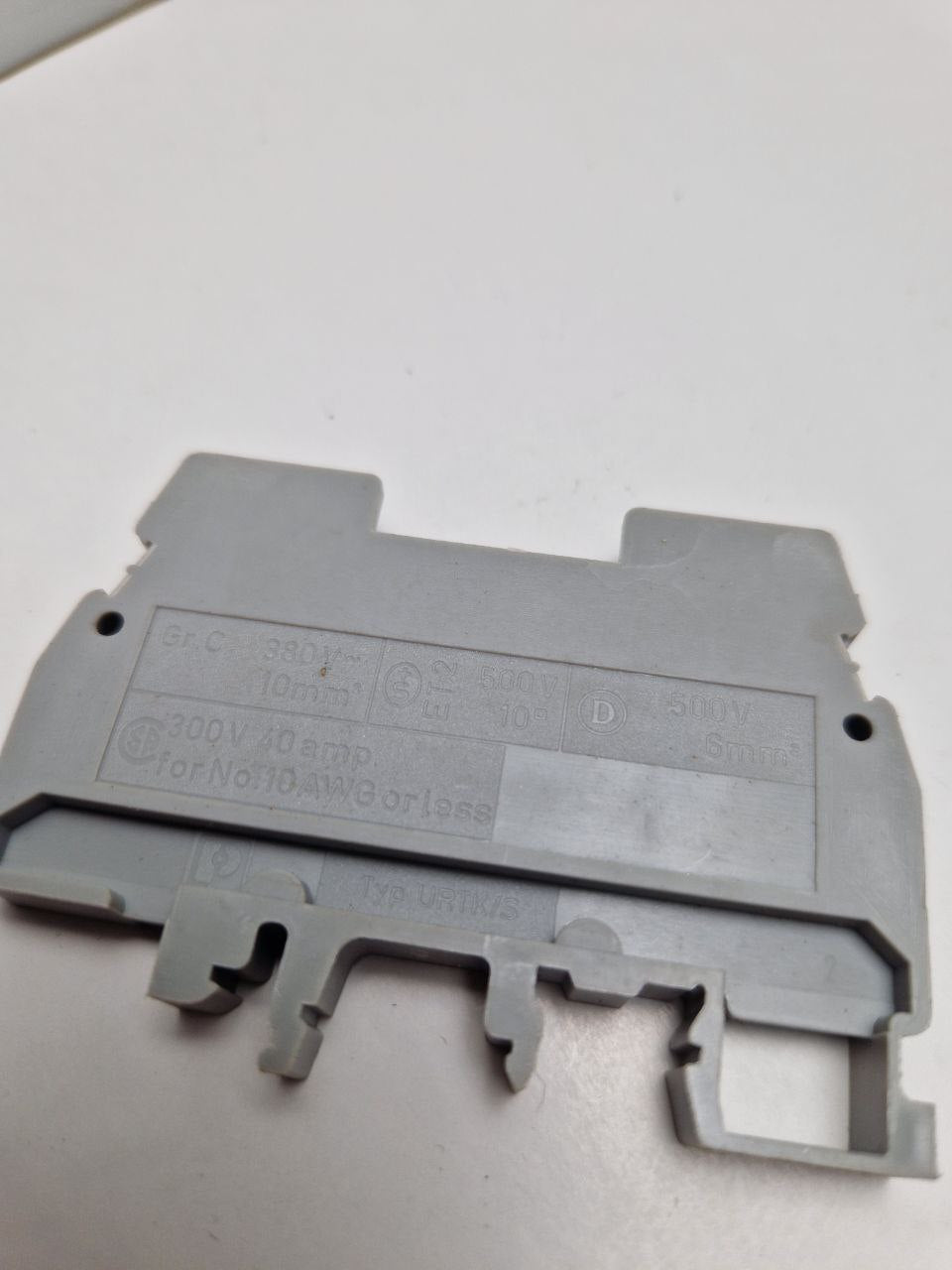

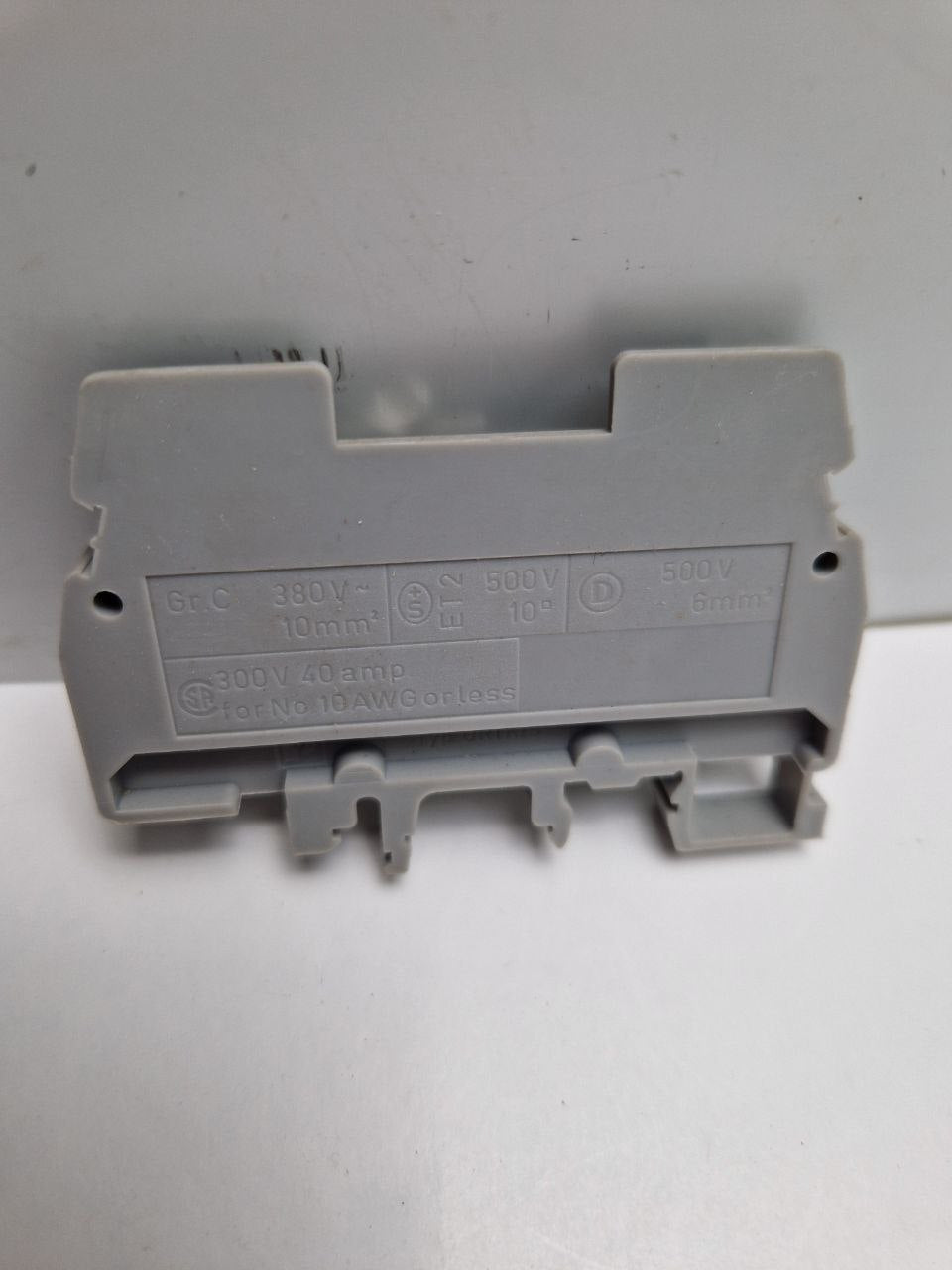

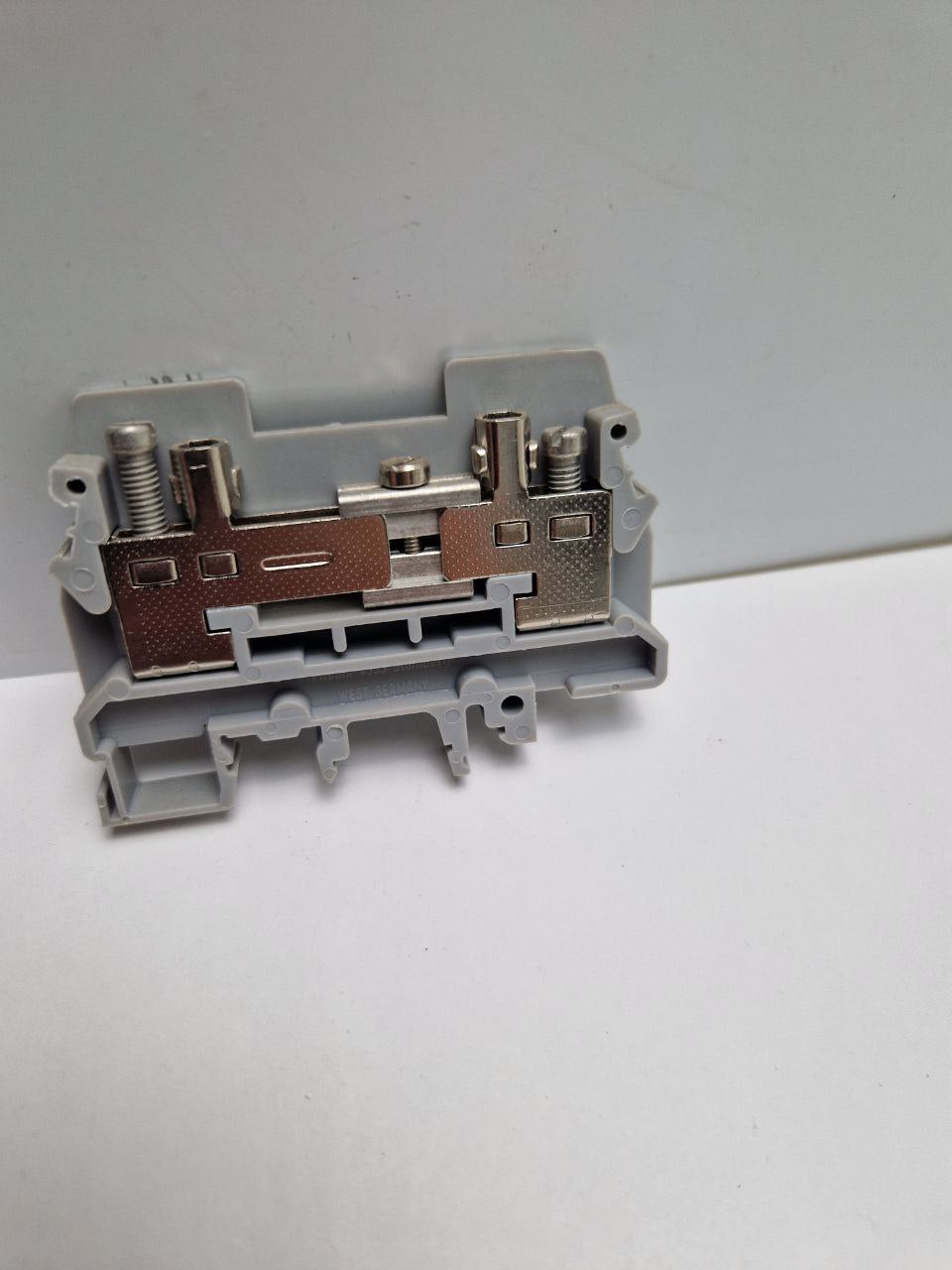

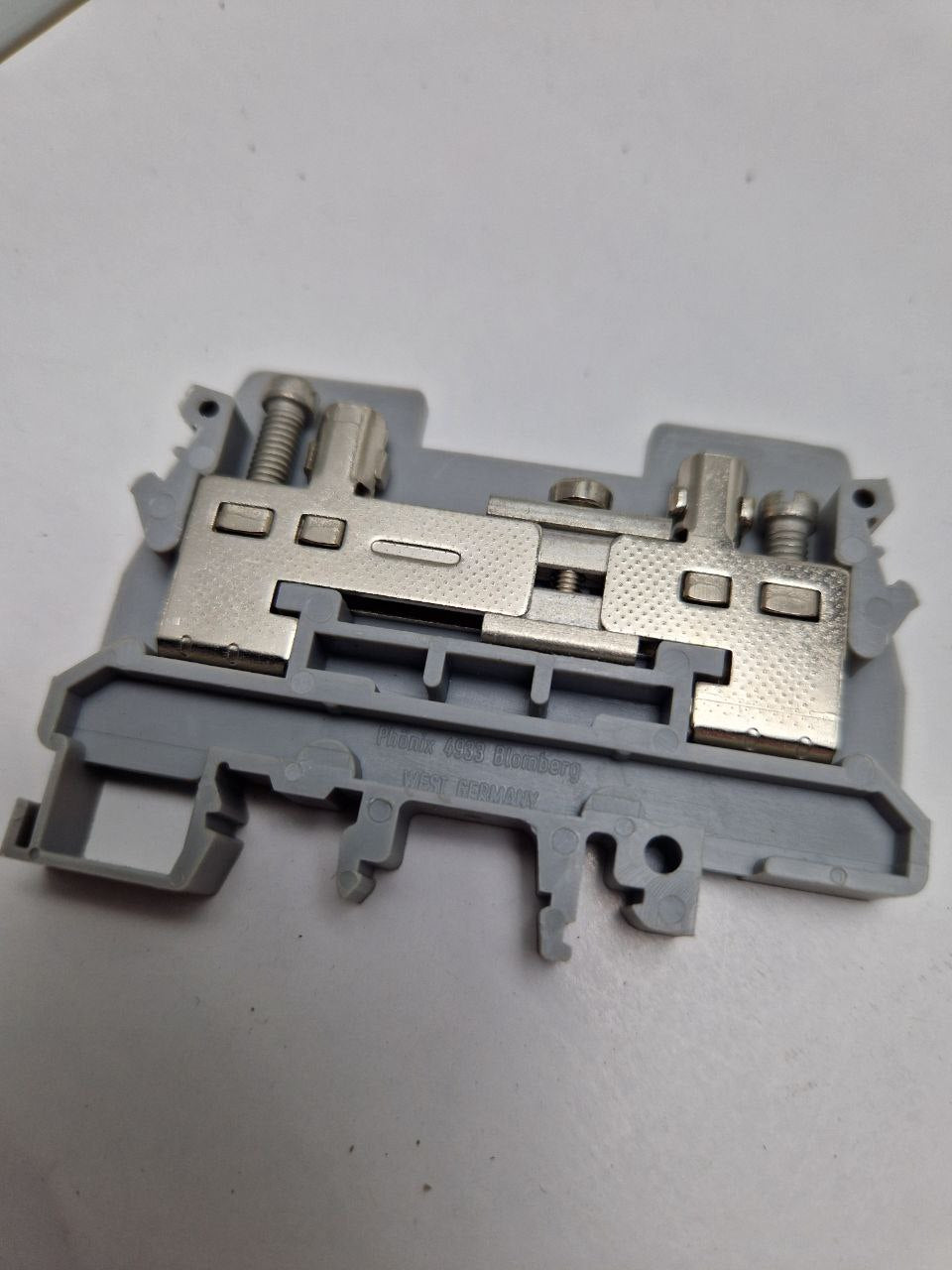

PHOENIX CONTACT URTK/S - Measuring terminal with slide disconnector 0311087 (Request price)

PHOENIX CONTACT URTK/S - Measuring terminal with slide disconnector 0311087  (Request price)

Test terminal with sliding disconnector, with two test holes for 4 mm test plug or for cross-connection or screw-type jumpers, rated voltage: 400 V, rated current: 41 A, connection type: Screw terminals, 1st tier, rated cross-section: 6 mm2, cross-section: 0.5 mm2 - 10 mm2, mounting type: NS 35/7.5, NS 35/15, NS 32, colour: grey

Product type:                                      Terminal for measuring transformers
Number of connection points:           2
Number of rows:                                1
Potentials:                                          1

Insulation characteristics
Overvoltage category:                       III
Pollution degree:                               3

Rated impulse voltage:                      6 kV
Max. power loss under nominal conditions:              1.31 W

Number of connection points per tier:                      2
Nominal cross-section:                                              6 mm²

Number of connection points per tier: 2
Nominal cross-section: 6 mm²
1st tier
Screw thread: M4
Tightening torque: 1.2 ... 1.5 Nm
Strip length: 13 mm
Plug gauge: A5
Connection according to standard: IEC 60947-7-1
Rigid conductor cross-section: 0.5 mm² ... 10 mm²
AWG conductor cross-section: 20 ... 8 (converted according to IEC)
Flexible conductor cross-section: 0.5 mm² ... 6 mm²
Flexible conductor cross-section [AWG]: 20 ... 10 (converted according to IEC)
Flexible conductor cross-section (with cable lug without plastic sleeve): 0.5 mm² ... 6 mm²
Flexible conductor cross-section (with cable lug and plastic sleeve): 0.5 mm² ... 4 mm²
2 rigid wires of the same cross-section: 0.5 mm² ... 2.5 mm²
2 flexible wires of the same cross-section: 0.5 mm² ... 6 mm²
2 flexible conductors of the same cross-section with cable end without plastic sleeve: 0.5 mm² ... 4 mm²
2 flexible conductors of the same cross-section with TWIN end with plastic sleeve: 0.5 mm² ... 4 mm²
Rated current: 41 A
Maximum load current: 57 A (with a wire cross-section of 10 mm²)
Rated voltage: 400 V
Nominal cross-section: 6 mm²

Width: 8.2 mm
Lid width: 2.2 mm
Height: 72 mm
Depth on NS 32: 56.5 mm
Depth on NS 35/7.5: 51.5 mm
Depth on NS 35/15: 59 mm

GTIN: 4017918001292
Weight/unit (with packaging): 34.747 g
Weight/unit (without packaging): 35.51 g
Customs Tariff Number: 85369010

Weight:  0.034747 kg

Price 1.01 = negotiated price

Made in Germany.
