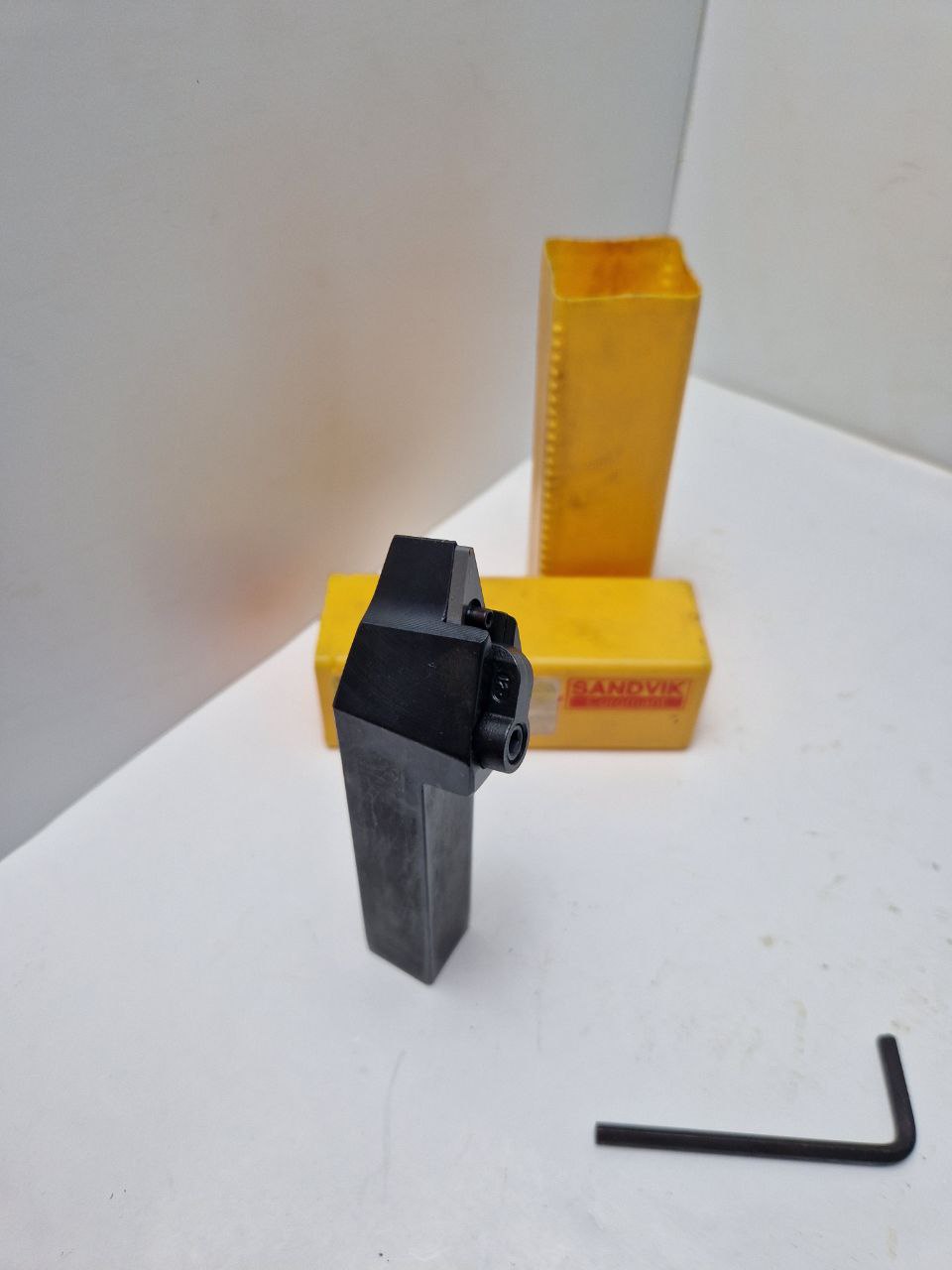

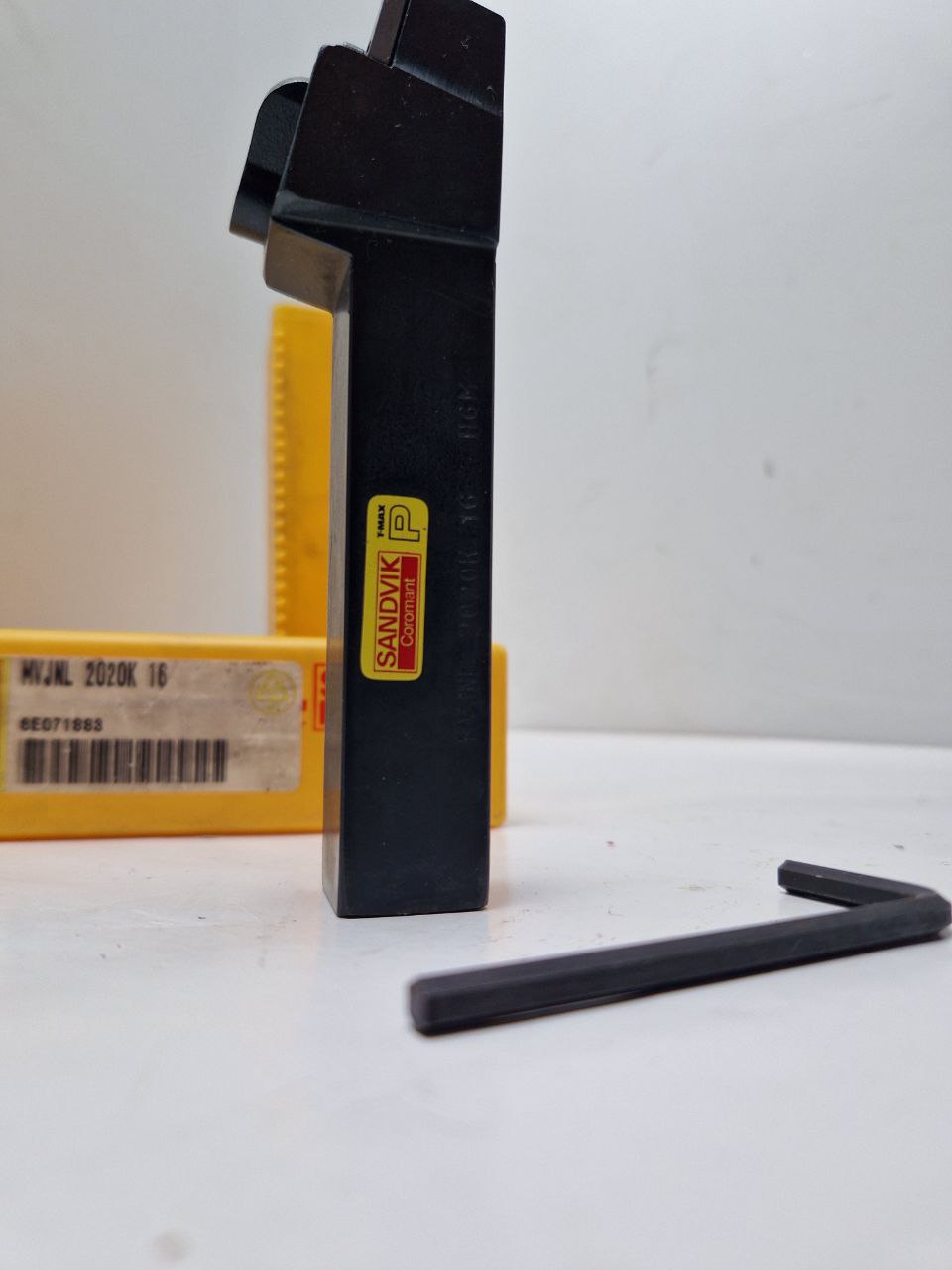

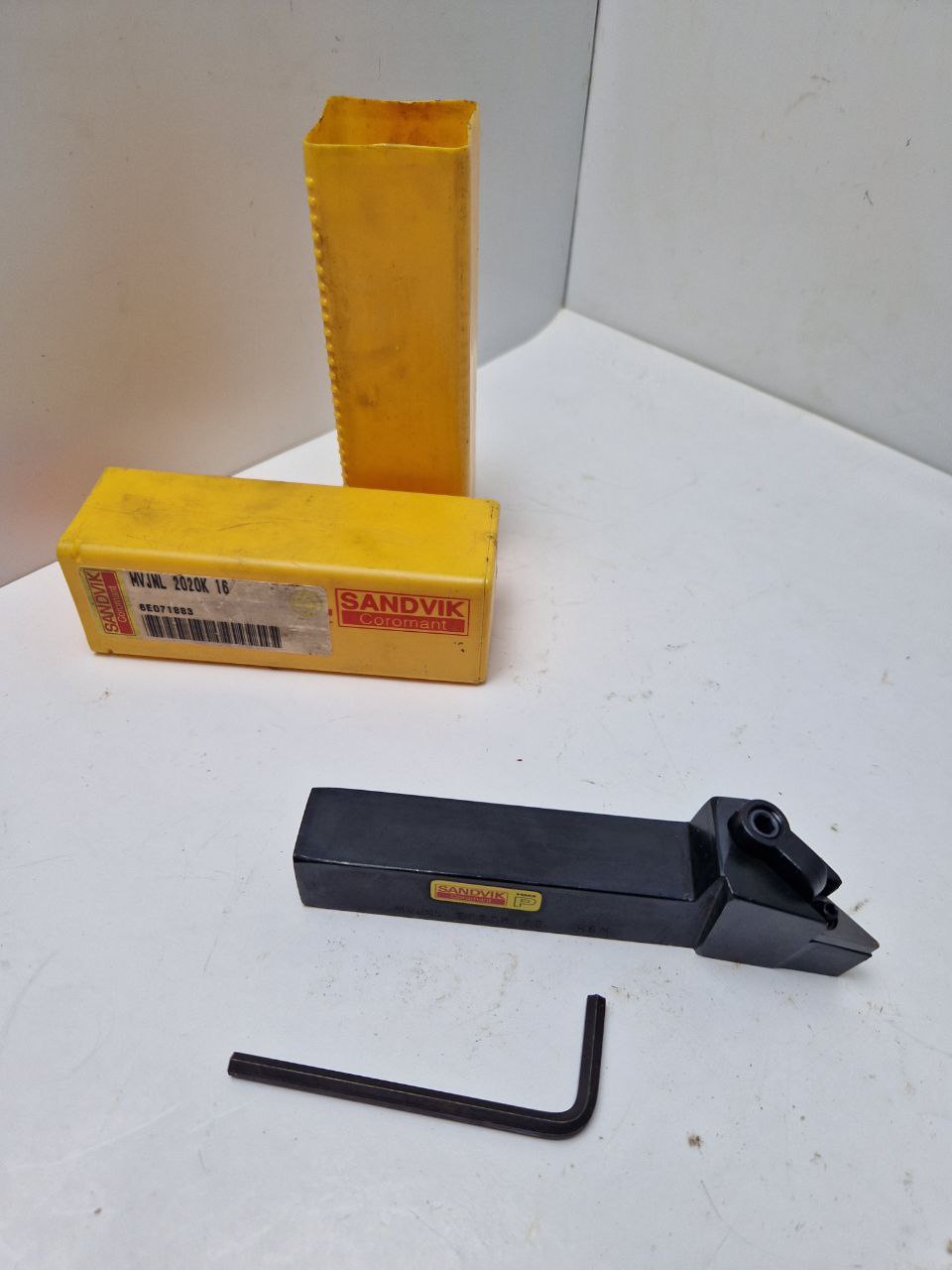

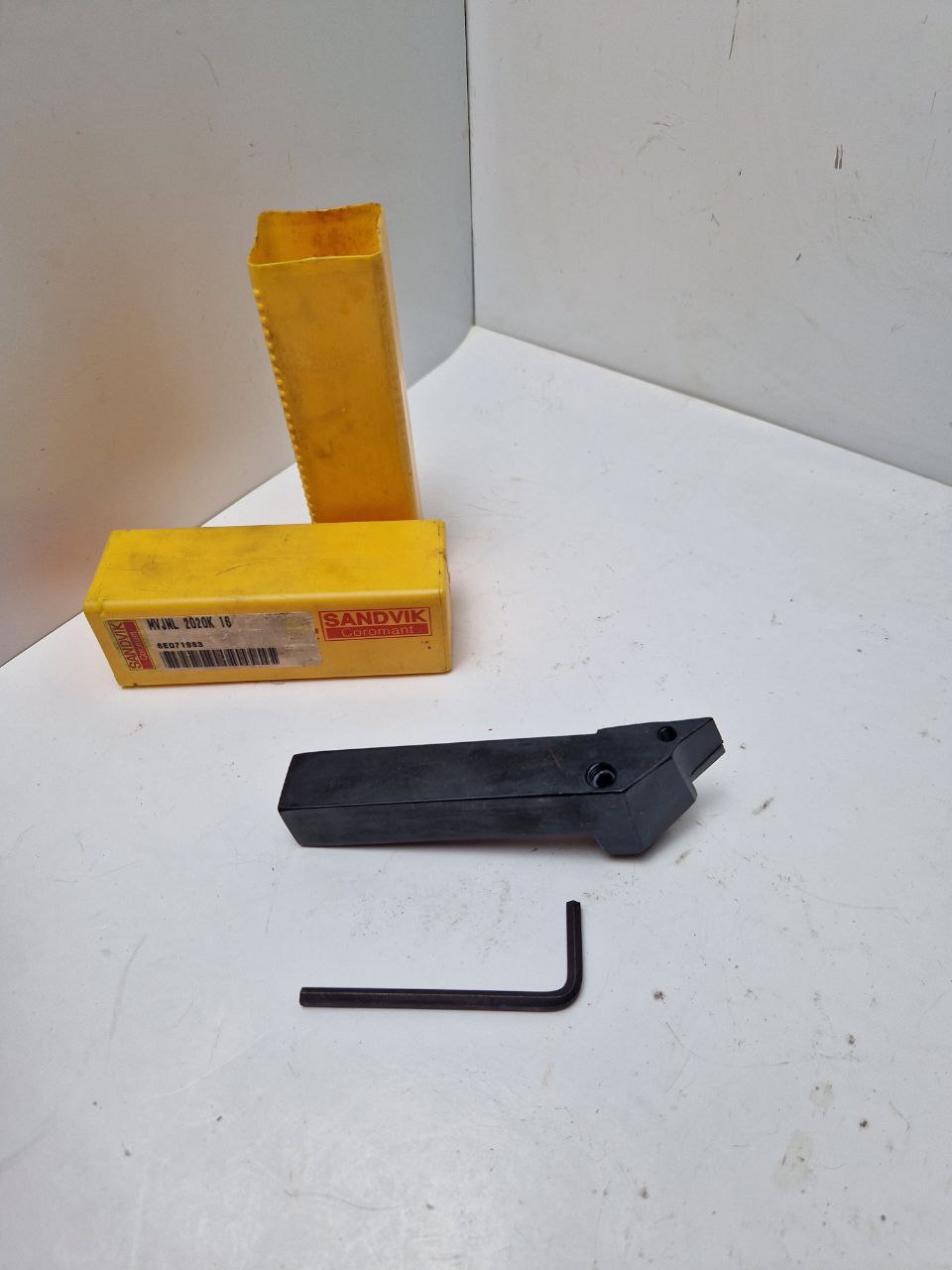

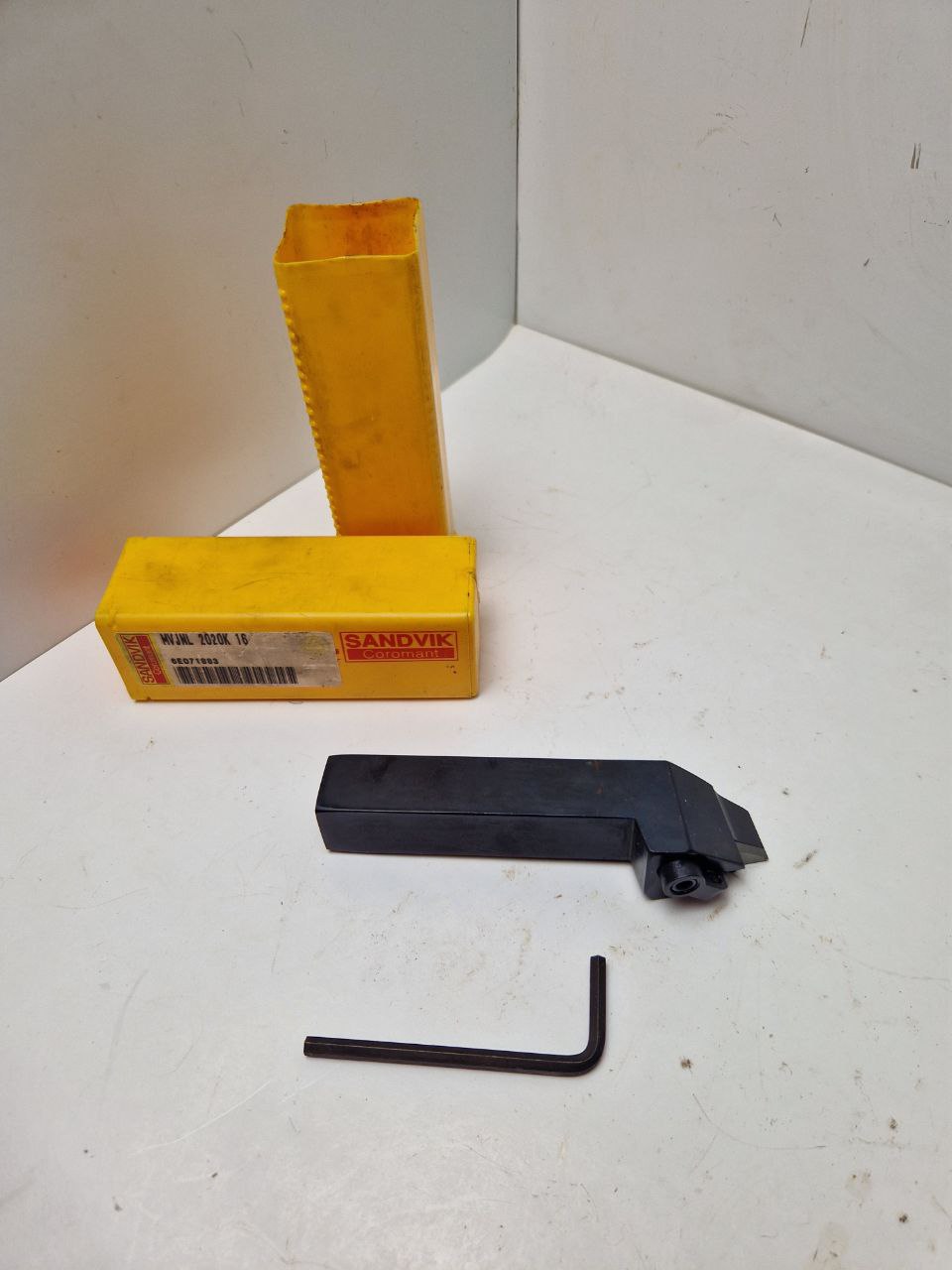

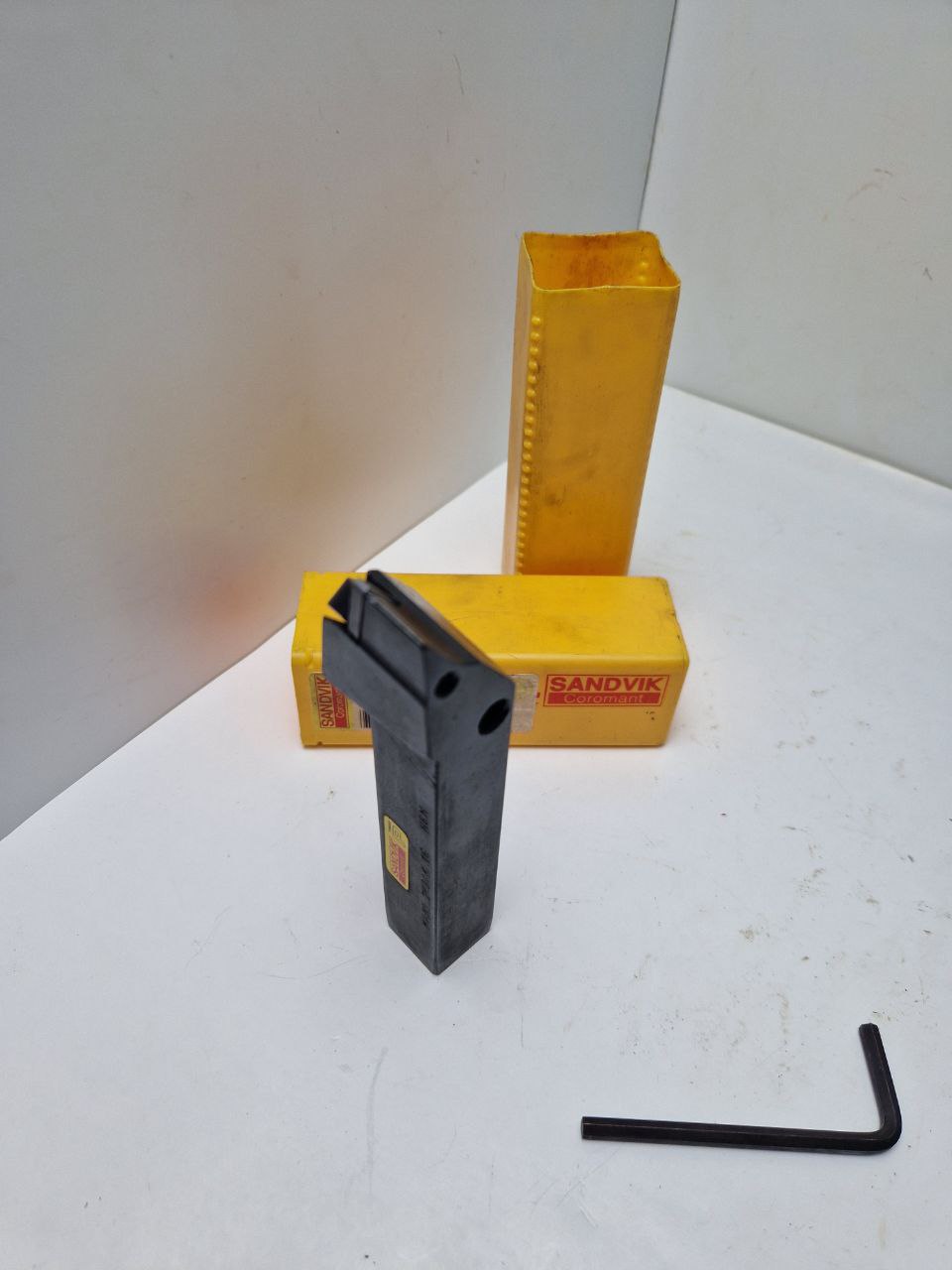

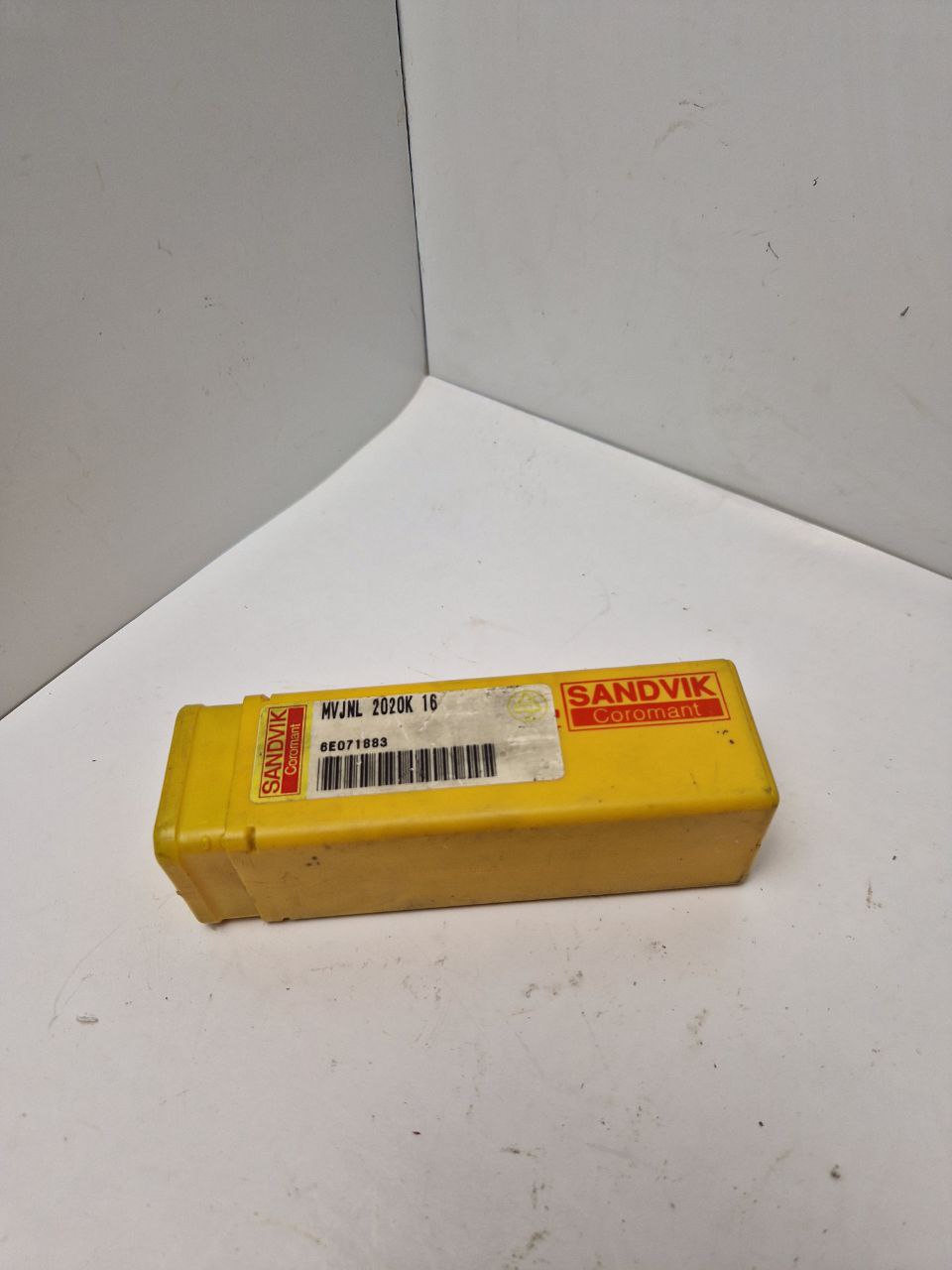

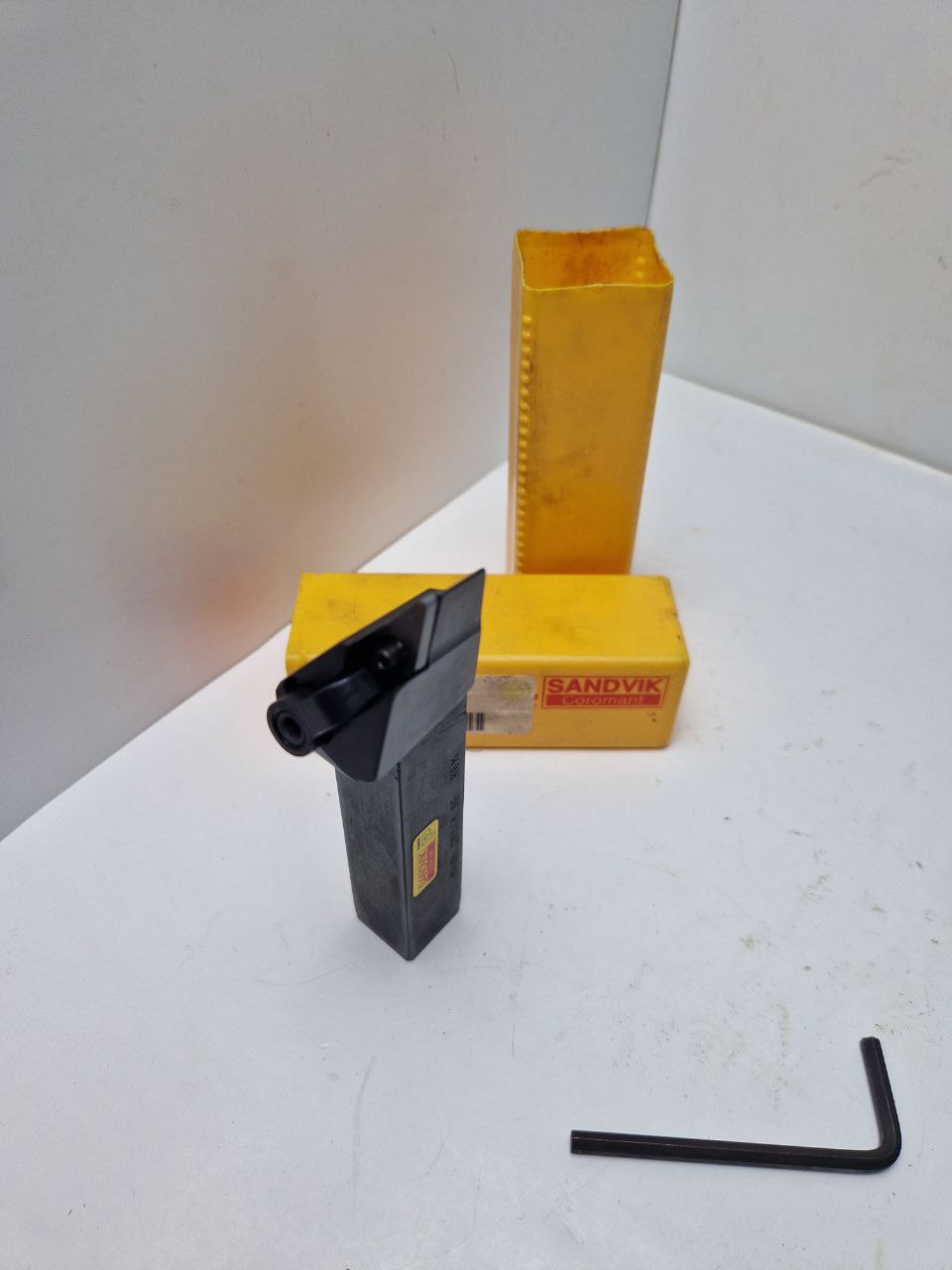

MVJNL 2020K-16 clamping holder with clamping claw for negative, rhombic 35° indexable inserts T-Max® P shank tool for turning SANDVIK Coromant

MVJNL 2020K-16 clamping holder with clamping claw for negative, rhombic 35° indexable inserts T-Max® P shank tool for turning  SANDVIK Coromant

6E071883

Article number 3600659
EAN / GTIN 7291075061826
Manufacturer number 3600659
L-number L23990 1759

Description:
Turning tools with WSP, functional length (LF) 125 mm, head length (LH) 41 mm
Feature:
Direction (HAND) Left Hand
Functional length (LF) 125 mm
Functional width (WF) 25 mm
Head length (LH) 41 mm
Inscribed circle diameter (IC) 9.52 mm
Cutting insert designation (MIID) VNMG 1604
Rake Angle Axial (GAMP) -6 Degrees
Rake Angle Radial (GAMF) -10 Degrees
Shank height (H) 20 mm
Shank width (B) 20 mm

Made in Sweden.
