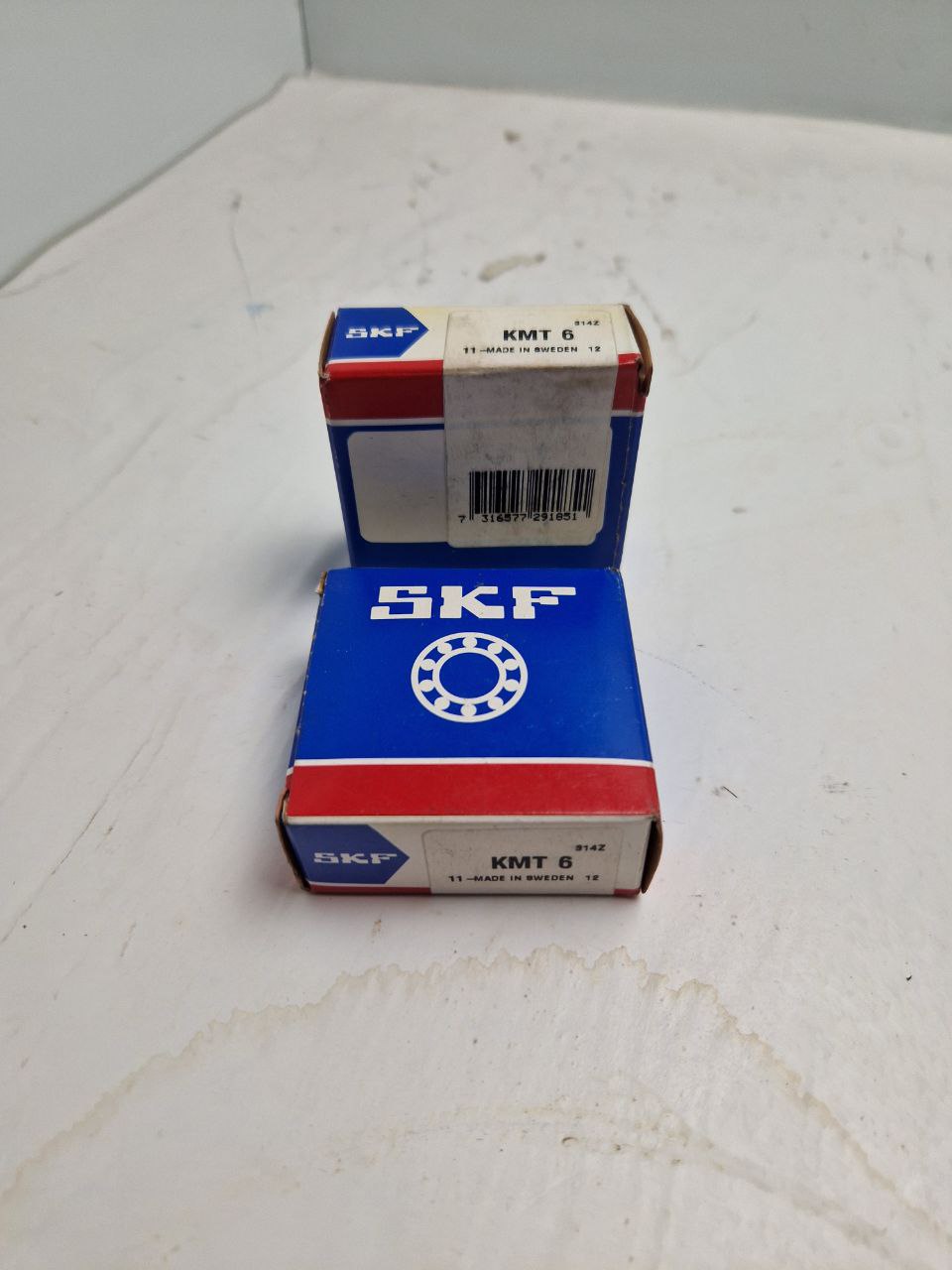

SKF KMT 6 Precision lock nut with locking pins (Request price)

SKF KMT 6 Precision lock nut with locking pins  (Request price)

KMT precision lock nuts are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm
No keyway required:
Withstands high axial loads
Reliable, effective locking mechanism
Designed for frequent and simple installation and removal
Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40) and Tr 220x4 to Tr 420x5 (sizes 44 to 84)

Dimensions:
Thread designation:        M 30x1.5
Bore diameter:                     30 mm
Outside diameter:                49 mm
Width:                                  20 mm

eClass code:                         23-11-07-05
UNSPSC code:                     31163218
Barcode:                              7316577291851

Properties:
Locking device:                             Incorporated in the lock nut
Nut for hydraulic mounting:         No
Associated mounting tool:           HN 7

Weight:  0.153 kg

Price 1.01 = negotiated price

Made in Sweden.
