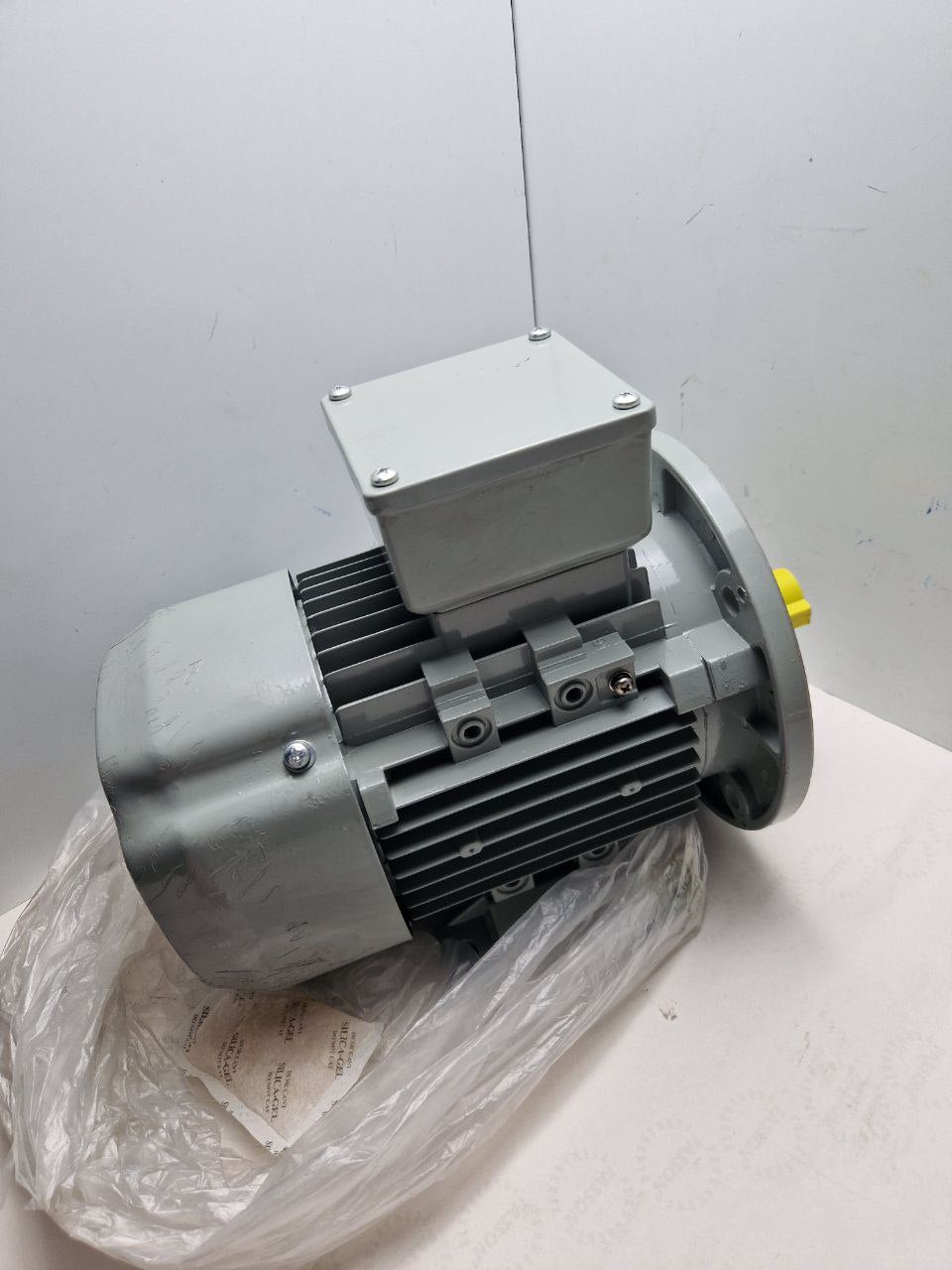

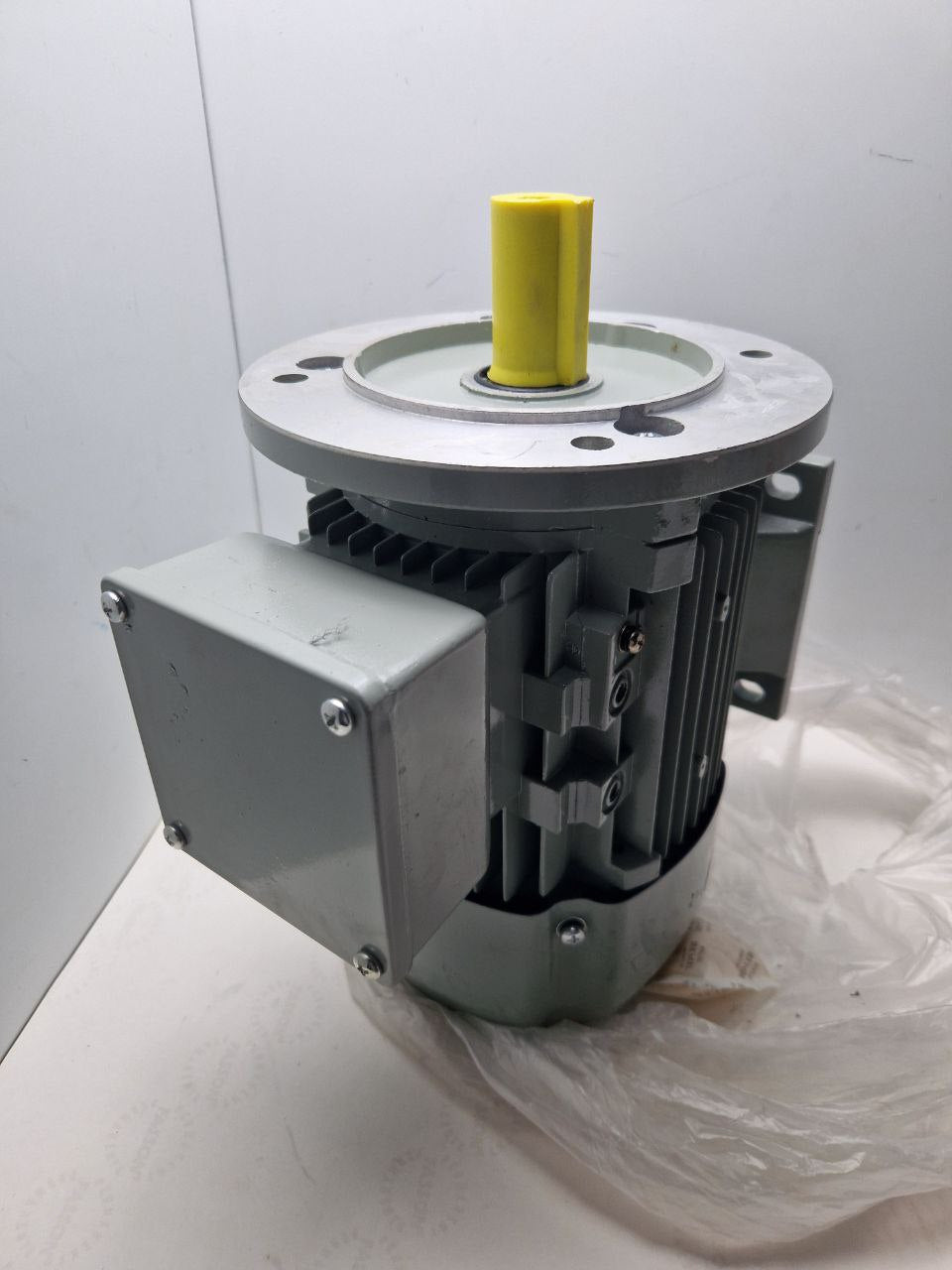

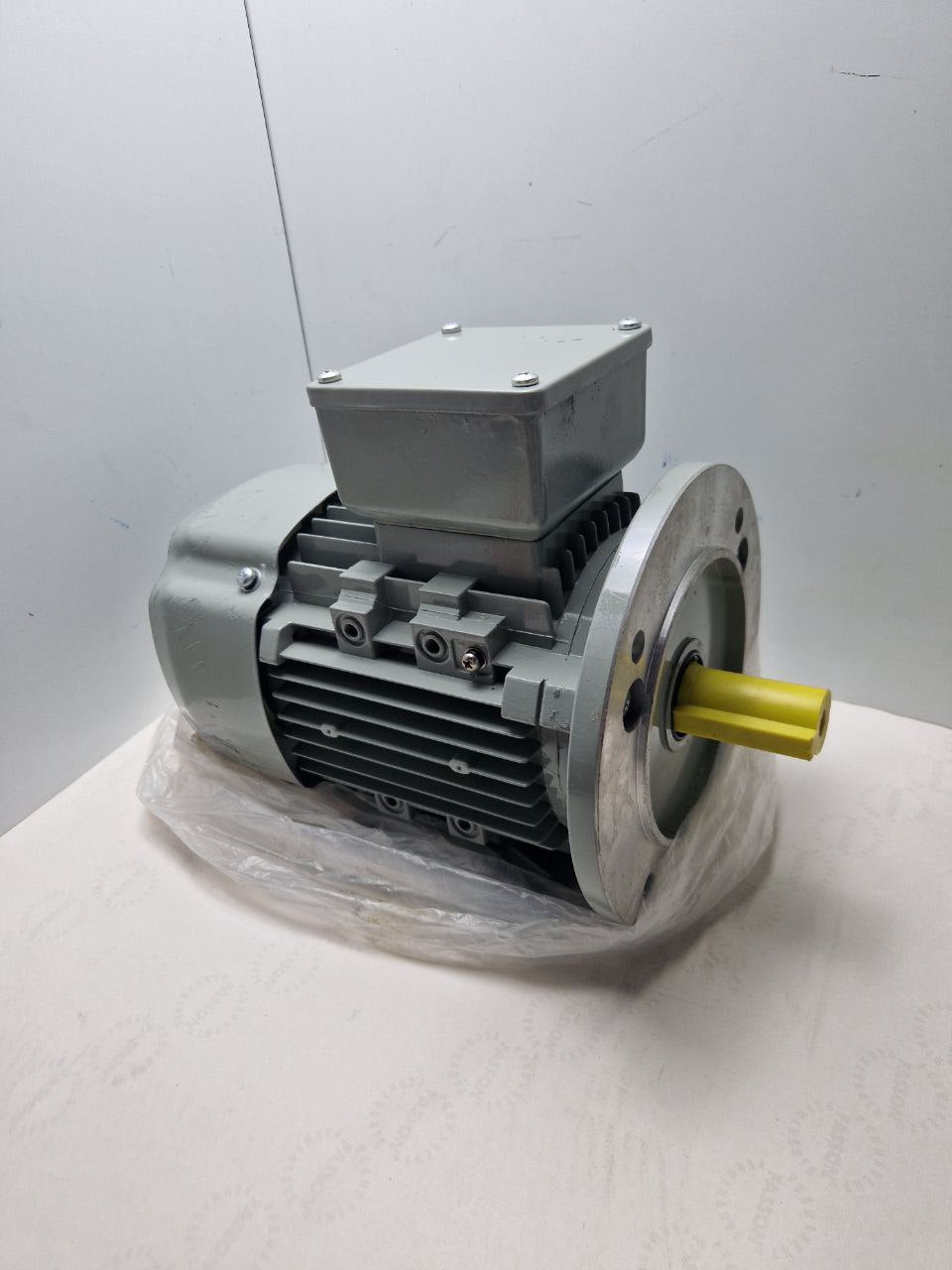

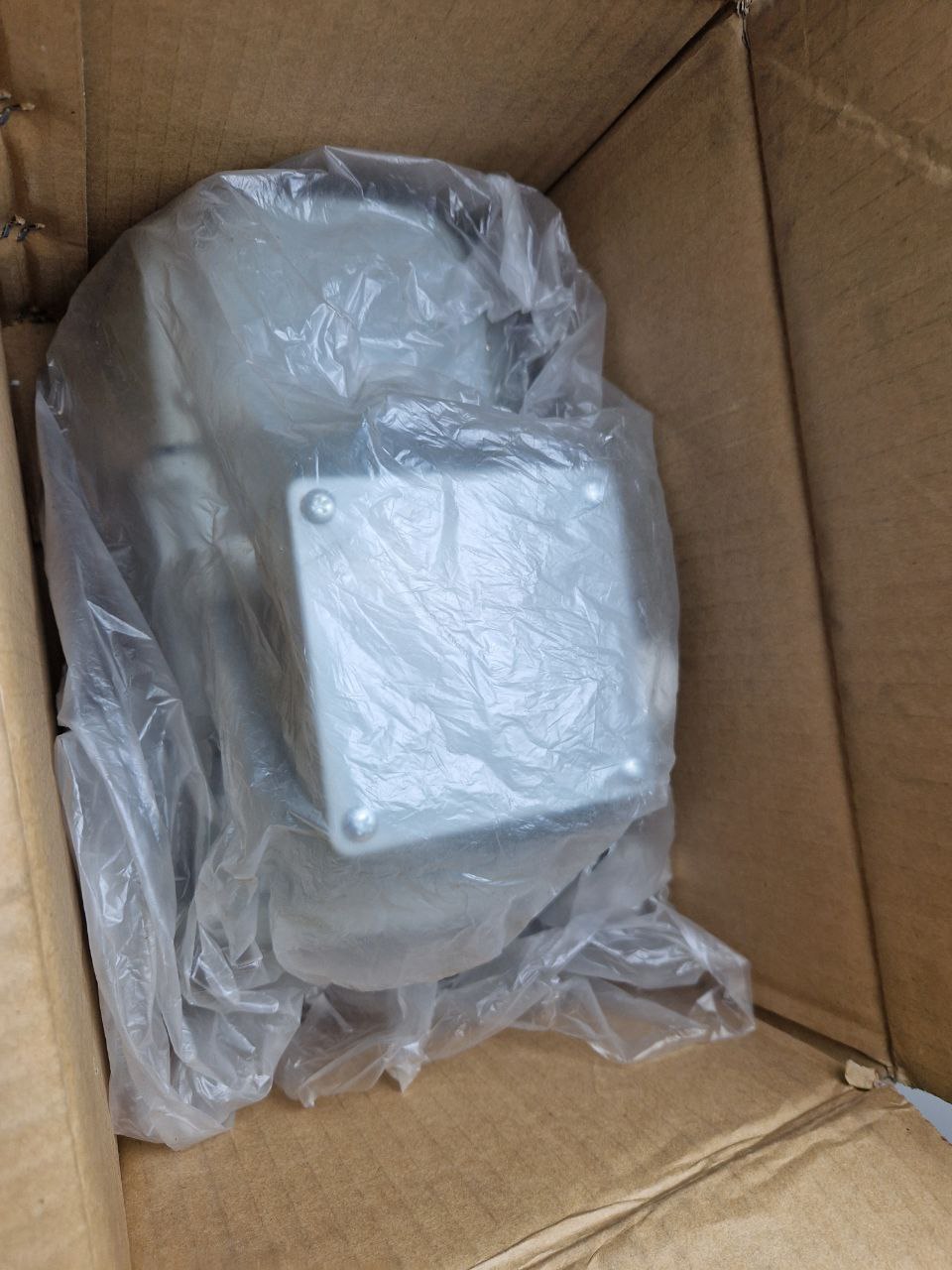

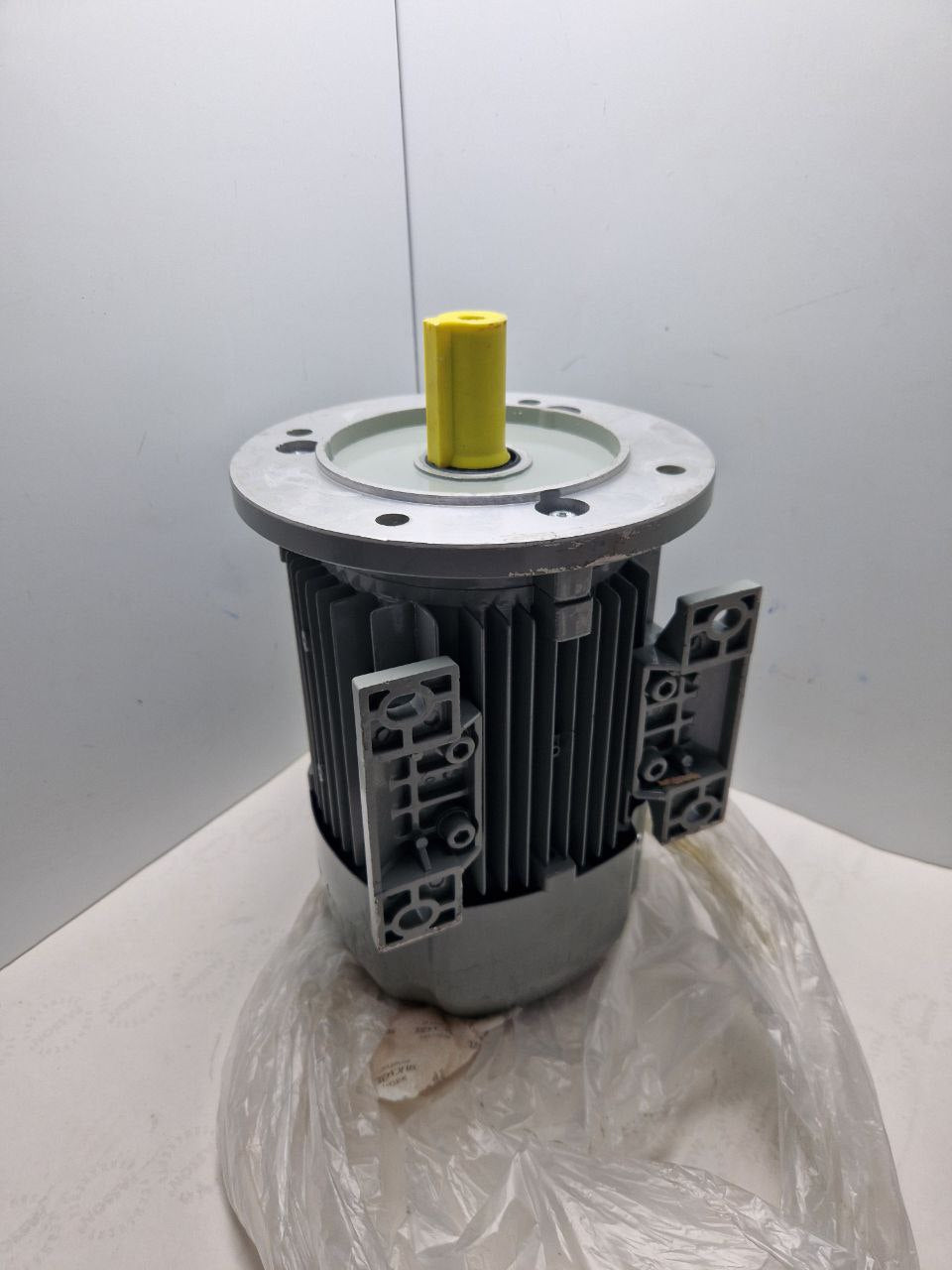

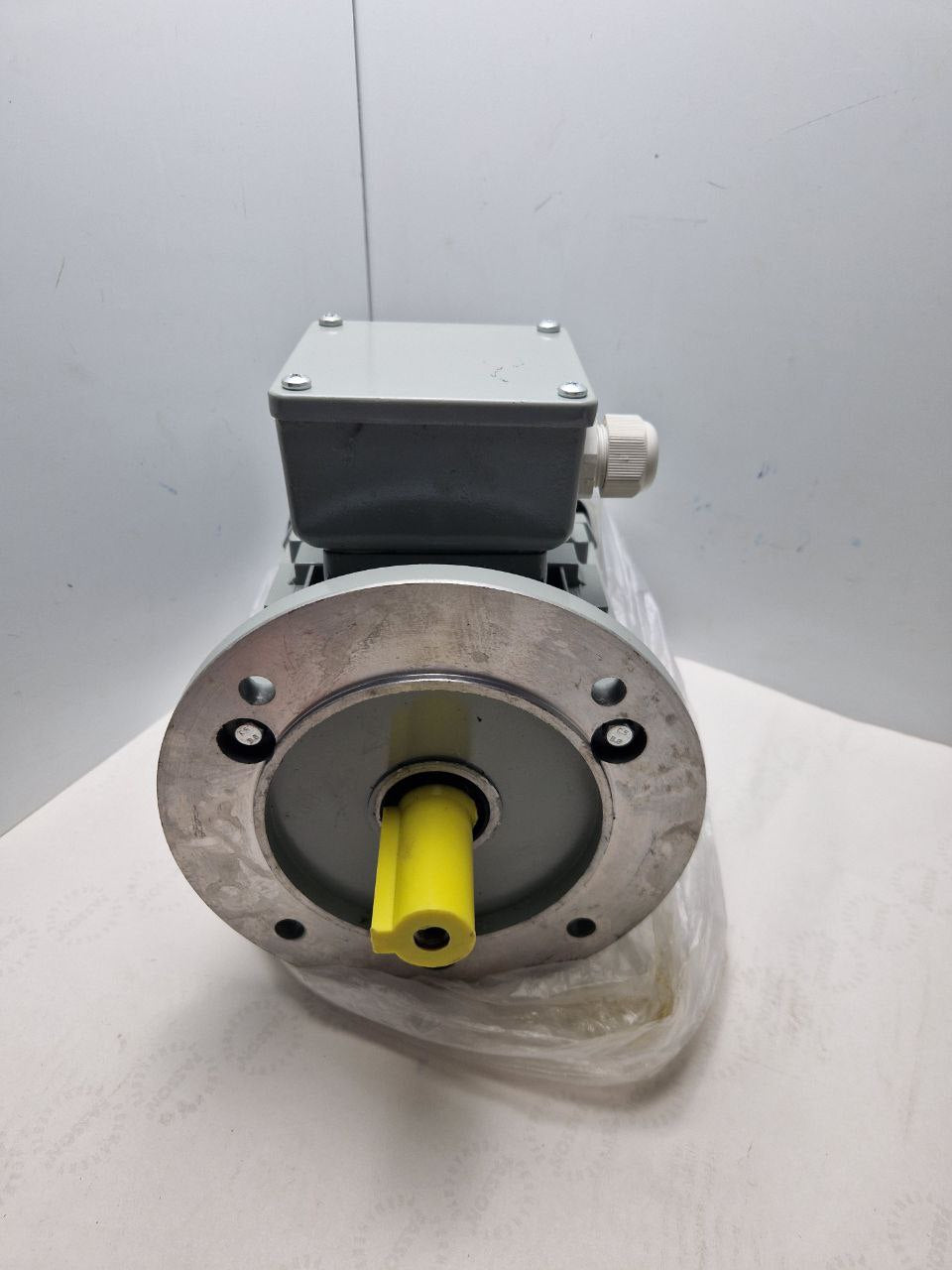

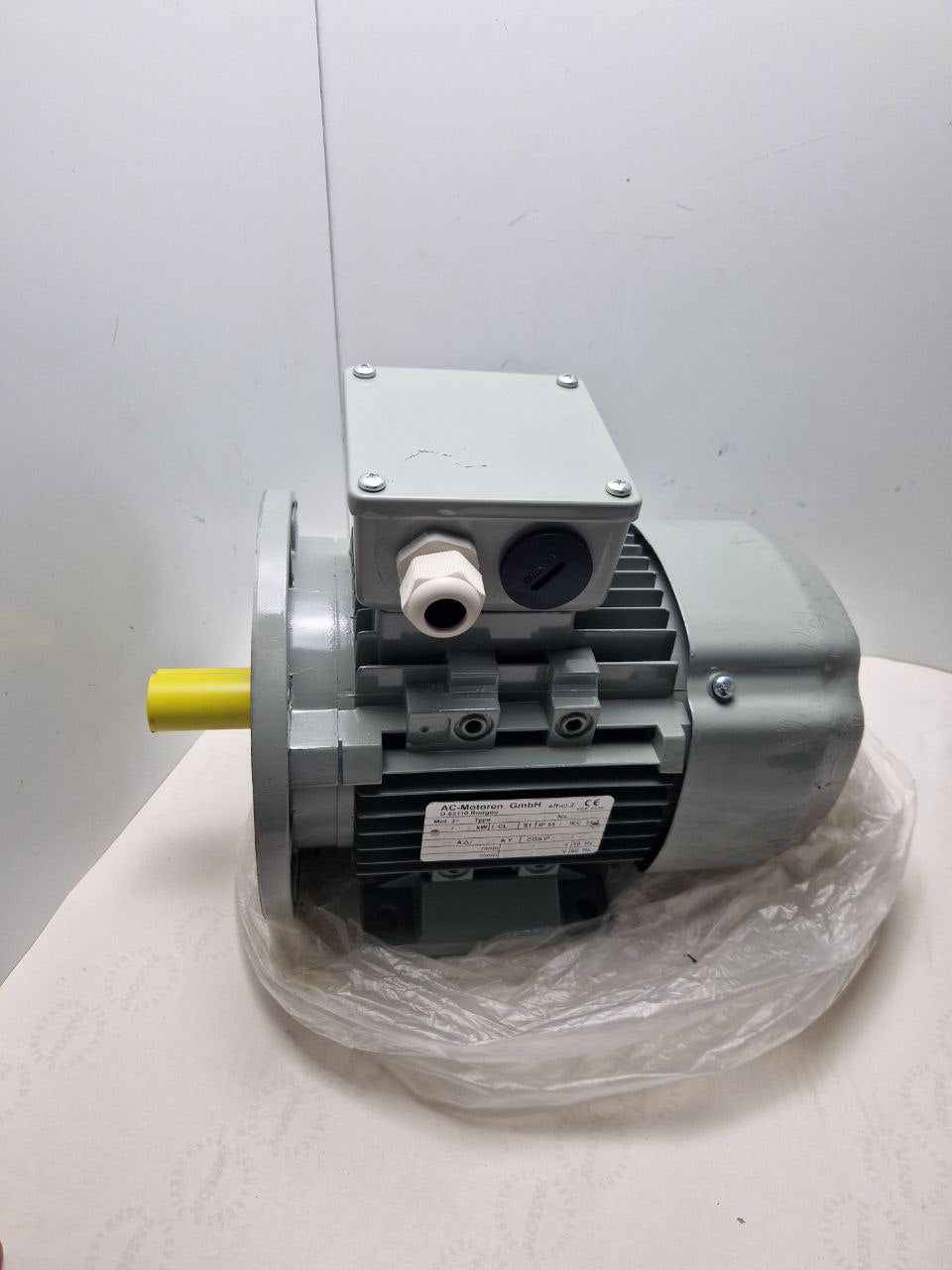

Electric motors FCPA 90S-2 B35 1.5 KW, HP 2840 rpm, 230/400 V, 50 Hz

Electric motors FCPA 90S-2 B35 1.5 KW, HP 2840 rpm, 230/400 V, 50 Hz

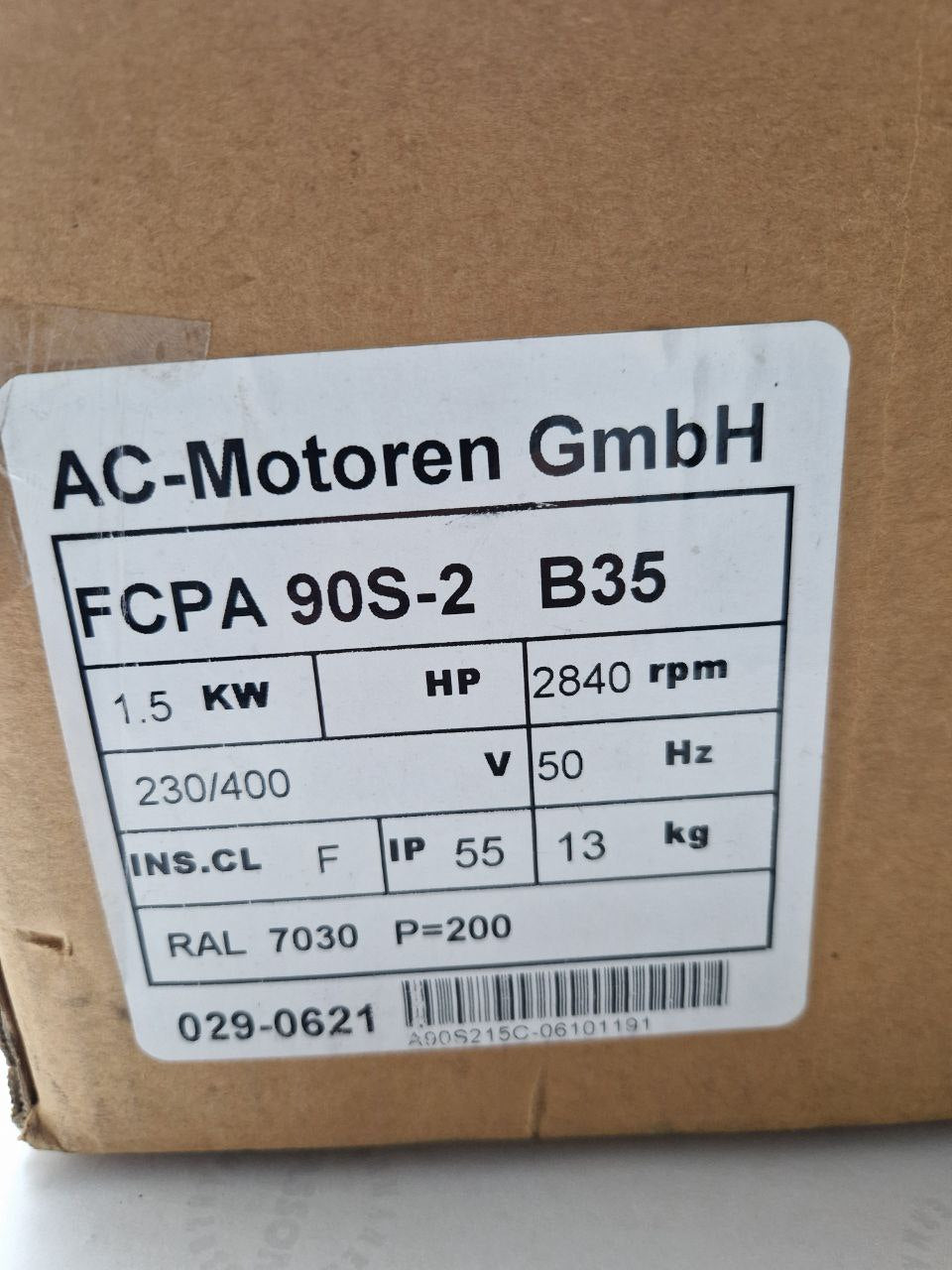

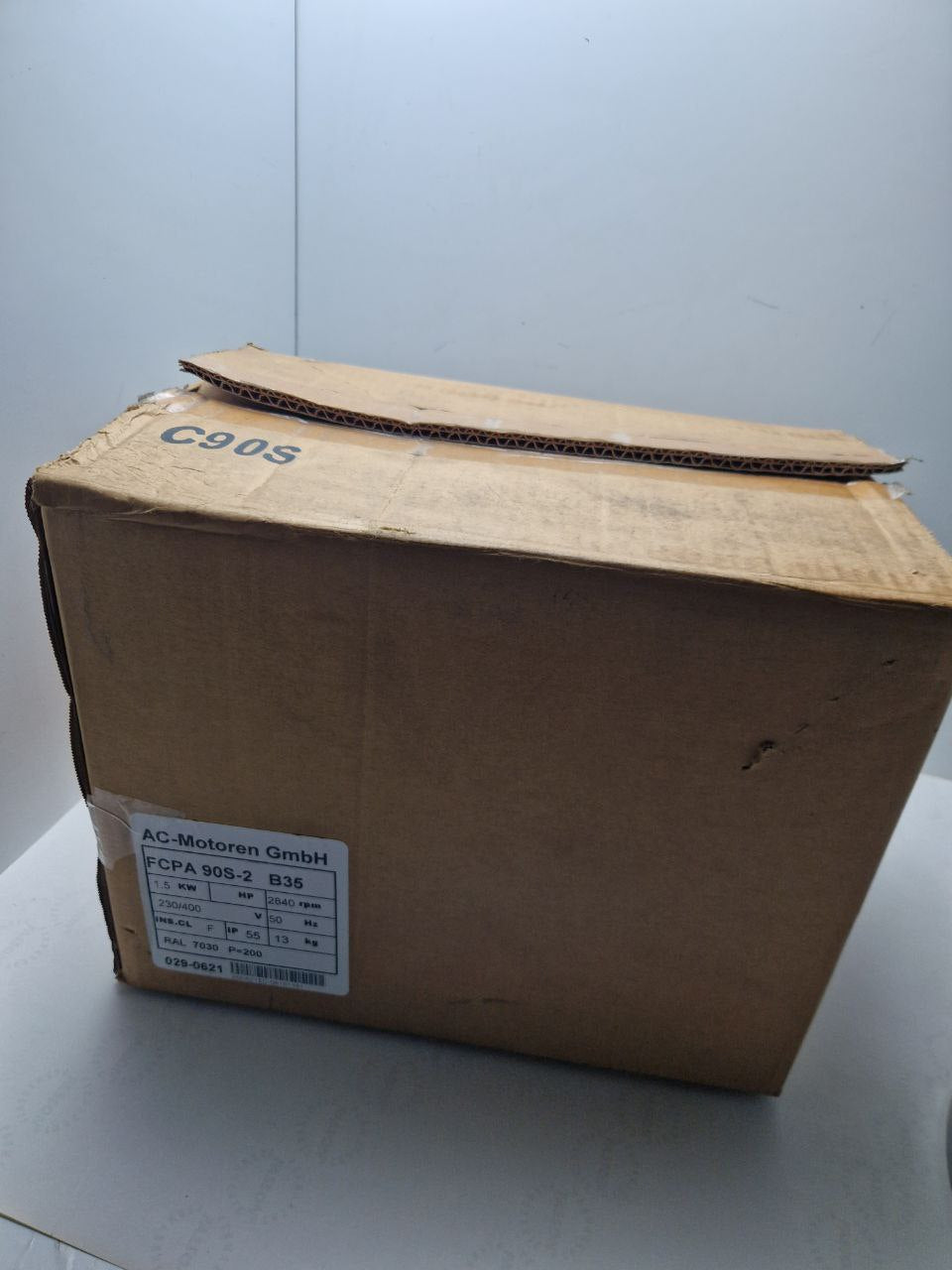

INS.CL-F  IP 55  RAL 7030 P=200 029-0621

eff-cl.2           VDE 0530

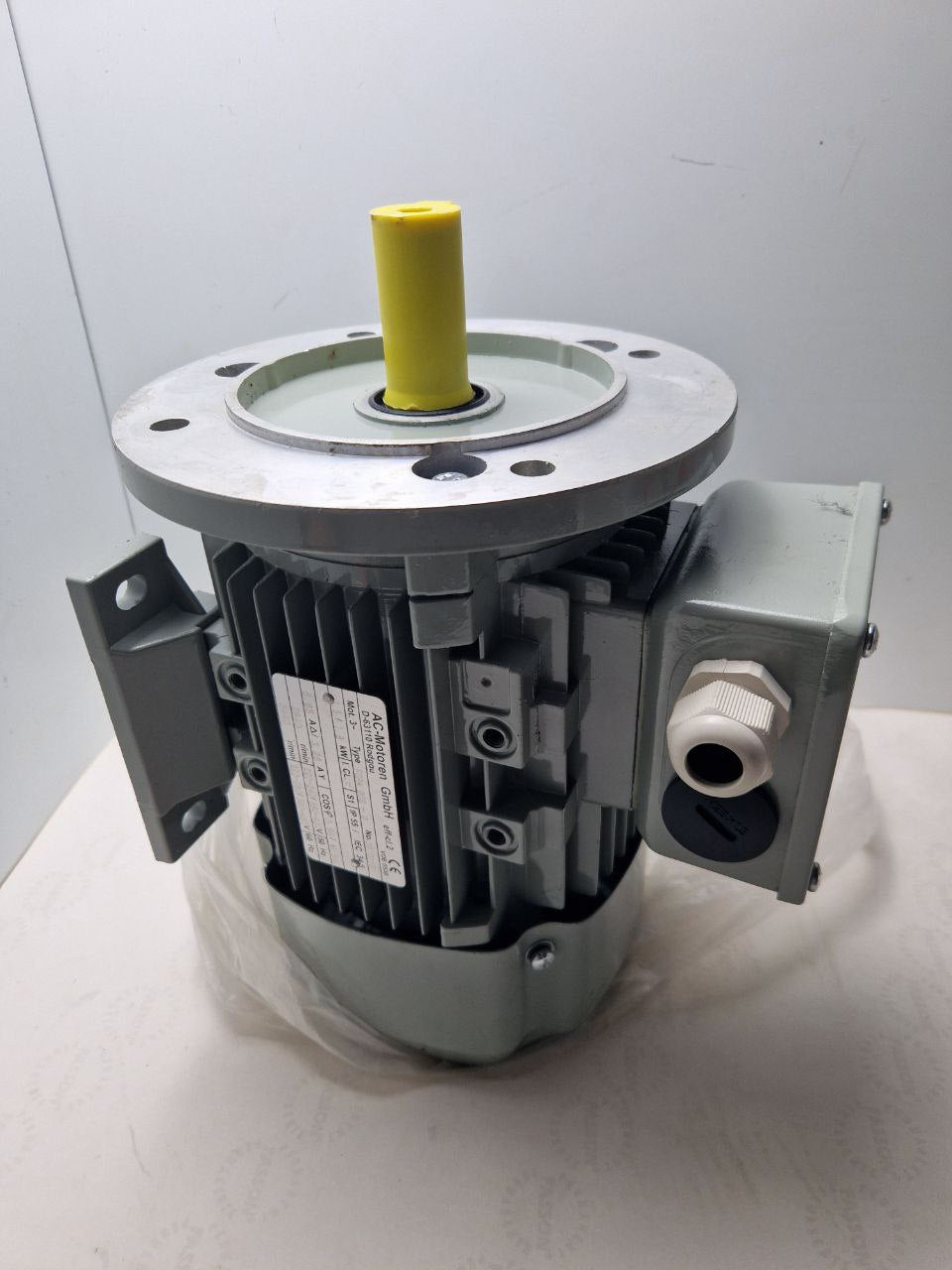

Mot. 3~

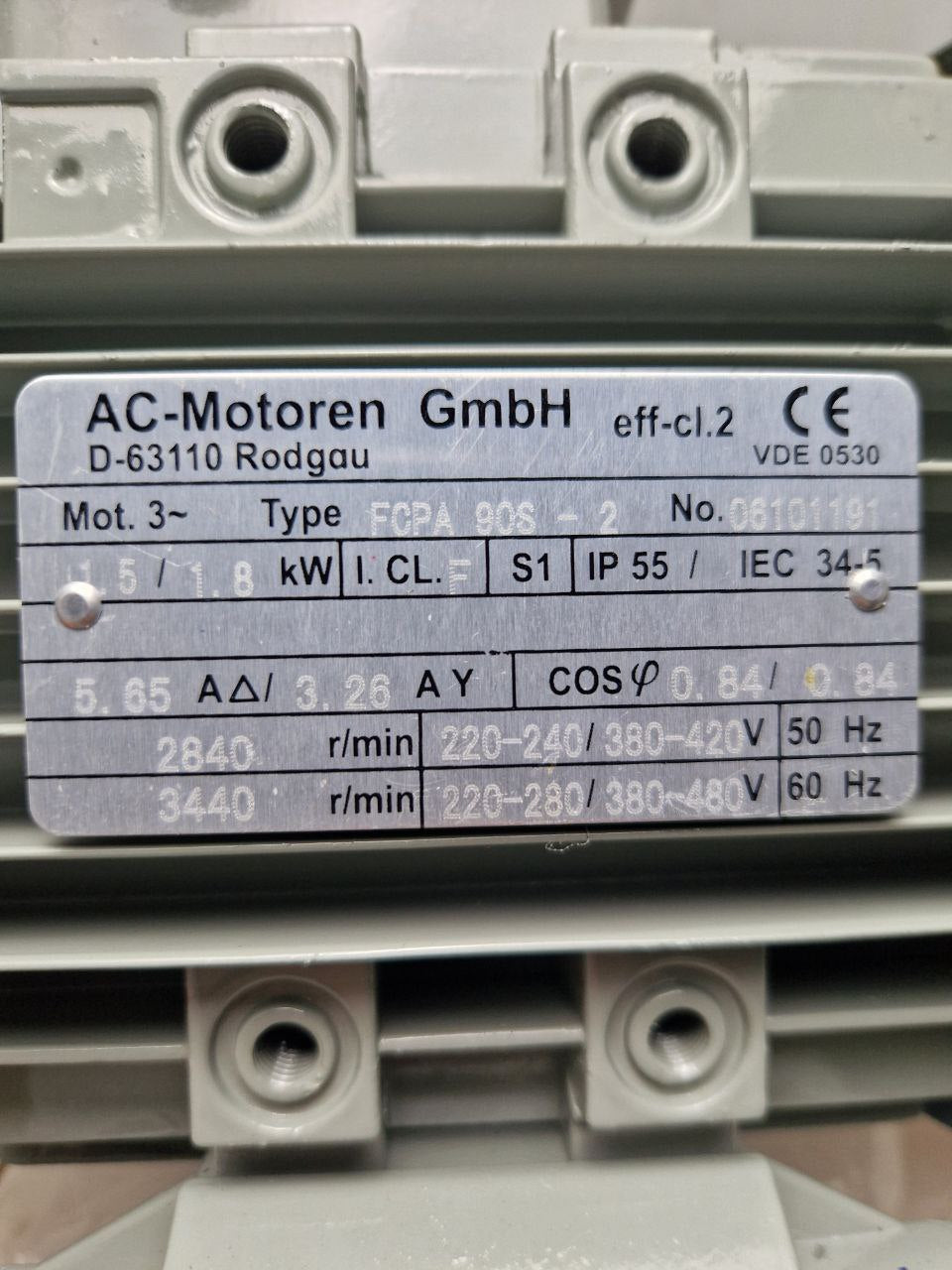

Type: FOPA 90S-2

No.06101191

1.5/1.8 kW

I. CL.: F   S1 / IP 55 / IEC 34-5    5.65 A△ / 3.26 AY        COS φ  0.84/0.84

2840 r/min             220-240/380-420V           50 Hz

3440 r/min             220-280/380~480V          60 HzS

WT.13 kg

A90S215C-06101191

AC Motoren GmbH

Made in Germany.
