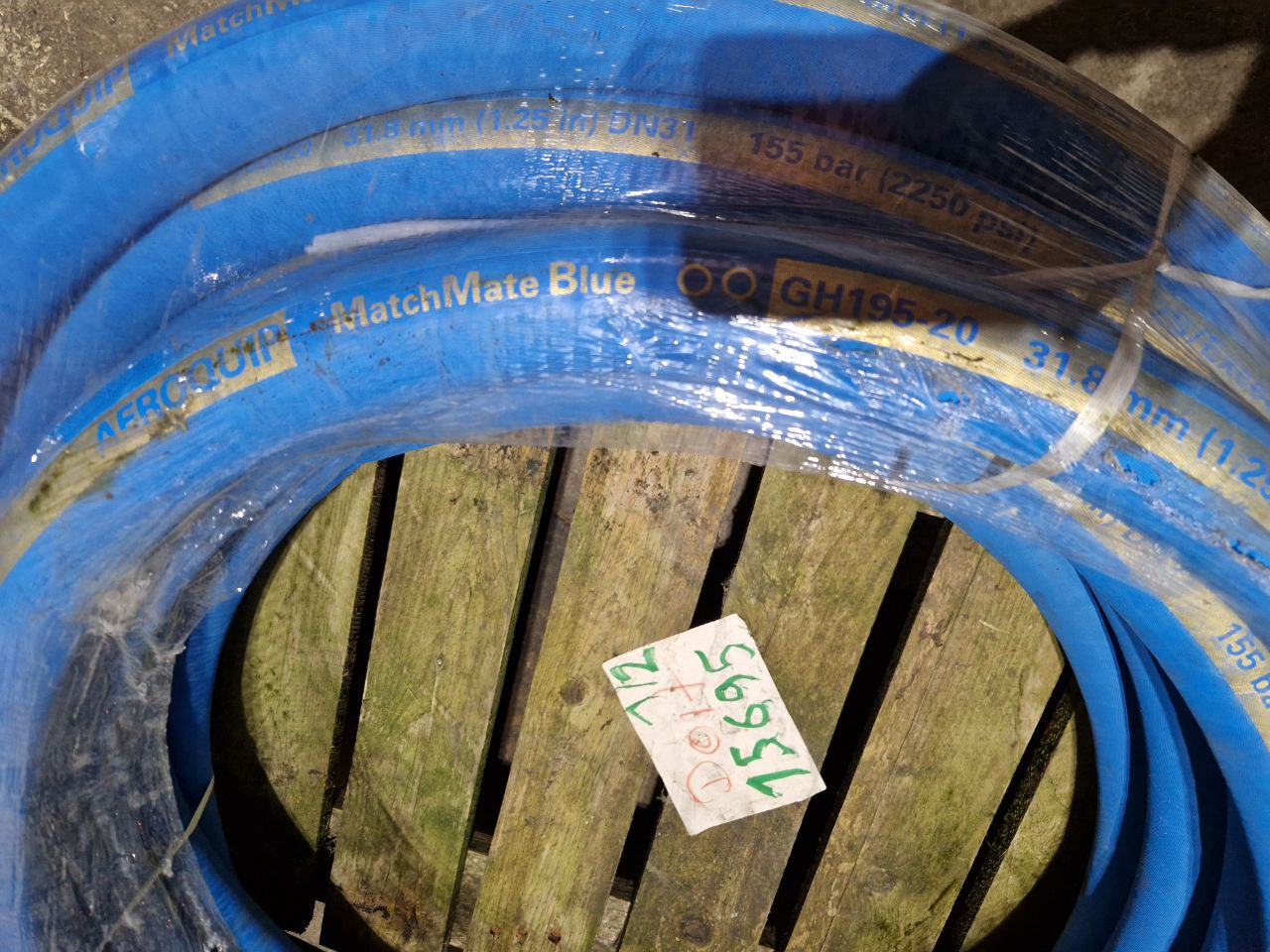

Hydraulic Hoses AEROQUIP® Match Mate Blue GH195 - 20, 5249189, DN 31, 155 bar, 2250psi, 4023 (Request price)

Hydraulic Hoses AEROQUIP® Match Mate Blue GH195 - 20, 5249189  DN 31, 155 bar, 2250psi, 4023  (Request price)

Technical data.
DN:                                        31
Inner Ø mm:                          31,80
Outer Ø mm:                         49,00
Operating pressure bar:      155
Bursting pressure bar:         620
Bending radius mm:            420
Weight approx. kg/m:              2,38
Art. No.:                               40019520

AQP hose. Hydraulic systems with mineral and non-flammable hydraulic fluids, water mixtures, petrol and lubrication systems.

Core:                                        AQP elastomer core
Reinforcement:                        2-strand braid
Sheath:                                    AQP elastomer core, AQP outer sheath
Base material:                          AQP elastomer
Color:                                       Blue
Certification:                            Flammability standard EN 45545-2
Additional information:           Exceeds SAE 100R2 EN 853 2ST, ISO 1436-1 Type 2ST.
Temperature range:                 -40°C to +150°C

Sold by linear meters
Price: Price per 1 meter

Weight:

Price 1.01 = negotiated price

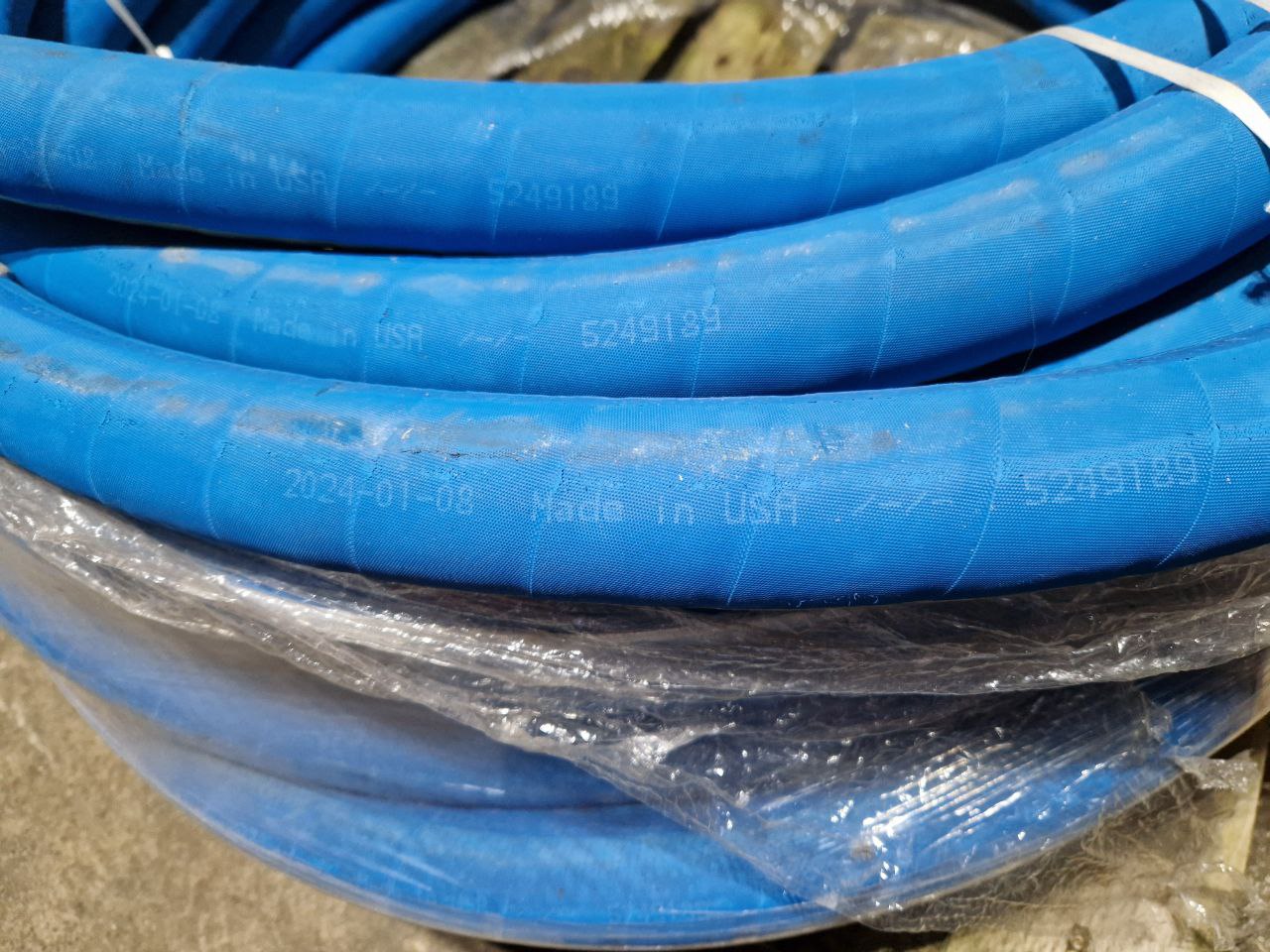

Made in USA.
